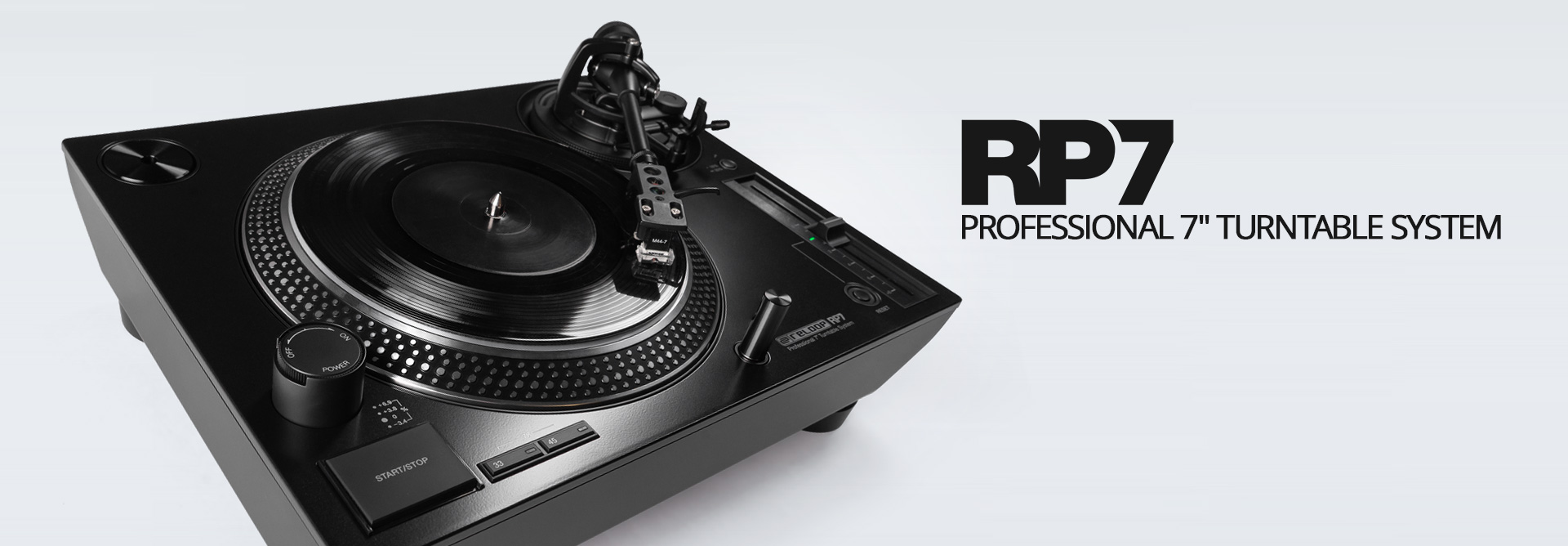

Ως φόρος τιμής στην κουλτούρα των 45αρηδων δίσκων, το Reloop RP-7 αποτυπώνει τη μοναδική γοητεία αυτού του αγαπημένου φορμά και τιμά όσους θεωρούν το βινύλιο των 7 ιντσών κάτι περισσότερο από ένα απλό μέσο μουσικής. Ως το πρώτο επαγγελματικό πικάπ DJ μαζικής παραγωγής για βινύλια 7", το RP-7 ανοίγει νέους δρόμους για αυτή την παθιασμένη κοινότητα, ώστε να εκφραστεί και να εμπνεύσει τις νέες γενιές.

__________________________________________________________________________________________

Features

• Industry-first, series-manufactured, professional 7'' direct-drive DJ turntable system
• Quartz-controlled 7'' turntable with high-torque direct-drive motor
• Exclusively developed for the 45s DJ and vinyl enthusiast scene
• Newly developed brushless DC motor with 2.5 kg/cm torque
• Powerful torque for reliable vinyl cueing and advanced scratching techniques
• Solid construction with a refined chassis and superior tonearm design
• Precision-machined, die-cast aluminium platter
• Finely tuned motor characteristics to minimise wow and flutter
• Height-adjustable VTA tonearm base from the best-selling RP-7000/8000 series
• Straight copper tonearm with internal rubber damping for superior vinyl tracking and minimal resonance
• Statically-balanced, straight tonearm system with hydraulic lift, eliminating the need for anti-skating
• Universal cartridge system connection (SME, headshell cartridges recommended)
• Precise motor control with three speeds (33 1/3, 45 and 78 RPM)
• Clickless tempo fader and adjustable tempo range supporting +/-8 %, +/-16 % or +/-35 %
• Pitch reset toggle button and clearly indicated tempo scale
• Recessed connection terminal for a flush setup
• Gold-plated phono and line output
• Newly developed internal switching power supply to reduce unwanted interference
• Aluminium vinyl puck adapter with recessed storage slot
• Strobe light indicator for all turntable speed settings
• IEC connection with detachable mains and RCA cables
• Detachable and freely rotatable LED needle illuminator in unibody aluminium design
• Robust construction and high-quality finish in deep black metallic
• Incl. turntable platter, vinyl puck, slipmat, slip sheet, LED needle light, counterweight, phono RCA cable with grounding, mains cable and instruction manual, (headshell and cartridge sold separately)

Technical Data

Turntable:

• Type: 3-speed fully manual
• Drive: Direct drive
• Motor: 8-pole, 3-phase, high-torque brushless DC motor
• Speeds: 33 ⅓, 45, 78 RPM
• Pitch: ±8, 16, 35%
• Starting Torque: 2.5 kgf/cm (starting at 78 rpm)
• Start-Up Time: < 1 sec.
• Brake System: Electronic brake

Platter:

• 215 mm dia. die-cast aluminium

Tonarm:

• Type: Static balanced straight-shaped tonearm
• Overhang: 0 mm
• Offset Angle: 9,5°
• VTA setting range: 0 - 6 mm
• Effective Tonearm Length: 164.5 mm
• Wow and Flutter: Less than 0.15% WTD at 3 KHz RMS
• S/N Ratio: More than 75 dB (A-w./20 KHz LPF)
• Applicable Cartridge Weight: 15 ~ 20 g (including headshell)

Connections:

• 1x Phono/Line Out (gold-plated), 1x GND earth connection

General:

• Power Input: AC 100-240 V, 50/60 Hz

• Power Consumption: 3 W

• Dimensions: 350(W) x 270(D) x 139(H) mm

• Weight: 5.7 kg

• Incl. turntable platter, vinyl puck, slipmat, slip sheet, LED needle light, counterweight, phono RCA cable with grounding, mains cable and instruction manual, (headshell and cartridge sold separately)

Instruction Manual (2.04 MB)
Highlights Overview (5.76 MB)
