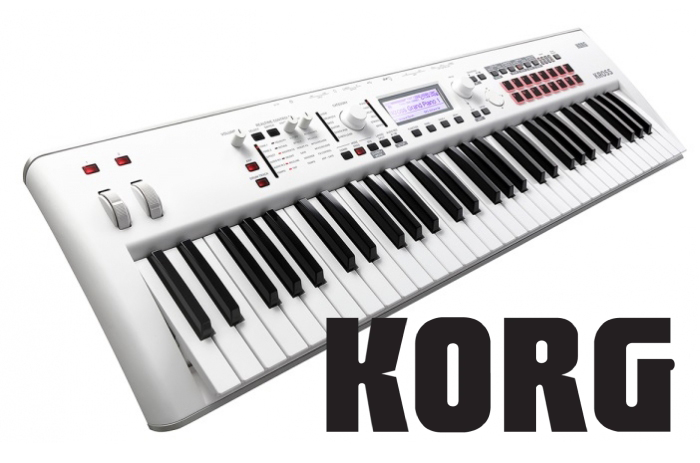

KORG KROSS2-61-WH WORKSTATION 61 KEYS WHITE

Click here for YouTube videos featuring KORG KROSS

_____________________________________________________________________________________________________________________________________________________________________

Keyboard

KROSS 2-61

• 61 keys (velocity sensitive; aftertouch not supported)
• Normally C2–C7(adjustable in the range [C1…C6]–[C3…C8]

KROSS 2-88

• 88 keys NH (Natural weighted hammer action) keyboard (no aftertouch)
• Normally A0–C8 (adjustable in the range [-A-1…C7]–[A1…C9])

* The NH keyboard delivers a playing feel similar to that of an acoustic piano, with low notes being heavier and high notes being lighter.

System

• EDS-i（Enhanced Definition Synthesis - integrated）

Sound Engine

Maximum Polyphony

• 120 voices, single mode
• 60 voices, single mode

* The actual maximum polyphony will vary depending on oscillator settings such as stereo multisamples and velocity crossfading.

Preset PCM Memory

• Approximately 128 MB (calculated as 48 kHz / 16-bit linear PCM data equivalent)
• 496 multisamples (including seven stereo), 1014 drumsamples (including 49 stereo)

Expansion PCM Memory

• Approximately 128MB (*when converted to 48 kHz 16-bit linear PCM

* Used when loading option PCM

Program

Oscillator

• OSC1 (Single), OSC1+2 (Double): Stereo multisamples are supported 4 velocity zones per oscillator, with switching, crossfades and layers.

Filters

• Four types of filter routing (single, serial, parallel, 24 dB)
• Two multi-mode filters per voice (low pass, high pass, band pass, band reject)

Modulation

• For each voice, two envelope generators (Filter & Amp), two LFOs, two key tracking generators (Filter & Amp), and two AMS mixers. In addition, pitch EG, common LFO, and two common key tracking generators

Combination

Timbres

• Up to 16 timbres, switchable via key zone or velocity zone, layer and crossfade supported, Tone Adjust function allows program settings to be offset

Master Keyboard functionality

• These allow you to control external MIDI devices

Drumkits

• Stereo and mono drumsamples. 4-way velocity switches with crossfades and adjustable crossfade shapes (Linear, Power, Layer).

The Number of Combinations/Programs/Drum Kits

User Combinations

• 896 Combinations (384 Preload)

User Programs

• 1280 Programs (768 Preload)

User Drum Kits

• 58 Drum Kits (42 Preload)

Preset Programs

• 265 Programs (256 GM2 Programs + 9 GM2 Drum Programs)

* Total number of preload programs and preset programs：1,075 (810 preload programs, 265 preset programs

*Click here for KROSS 2-88-MB.

Favorites

Number of memories

• 128 (16 favorites × 8 banks)

Effects

Insert effect

• ts5 Insert Effects In-line processing; stereo in - stereo out.

Master effects

• 2 Master Effects Two effects sends; stereo in - stereo out.

Effects types

• Total of 134 types (select from 74 types for insert effects, 101 types of master effect 1, and 120 types for master effect 2)

Modulation

• Dynamic Modulation

Effects Control Bus

• Stereo side-chaining for limiter, gates, vocoders, etc.

Polyphonic arpeggiators

Program mode

• One arpeggiator

Combination mode

• Two arpeggiators

Sequencer modes

• Two arpeggiators

Preset arpeggio patterns

• UP, DOWN, ALT1, ALT2, RANDOM
• User arpeggio patterns
• Number of arpeggio patterns: 1280 (1024 preload)
• Number of tones: 12 tones,
• Number of steps: up to 64 steps

Step sequencer

Program mode/Combination mode/Sequencer mode

• One unit
• Number of tones: 12 tones + 1 accent tone
• Number of steps: up to 64 steps

* Can be created for each program, combination, and song.

Drum Track

Preset Patterns

• 772 patterns (Held in common with sequencer patterns.)

Other

• Trigger Mode / Sync / Zone settings can be specified

Sequencer

Tracks

• 16MIDI Tracks

Number of Songs

• Up to 128 songs

Resolution

• 1/480

Tempo

• 40.00–300.00 (1/100 BPM resolution)

Maximum Memory

• Up to 210,000 MIDI events

Counter

• Measure/Beat/Tick

Template Song

• 16 preset/16 user template songs

Preset Patterns

• 772 patterns (shared with Drum Track patterns)

Format

• KORG (KROSS) format, SMF format 0 and 1

Pad sampler

Specifications

• 16 pads × 8 banks
• Automatically saved on the SD card, and automatically loaded
• Up to four pads can play simultaneously

Recording format

• PCM audio format 48 kHz/16-bit

Recording time

• Up to approximately 14 seconds of stereo sample for each pad

Import

• WAVE format, file name extension: .wav, 44.1 kHz/16-bit, 48 kHz/16-bit, stereo

* 44.1 kHz is automatically converted to 48 kHz/i>

Edit

• Waveform display editing functionality, start address and looping settings etc., normalize and other editing operations

Audio Recorder

Recording Format

• PCM audio format 48kHz/16bit

Import

• WAVE format (file name extension: wav ) 44.1kHz/16bit, 48kHz/16bit stereo

* 44.1 kHz is automatically converted to 48 kHz/i>

Export

• WAVE format (file name extension: .wav) 48kHz/16bit, stereo

Recording Time

• Maximum continuous recording time: 3 hours
• Depends on the SD card used; approximately 90 minutes per 1 GB

Number of Songs

• Up to 200 songs

Number of overdub recordings

• Depends on the remaining capacity of the SD card

Counter

• Hour/Min/Sec

Pad audio play

• 16 pads × 8 banks
• Directly play back data from SD card
• Multiple pads cannot be played simultaneously

Media

• File, Utility, Information, additional PCM data management functionality

Controllers

General Control

• Pitch bend wheel, Modulation wheel, SW1, SW2

Realtime Control

• SELECT button, SWITCH button, KNOB1 knob, KNOB2 knob

Step Sequencer/Favorite/Pad Sampler/Pad Audio Play

• Pads 1–16
• STEP SEQ ACTIVE button, Run button
• FAVORITES ACTIVE button
• SAMPLER ACTIVE button, HOLD button
• AUDIO PLAY ACTIVE button
• BANK LEDA/B/C/D/E/F/G/H (also used by Step sequencer, Favorite, Pad Sampler, and Pad Audio Play)

Drum Track

• DRUM TRACK button

Arpeggiator

• ARP button

Audio Recorder

• AUDIO REC button

User Interface

Display

• 240 × 64 pixel LCD backlight
• Adjustable contrast (hold the EXIT button and turn the VALUE dial)

Category

• CATEGORY dial, VALUE dial

MODE

• COMBI button, PROG button, SEQ (GLOBAL/MEDIA) button

Value Controllers

• Cursor buttons, EXIT,ENTER, FUNCTION, PAGE-, PAGE+, MENU buttons

Sequencer

• REC button, START/STOP button

Quick Layer Split

• LAYER/SPLIT button

Other

• VOLUME knob

Control Input

• DAMPER (Supports piano-style half-damper pedals as well as standard foot switches)
• ASSIGNABLE SWITCH
• ASSIGNABLE PEDAL

Audio Outputs (Analog)

AUDIO OUTPUT L/MONO, R

• Connectors: 6.3 mm (1/4") phone jacks(TS unbalanced)
• Output Impedance: 1.1k ohm stereo, 550 ohm mono (L/Mono only)
• Maximum Level: +10.0 dBu
• Load Impedance: 10k ohm or greater
• Controllable by the VOLUME knob

HEADPHONE OUTPUT

• Connectors: 3.5mm (1/8") stereo mini phone jack
• Output Impedance: 33 ohnm
• Maximum Level: 40 + 40 mW
• Controllable by the VOLUME knob

Audio Inputs (Analog)

LINE IN

• Connectors: 3.5 mm (1/8") stereo mini phone jack
• Input Impedance: 1.1k ohm
• Maximum Input Level: -42 to 0 dBu

MIC IN

• Connectors: 6.3 mm (1/4") phone jacks(TS unbalanced)
• Input Impedance: 33 ohm
• Maximum Input Level: -48 to -6dBu
• Phantom power or plug-in power is not supported.

Others

MIDI

• IN, OUT

USB

• USB connector TYPE B x 1, USB-MIDI interface, USB audio interface

SD Card Slot

• One card slat

* Capacity recognized: SD memory cards up to 2 Gigabytes (GB). SDHC memory cards up to 32 Gigabytes (GB). SDXC memory cards are not supported.

Main Specifications

Power

• AC adaptor power supply DC 9V
• AA alkaline batteries x 6, or nickel-metal hydride batteries x 6

Battery Life

• AA alkaline batteries x 6: Approximately 6 hours
• AA nickel-metal hydride batteries (1900mAh) x 6: Approximately 7 hours

* Varies depending on the batteries used and the conditions of use.

Power Consumption

• 5 W

Dimensions (W x D x H)

• KROSS2-61: 935 mm × 269 mm x 88 mm / 36.81" × 10.59" × 3.46"
• KROSS2-88 1,448 mm × 383 mm × 136 mm / 57.01" × 15.08" × 5.35"

Weight

• KROSS2-61: 3.8 kg / 8.38 lbs (excluding batteries)
• KROSS2-88: 12.3 kg / 27.12 lbs (excluding batteries)
