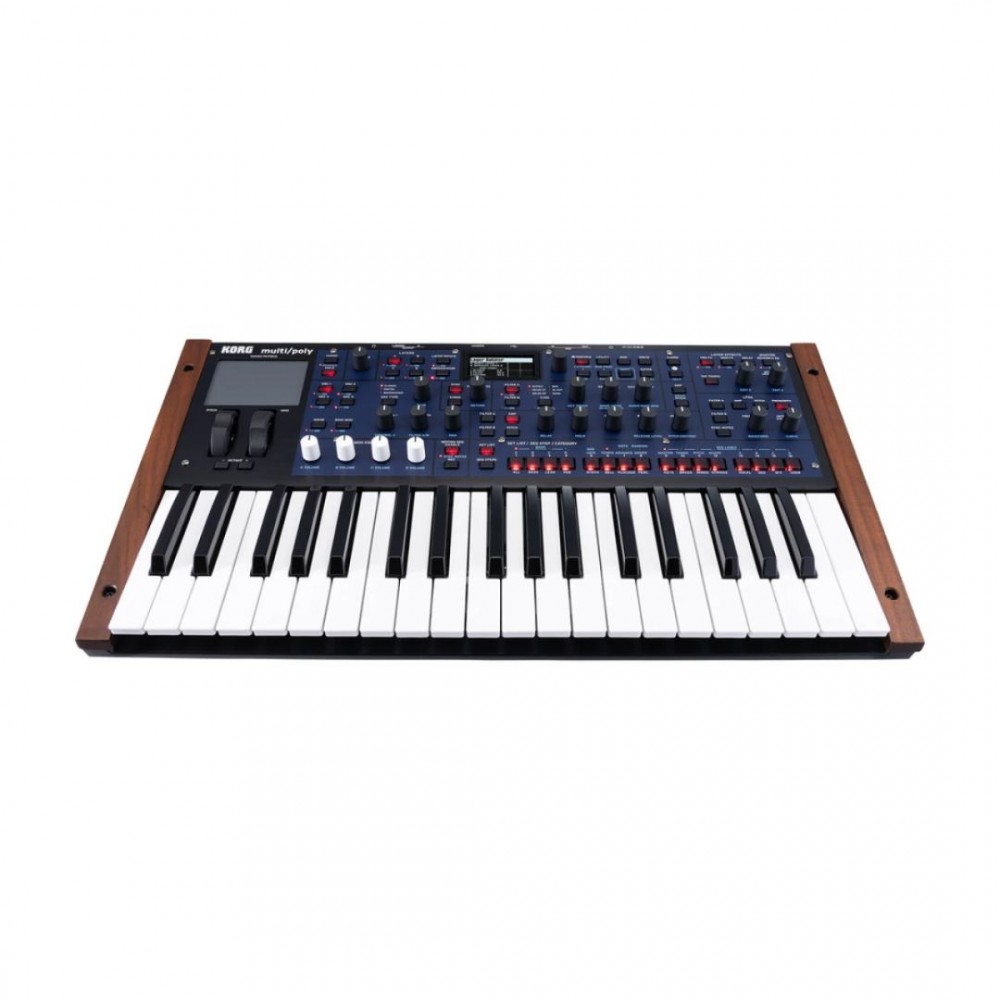

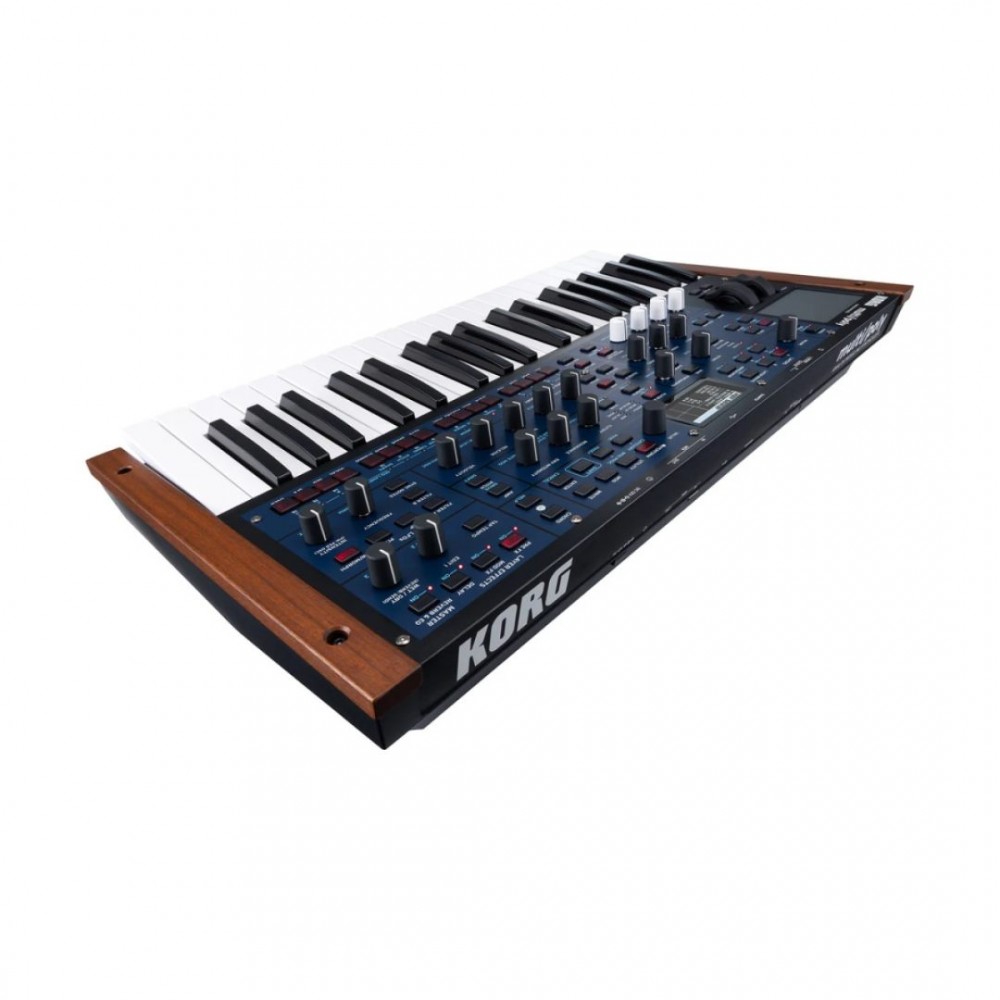

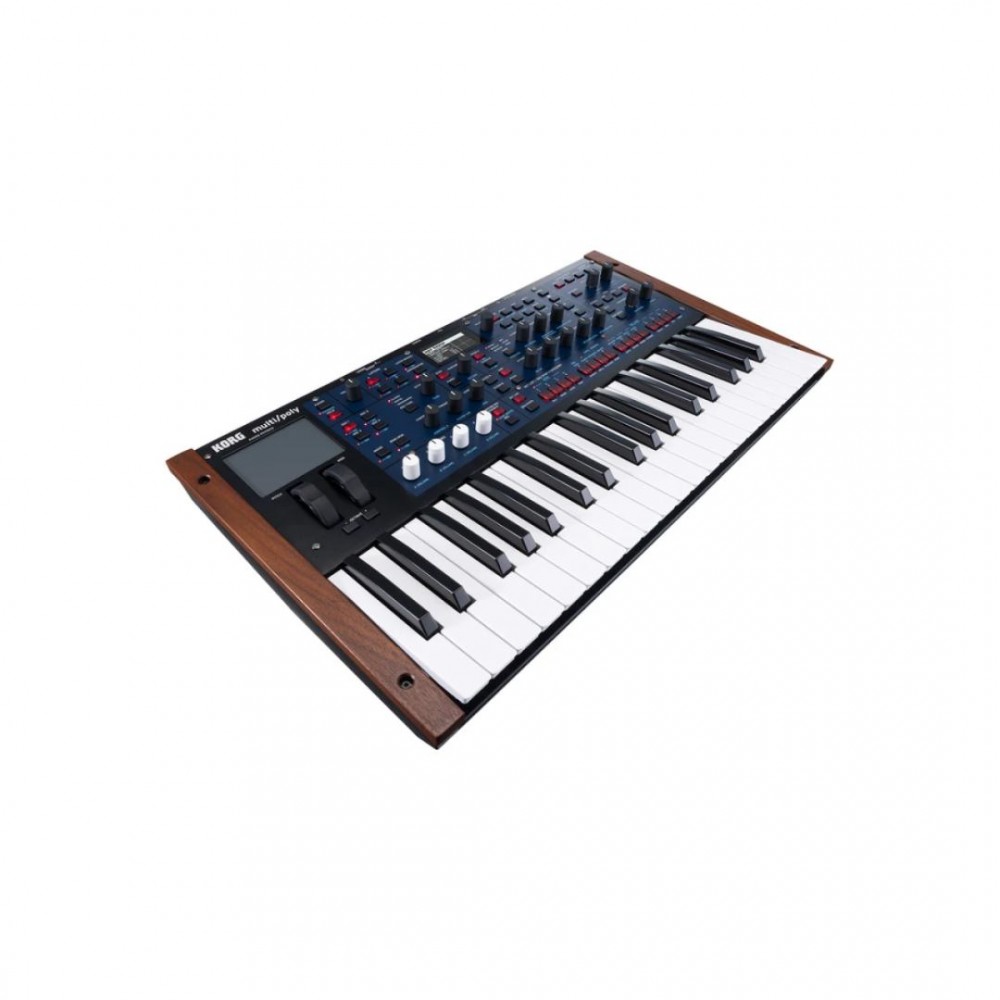

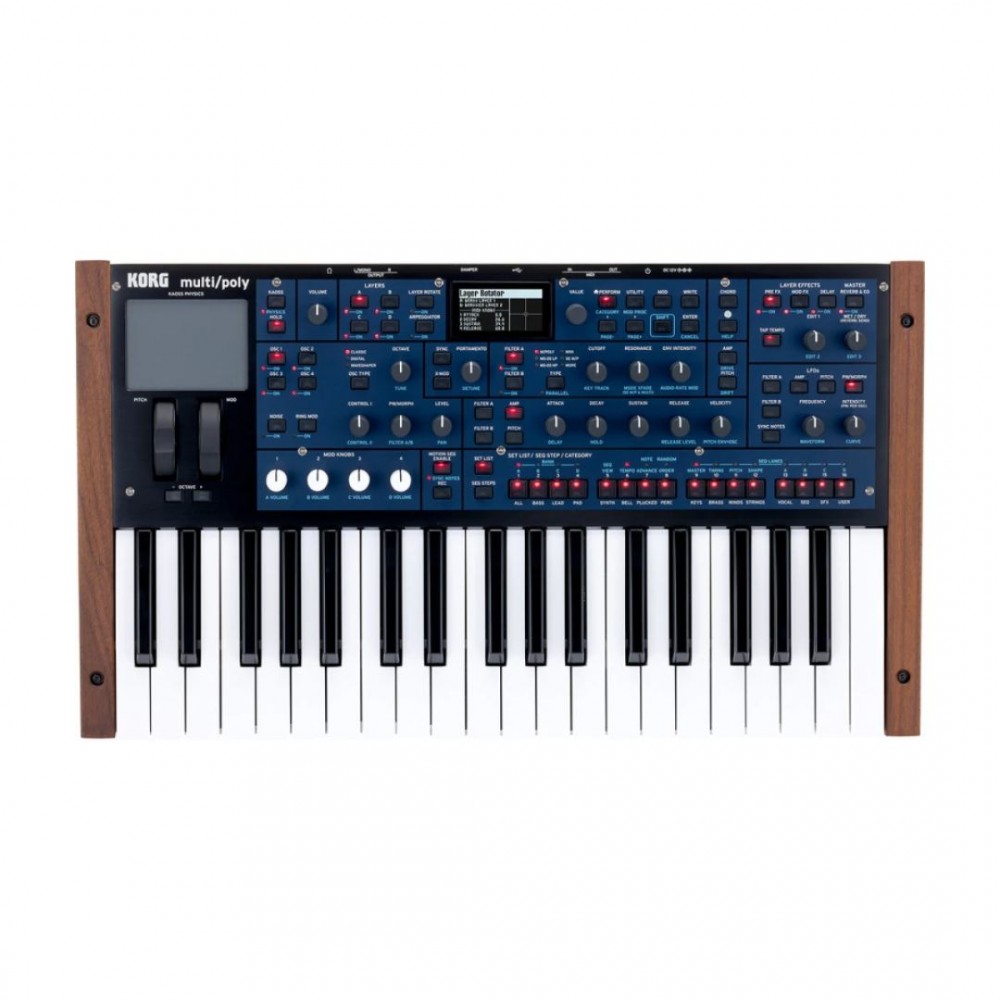

KORG MULTIPOLY ANALOG MODELING SYNTHESIZER

• Adat No
• Aftertouch No
• Arpeggiator No
• Audio Input No
• Depth (cm) 31
• Display Yes
• Effects Processor  No
• Expression Pedal Connection  No
• Headphones 1
• Height (cm)  9.3
• Keyboard Size Natural Size
• Keyboard Type Soft
• Line input No
• Line out 2
• Midi Yes
• Number of Keys 37
• Optical No
• Pitchbend Wheel
• Polyphony 60 Voices
• Power Supply type External Pack
• Recorder/Sequencer No
• Sampler  No
• Speakers (y/n)  No
• Type VIRTUAL ANALOG
• Usb Yes
• Vocal Processor No
• Vocoder  No
• Width (cm) 56
• Βάρος (Kg) 3.5
• Κατασκευαστής KORG
• Κατηγορία SYNTHS-MIDI KEYBOARDS-CONTROLLERS
• Μήνες Εγγύησης 12

_______________________________________________________________

_____________________________________________________________________________________________________________

System

Keyboard

• 37 key semi-weighted (velocity and release-velocity sensitive)

Maximum Polyphony

• 60 voices (varies depending on settings)

Sound generating system

• Analog modeling synthesis

Modulation

Controllers

• Mod Wheel, Pitch Wheel, Kaoss Physics, 4x Mod Knobs

Other Sources

• 4x Envelopes, 5x LFOs, 8x Mod Processors, 3x Key Track, Seq Lanes A-D, Step Pulse, Step Pitch, Motion Seq On, Kaoss (X, Y, Distance, Angle, X+, X-, Y+, and Y-), Tempo, Program/Performance Note Count, Program/Performance Voice Count, Random (1+, 2+, 3 +/-, and 4 +/-), Constant Max, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate, Gate+Damper, Note-On Trigger, Note-On Trigger+Damper, Note Number, Aftertouch and Poly Aftertouch (external MIDI only), Pitch Bend (normal, +, and -), MIDI CCs +/-, MIDI CCs +

Destinations

• Most parameters can be modulated, with over 5,500 potential modulation targets per Performance.

Effects

Pre FX

• Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper, Vintage Distortion

Mod FX

• Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah, CX-3 Rotary Speaker

Delay

• L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo

Master Reverb

• Early Reflections, OverbMaster EQ4-band parametric EQ

General

Inputs/outputs

• Headphone (6.3 mm stereo phone jack), OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks), DAMPER (6.3 mm phone jack, half-damper not supported), MIDI IN and OUT connectors, USB B port

Power supply

• AC adapter (DC12V, 2500mA)

Power consumption

• 5W

Dimensions (W × D × H)

• 566 x 319 x 93 mm/22.28” × 12.56” × 3.66”

Weight

• 3.5 kg/7.72 lb

Included items

• AC adapter, Soft case

Accessories (sold separately)

• DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch
