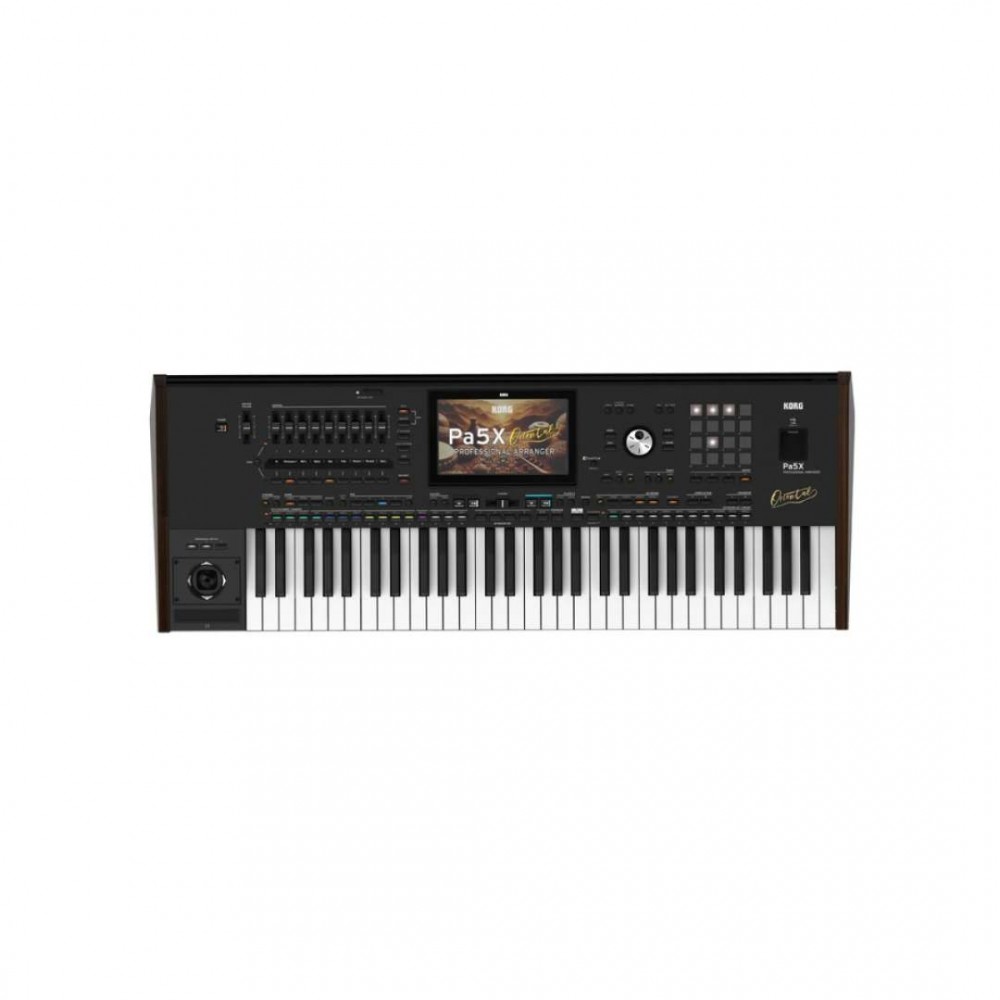

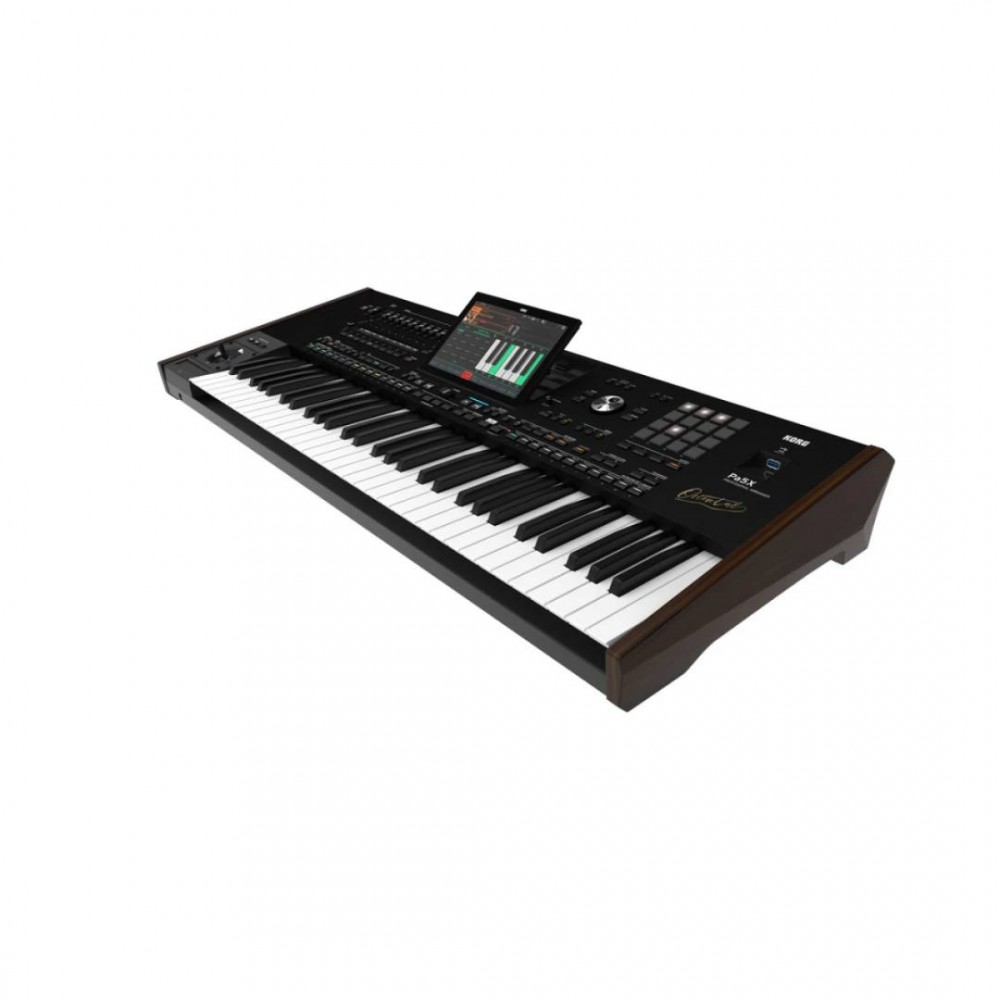

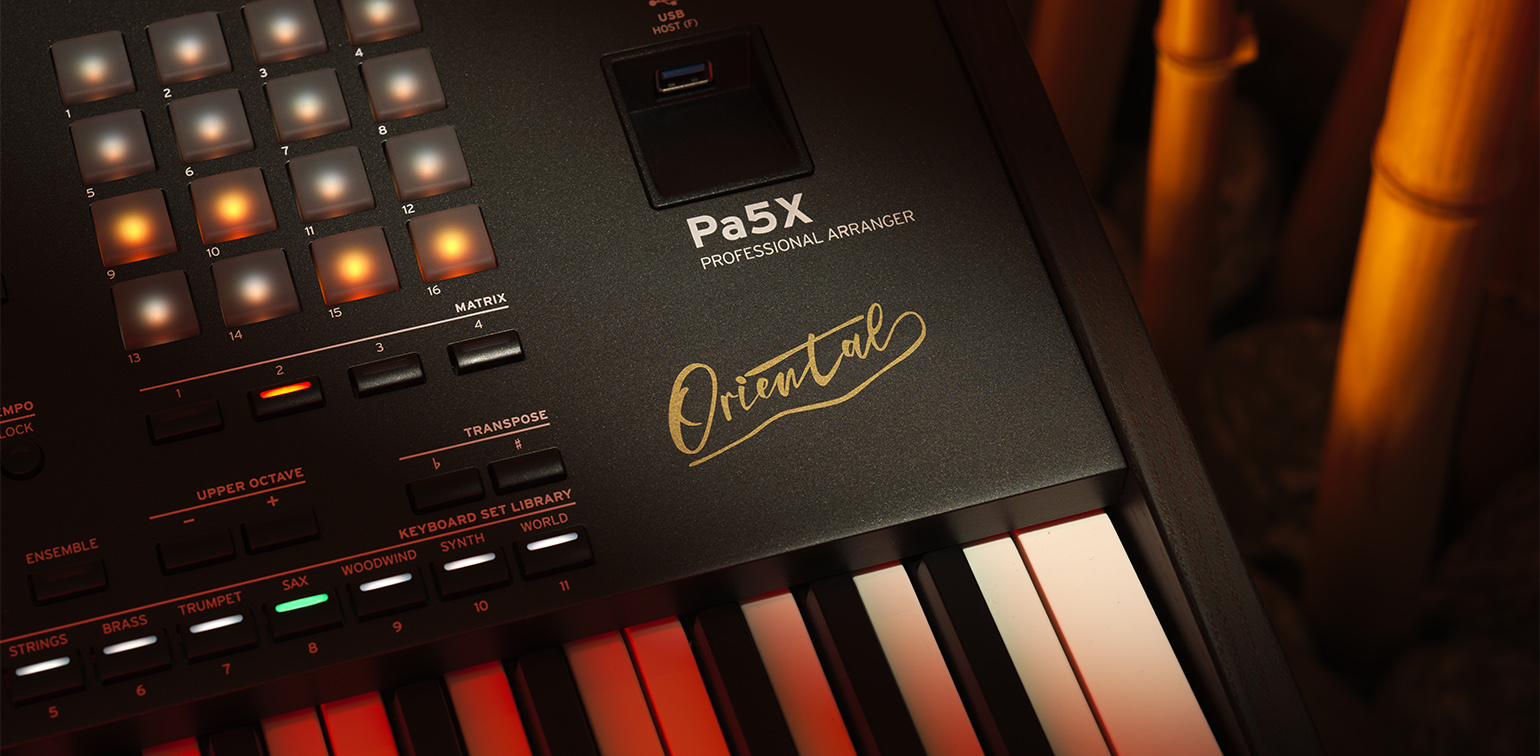

KORG PA5X 61 ORT ARRANGER / ΑΡΜΟΝΙΟ 61 KEYS ORIENTAL

Επαγγελματικό arranger νέας γενιάς με 61 δυναμικά πλήκτρα και ενσωματωμένη Rom που περιλαμβάνει Oriental ήχους και ρυθμούς.

________________________________________________________________________________

Keyboard

• Pa5X 61: 61 keys (C2 – C7) Semi–weighted keys with Aftertouch
• Pa5X 76: 76 keys (E1 – G7) Semi–weighted keys with Aftertouch

Case

• Aluminum case with wooden side panels

Operating System

• Upgradable Operating System

Sound Generator

• EDS-XP (Enhanced Definition Synthesis-Expanded)
• Multimode filters with resonance, 3-band EQ for each track

Polyphony

• 160 Voices, 160 Oscillators

Effects

• Keyboard Tracks: 3 Insert Effect; 3 Master Effects
• Style/Song: 10 Insert Effects; 3 Master Effects
• Master EQ and Finalizer for Songs and Styles
• Final Mastering Effects: Waves MaxxAudio®

Mic Processor Technology by Shift Audio

• Mic Setup: Compressor, EQ, Gate
• Four-part Harmonizer, Doubler, Filter, Modulation, Delay, Reverb, AutoPitch

Guitar Processor

• Guitar rack (4 effect-slots) with stompbox and amp simulation

Sounds / Drum Kits

• Factory: More than 2,600 Factory Sounds in total
• Five multilayer Stereo Acoustic Pianos with Damper/Body Resonance, GM/XG Sound Sets, close to 200 Drum Kits including Ambient Drums and
• Round Robin-based Drum Kits
• User Area: 768 Sounds, 384 Drum Kits
• Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage, Vibrato/Chorus, Rotary Speaker with Amp Simulator
• Natural Ambience Drum Sounds, Round Robin features
• Defined Nuance Control (DNC) Technology
• Quick and Full Sound Editing, Drum Family and Full Drum Kit Editing

Sampling

• User PCM Sample memory: 4 GB of data, equivalent to 8 GB linear when compressed
• Loads KORG, WAV, AIFF and SoundFont™ formats
• Saves KORG, WAV and AIFF formats
• Full Edit, Time Slice, Sampling features

Keyboard Sets

• Factory: More than 650 Factory Keyboard Sets, freely programmable
• Combines four Keyboard Sounds, plus Effects and settings
• Library accessible from front-panel buttons
• “My Setting” special Keyboard Set

Players

• Patented XDS Crossfade Dual Player with X-Fader Balance control
• Crossfading between Songs and/or Styles

Styles

• Factory: More than 940 Factory Styles, freely programmable
• Eight Style Tracks, 4 Keyboard Sets and 4 Pads per Style; Programmable Sounds, Effects and Style parameters
• Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
• Style Record and Event Edit
• Style Elements: 3 Intros, 4 Variations, 4 Fills, 1 Break, 3 Endings
• Style Controls: Play/Stop, Synchro Start, Synchro Stop, Tap Tempo/Reset, Auto Fill, Memory, Bass Inversion, Manual Bass, Bass & Lower
• Backing, Drum & Bass, Individual Style Tracks Mute, Style to Keyboard Set Set

Chord Sequencer

• Factory: More than 200 Chord Sequences
• Chord Sequence Recorder/Player
• Chord Sequences can be saved to Style and SongBook Entries

Songs

• Patented XDS Crossfade Dual Player with X-Fader Balance control
• Supported formats: MID, KAR, MP3 + Lyrics, MP3+G
• Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
• Markers with Add, Delete, Edit, Loop and AutoScroll functions
• Jukebox function
• Full-featured, 16-track Sequencer, Song Edit

MP3 Player / Recorder

• Double MP3 Player and MP3 Recorder
• Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Matrix, Microphone, Guitar, Effects
• Transpose (+6/-5 semitones), Tempo Change (±30%)
• Vocal Remover

SongBook

• Fully programmable music database based on Styles, MIDI Songs (MID and KAR files), MP3 Songs with Artist and Genre tags
• Filtering and sorting options
• User definable Set Lists

Compatibility

• Legacy Pa-Series models: Styles, Keyboard Sets (Performances), Sounds (Programs), Songs, Pads

Pads

• Factory: More than 970 Pads
• Four Assignable Pads + Stop Buttons
• Pad Record function

Control Section

• 9 Assignable Sliders, 9 Assignable Buttons, Strip Display; 4 Preset + 1 User settings

Matrix Section

• 16 Matrix Pads, 4 Preset buttons

Style/Song Controls

• Play/Stop, Go To Start, Style Select, Song Select, Xfader, Tempo +/-, Tempo Lock, Tap Tempo/Reset, Synchro Start, Synchro Stop, Fade In/Out,
• Chord Scan (Lower, Upper), Chord Sequence, Memory, AutoFill

General Controls

• Master Volume, Octave Transpose, Master Transpose, Dial, Up/+, Down/-, Joystick (Pitch + Modulation), Ribbon, 3 Assignable Switches, Search, Shift, Keyboard Sounds On/Off, Split, Ensemble, Rec/Edit, Menu, Exit

Scale Controls

• On-screen Quarter Tone and Arabic Scale, memorized in the Keyboard Sets; Presets assignable to any button or footswitch

Control Inputs

• Damper Pedal; supports half-pedaling with the optional KORG DS-1H pedal 2 Assignable Pedal/Footswitch

Audio Inputs

• Mic: Mono with Gain control and Phantom Power (Combo XLR, balanced)
• Guitar: Mono with Gain control (1/4" jack, unbalanced)
• Line 1: Left/Right (1/4" jacks, balanced)
• Line 2: Stereo (1/8" mini-jack, unbalanced)

Audio Outputs

• Line: Main Left/Right, Separate Outs 1/2/3/4 (1/4" jacks, balanced)
• Headphones (1/4" jack)

Video Output

• HDMI connector

MIDI

• IN, OUT, THRU standard MIDI connectors
• USB to MIDI, through the USB Device port
• 16 User-definable MIDI Presets

USB

• Type A (Host 3.0, for storage devices and controllers): 1 front, 2 rear
• Type B (Device 2.0, for personal computers and tablets): 1 rear

Storage

• Internal Drive: 1 GB
• Micro SD Card (not included): Rear-panel slot with plastic cover
• USB Flash Drive (not included): Can be connected to the USB Host ports

Display

• 8" Wide capacitive color TouchView™ TFT display, 800 x 480 resolution

Clock

• Internal System Clock

Power Consumption

• 100-240 Volts, 50/60 Hz
• < 0.2 Watt in standby / 20 Watt normal / 45 Watt with PaAS installed

Dimensions (W x D x H) (without music stand, display fully lowered)

• Pa5X-76: 1,233.1 x 374.3 x 126.8 mm / 48.54" x 14.73" x 4.99"
• Pa5X-61: 1,021.1 x 374.3 x 126.8 mm / 40.20" x 14.73" x 4.99"

Weight

• Pa5X-76: 17.4 kg / 38.36 lbs
• Pa5X-61: 15.1 kg / 33.29 lbs

Accessories

• AC Power Cable, Music Stand, Quick Guide manual

Options

• PaAS MK2 Amplification System
• ST-SV1-BK Keyboard Stand
• EXP-2 Foot Controller
• XVP-20 Expression/Volume Pedal
• DS-1H Damper Pedal (supports half-pedaling)
• PS-1 Pedal Switch
• PS-3 Pedal Switch

• VOX V860 Volume Pedal
