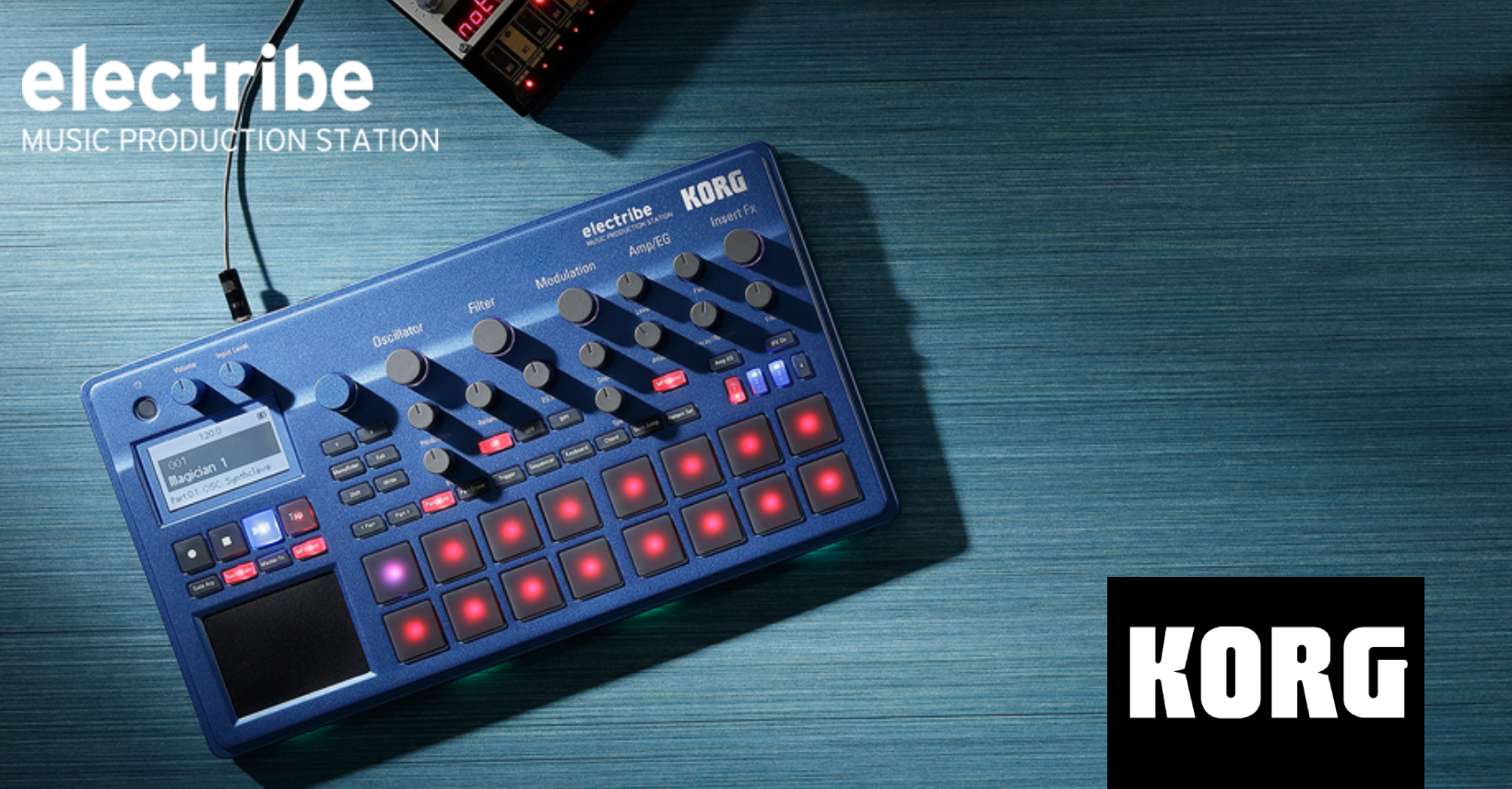

KORG ELECTRIBE 2 GROOVE SYNTH MODULE BLUE

The fastest and most intuitive way to make beats.
A production machine with a variety of analog modeling sound engines.

___________________________________________________________________________________________________

Specifications

Sound System

Type

• Analog modeling sound engine + PCM sound engine

Maximum Polyphony

• 24 voices

* The polyphony of the entire pattern varies depending on the Oscillator, Filter, and Insert Fx type.

* Independent parameters for each voice have been simplified; four voices share the parameters of one conventional voice.

Oscillator

• Type (409), Pitch/Glide, Edit

Oscillator Types

• Kick (56), Snare (58), Clap (16), HiHat (42), Cymbal (14), Tom (16), Percussion (55), Voice (16), Synth FX (18), Synth Hit (18), Inst Hit (16), Synth (55), Instrument (28), Audio In (1)

Filter

• Filter (Cutoff), Resonance, EG Int, LPF/HPF/BPF (16)

Modulation

• Type (72), Depth, Speed

Amp/Envelope Generator

• Level, Pan, Attack, Decay/Release, Amp EG On/Off

Scale Types

• 35

Gate Arpeggiator Types

• 50

Sampling Frequency

• 48 kHz

AD/DA Conversion

• 24 bit

Effect

Insert Effect

• One unit (can be used on each of the 16 parts)
• Type (38), Edit, Insert FX On/Off

Master Effect

• One unit

• Type (32), Touch Pad, Master FX On/Off, Master FX Hold On/Off

Sequencer

Number of Steps

• 16 steps x 4

Number of Parts

• 16 parts

(one part consists of a sound, steps, insert effect, modulation sequence, etc)

Number of Patterns

• 250 patterns (200 Presets / 50 Initial)

(one pattern consists of parts, master effect, key, scale setting, etc)

Motion Sequences

• Up to 24 motion sequences can be stored (for each pattern)

Groove Types

• 25

Pattern Set

• Up to 64 patterns can be stored

Pattern Chain

• Up to 250 patterns can be chained

Export

• Ableton Live project file format, WAV file format (48 kHz, 16 bit)

Event Recording

• Up to 100 files can be saved

Trigger Pads

Number of Pads

• 16 pads (Velocity sensitive)

Modes

• Trigger, Sequencer, Keyboard, Chord, Step Jump, Pattern Set

Touch Pad

Modes

• Gate Arp, Touch Scale, Master FX

Connectors

Audio

• L/Mono, R Output (Standard phone jack)
• Headphones (Stereo mini jack)

• Audio Input (Stereo mini jack)

MIDI

• In, Out (Use an included MIDI adapter cable)

USB

• Type micro B

Sync

• In, Out (Stereo mini jack)

External Storage Device

• SD Card (512 MB -- 2 GB), SDHC Card (Up to 32 GB)

Power

Power Supply

• AC adapter (DC 9V) or AA battery x 6 (Alkaline battery or Nickel metal hydride battery)

Battery Life

• Approximately 5 hours (Power Saving: ON, with Nickel metal hydride battery)

Current Consumption

• Less than 500 mA

Chassis

• Zinc die cast

Dimensions (W x D x H)

• 339 x 189 x 45 mm / 13.35” x 7.44” x 1.77”

Weight

• 1.6 kg / 3.53 lbs

Color Variations

• Metallic Blue (electribe2-BL), Gray (electribe2)

Included Items

• AC adapter (DC9V), MIDI adapter cable x 2, Ableton Live 9 lite (License card included)

Accessories

• Sync Cables SQ-CABLE-6
• Gig Bag DJ-GB-1
