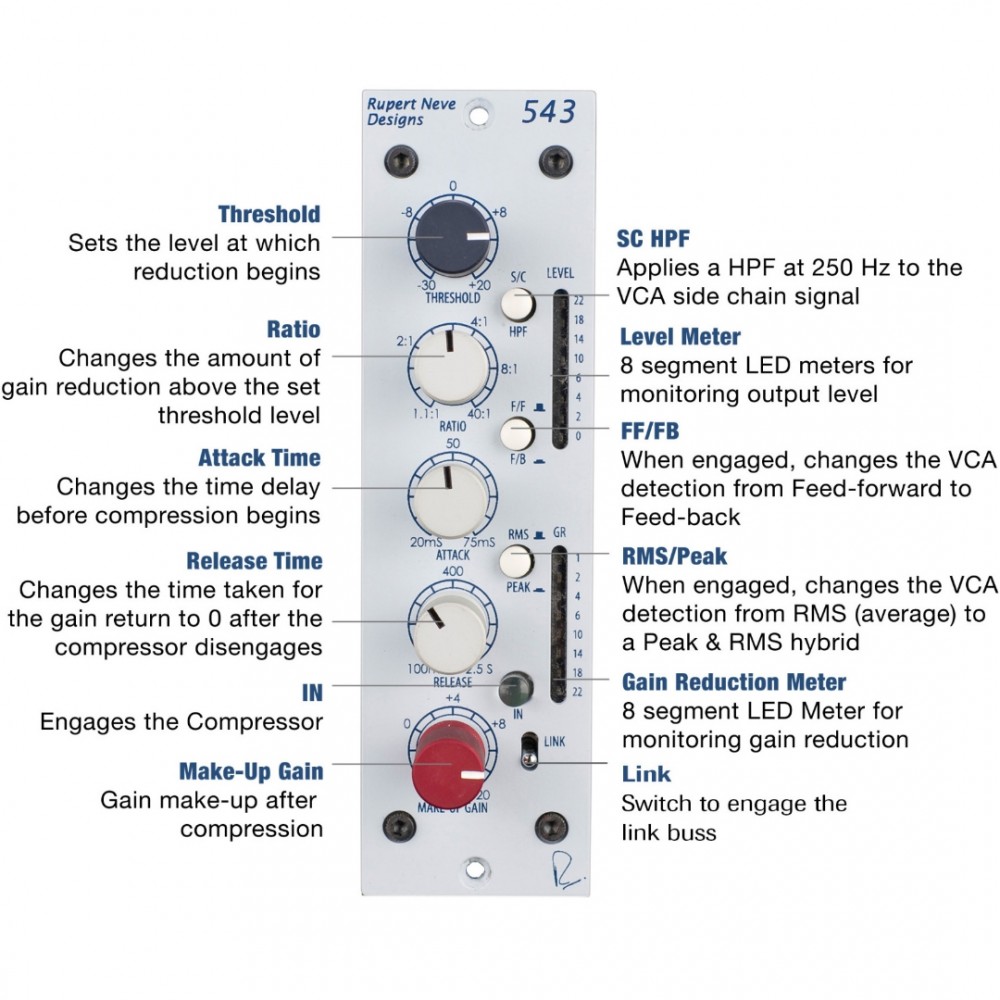

RUPERT NEVE DESIGNS 543 (Series 500) Compressor Limiter
RUPERT NEVE DESIGNS 543 (Series 500) Compressor Limiter
RUPERT NEVE DESIGNS 543 (Series 500) Compressor Limiter
RUPERT NEVE DESIGNS 543 (Series 500) Compressor Limiter
Κατασκευαστής: Rupert Neve Designs
Διαθεσιμότητα: Κατόπιν Παραγγελίας
€1.095,00
Compressor Limiter (500 series module)

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription
  • Preamplification: stepless from 6 dB to +20 dB
  • Threshold range: stepless from 36 dB to + 22 dB
  • Ratio range: stepless from thomann 1.1: 1 to limit (40: 1)
  • Attack range: stepless from 20 mS to 75 ms
  • Release range: infinitely variable from 100 ms to 2.5 seconds
  • FF / FB: Feed-Forward or Feed-Back VCA control
  • Maximum output level: balanced and floating transformer output
  • Max. Output from 20 Hz to 40 kHz is +23 dBu
  • Total Harmonic Distortion and Noise: @ 1 kHz
  • +20 dBu output level
  • No load
  • Main Output, compressor bypassed: better than 0.0006%
  • Main Output, compressor activated: better than 0.02%
  • Noise: measured at the main output
  • Unweighted
  • 22 Hz-22 kHz
  • Terminated 40 Ohms
  • Frequency range: Main output
  • Unity Gain @ 18 Hz
  • +/- 3 dB. @ 150 kHz 3 dB
  • Crosstalk measured channel to channel: 90 dB @ 15 kHz
  • Monitor INPUT LEVEL and GAIN REDUCTION
  • Construction: API Series 500 rack format
