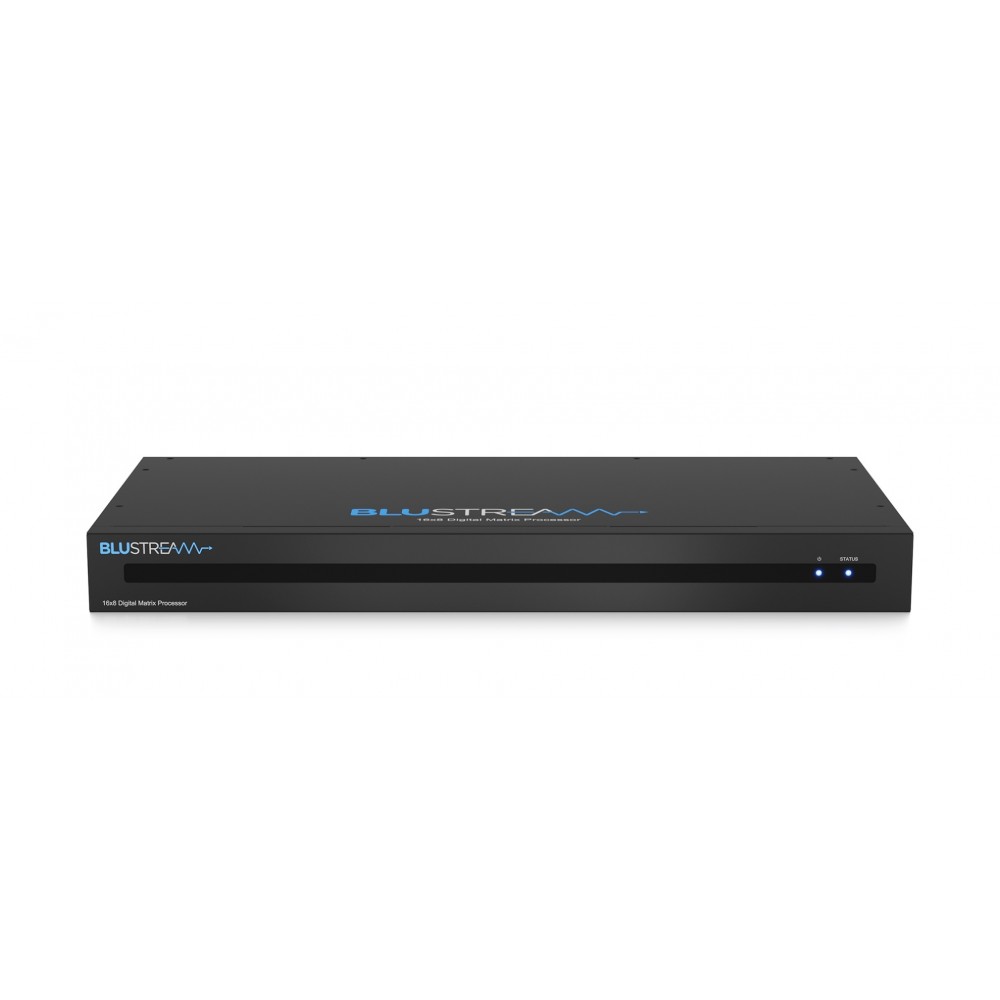

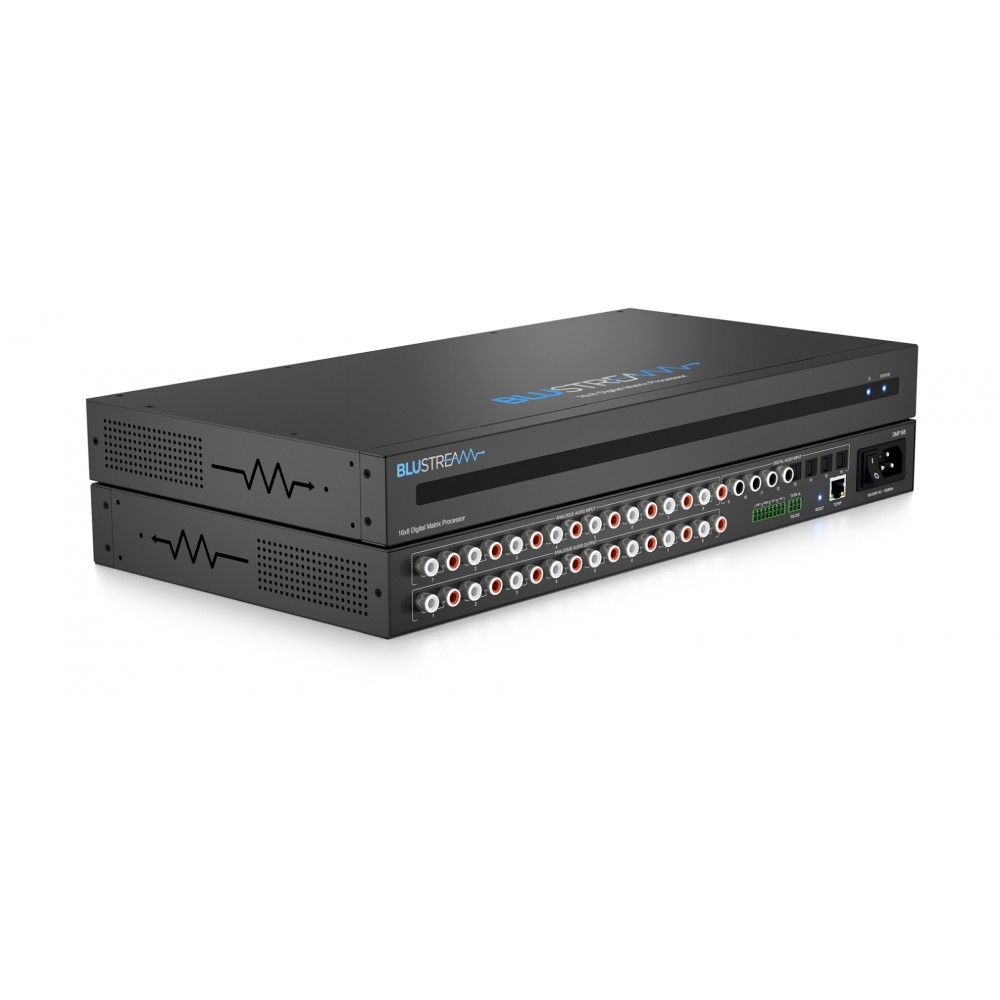

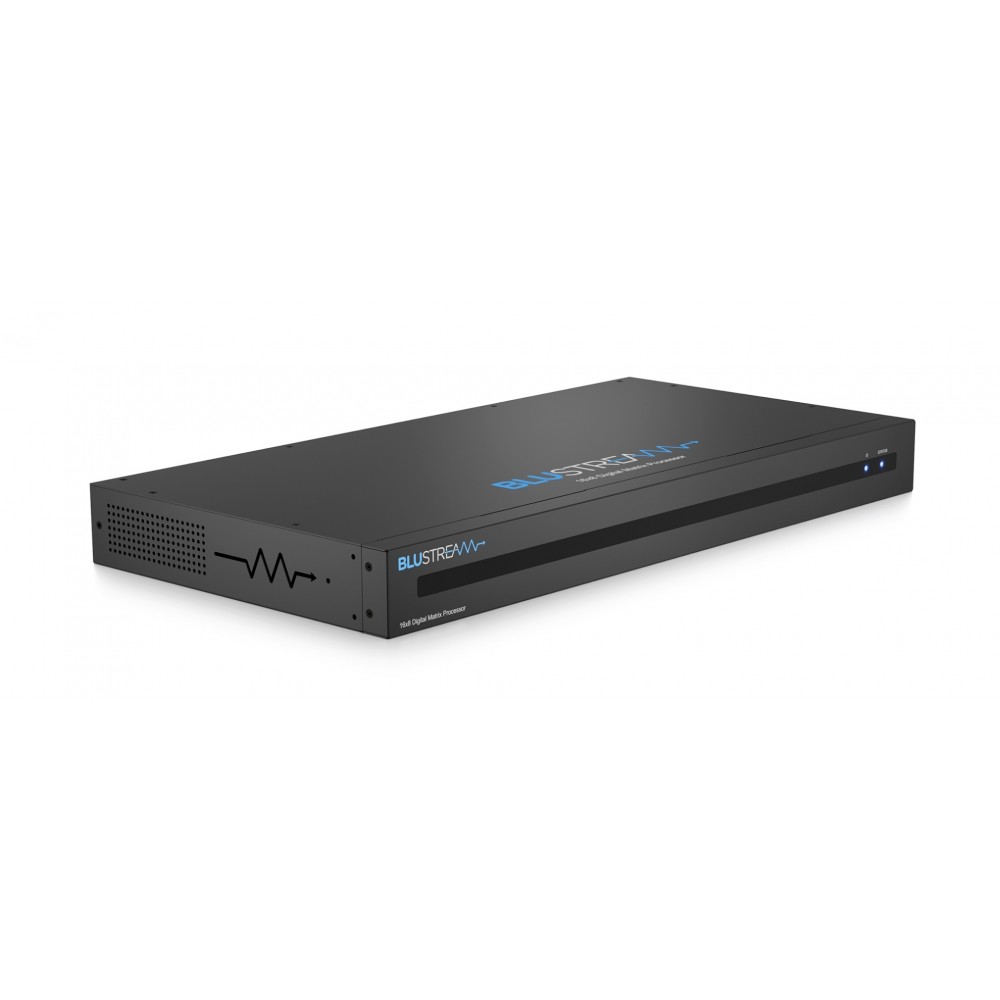

BLUSTREAM DMP168-16x8 Digital Audio Matrix Processor

_____________________________________________________________________________________________________________________________________________

KEY FEATURES

• Features 8 x analogue L/R inputs, 4 x digital coaxial inputs, and 4 x digital optical inputs which can be switched to 8 x analogue L/R outputs
• Supports separation (mono) of all audio channels and independent control resulting in switching of up to 32x16 audio feeds
• Supports: volume, balance, high/low shelf, high/low pass filter, and 4 band parametic equalizer control per input and output
• Supports independent gain adjustment for all analogue and digital inputs
• Features 8 x assignable bus inputs allowing mixing of source inputs
• Features output grouping to combine audio outputs for a single group control.
• Combining the output grouping feature with high/low pass filter results in up to 4 x 2.1ch audio outputs
• Features assignable audio ducking with independent level and ramp up/down rate adjustment
• Features 8x configurable presets
• Supports 48kHz 24-bit sampling rate for A/D and D/A conversion
• Digital audio inputs support resolutions up to 192kHz 24-bit
• Supports independent lip-sync delay (0-500ms) per output
• Features input audio sensing, 2 x contact closures and 2 x trigger inputs allowing programmable events based on the presence of audio, NO/NC connections, and/or voltage between 2-15V AC or DC voltage
• Supports control via web-GUI, RS-232, TCP/IP and IR
• 1U design for 19" rack mount integration - rack mounting kit included

SPECIFICATIONS

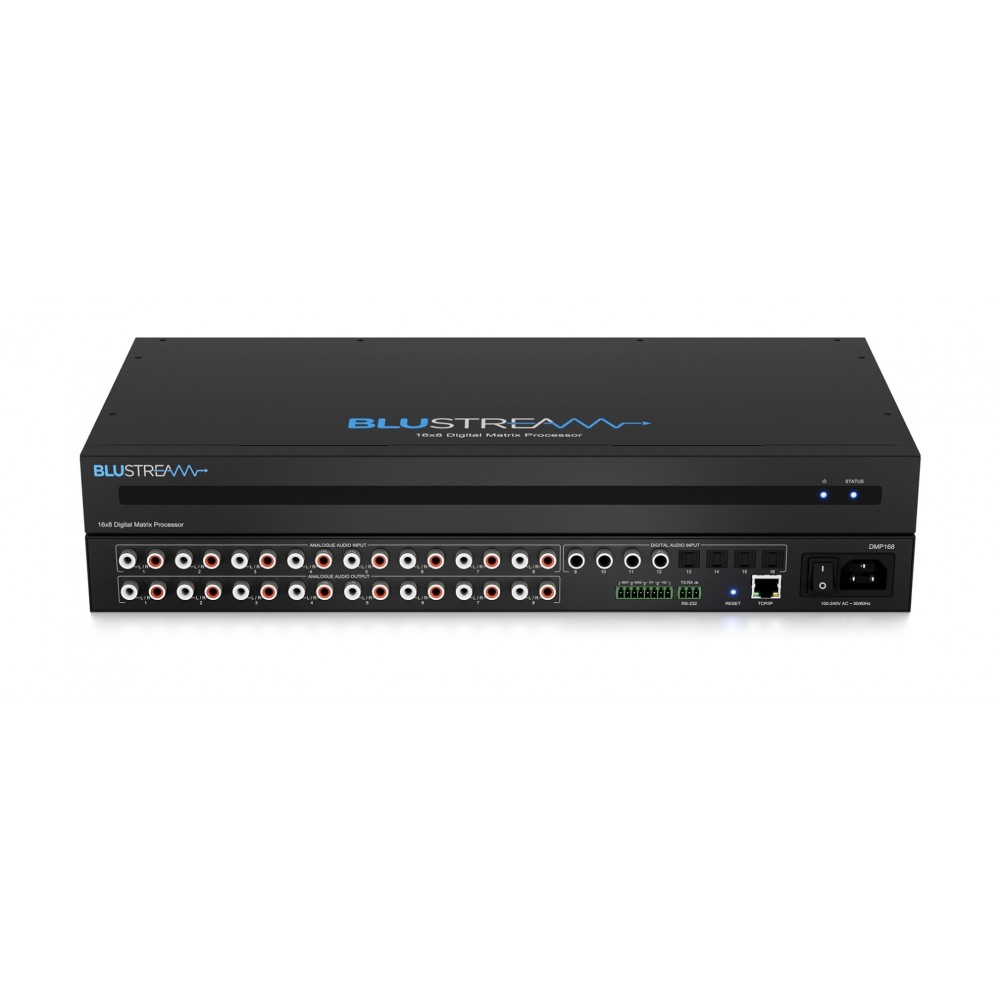

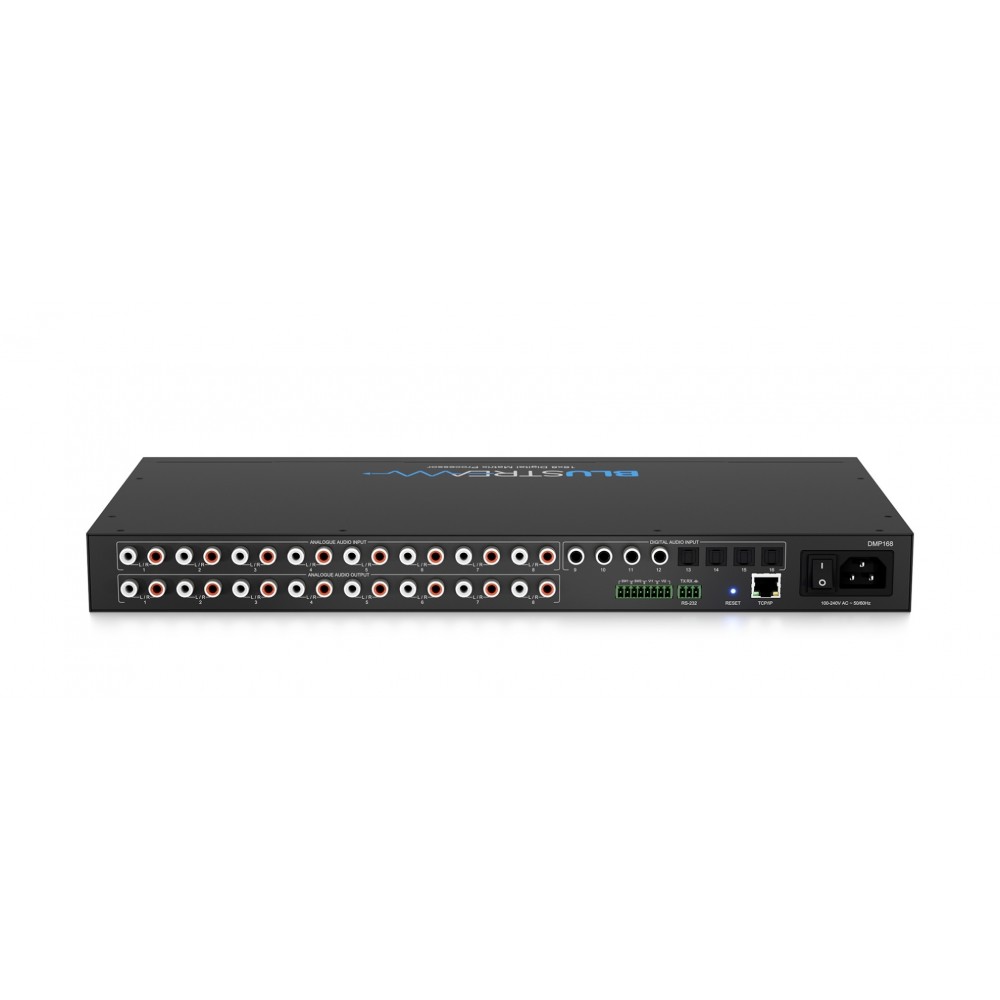

• Audio Input Connectors: 8 x Analogue RCA (Left / Right), 4 x Optical (S/PDIF), 4 x Digital RCA (S/PDIF)
• Audio Output Connectors: 8 x Analogue RCA (Left / Right)
• RS-232 serial port: 1 x 3-Pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• Control port:  4 x 2-Pin Phoenix connector
• Rack-Mountable: 1U rack height, rack ears included
• Casing Dimensions (W x D x H): 440mm x 226mm x 44mm
• Dimensions Including Connections & Feet (W x D x H): 440mm x 235mm x 51mm
• Shipping Weight: 4.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: Internal 100-240V AC

BOX CONTENTS

• 1 x DMP168

• 1 x IR receiver

• 1 x 19" Rack Mounting kit

• 4 x Mounting feet

• 1 x Quick Reference Card

• 1 x IEC Power Cable
