Power
200 Watt
downward-firing subwoofer delivers earth-shaking bass.
Weatherproof
Housed in a
molded and sealed acoustically ideal resin enclosure and marine-certified with
IPX66 rating, our guarantee of years of weather-proof outdoor performance.
Dynamic
Balance®
Massive
10-inch long-throw Dynamic Balance® driver technology eliminates driver
distortion for deeper, cleaner bass even at higher volume.
Capacitive
Coupling Technology
Dual 2-inch
voice coil design reproduces bass from both stereo channels, producing more
power in the lower frequencies with the help of Capacitive Coupling Technology.
You get big outdoor bass for big outdoor impact.
Junction
Box
The
included waterproof IP68 rated junction box easily connects other outdoor
speakers and is approved for in-ground use.

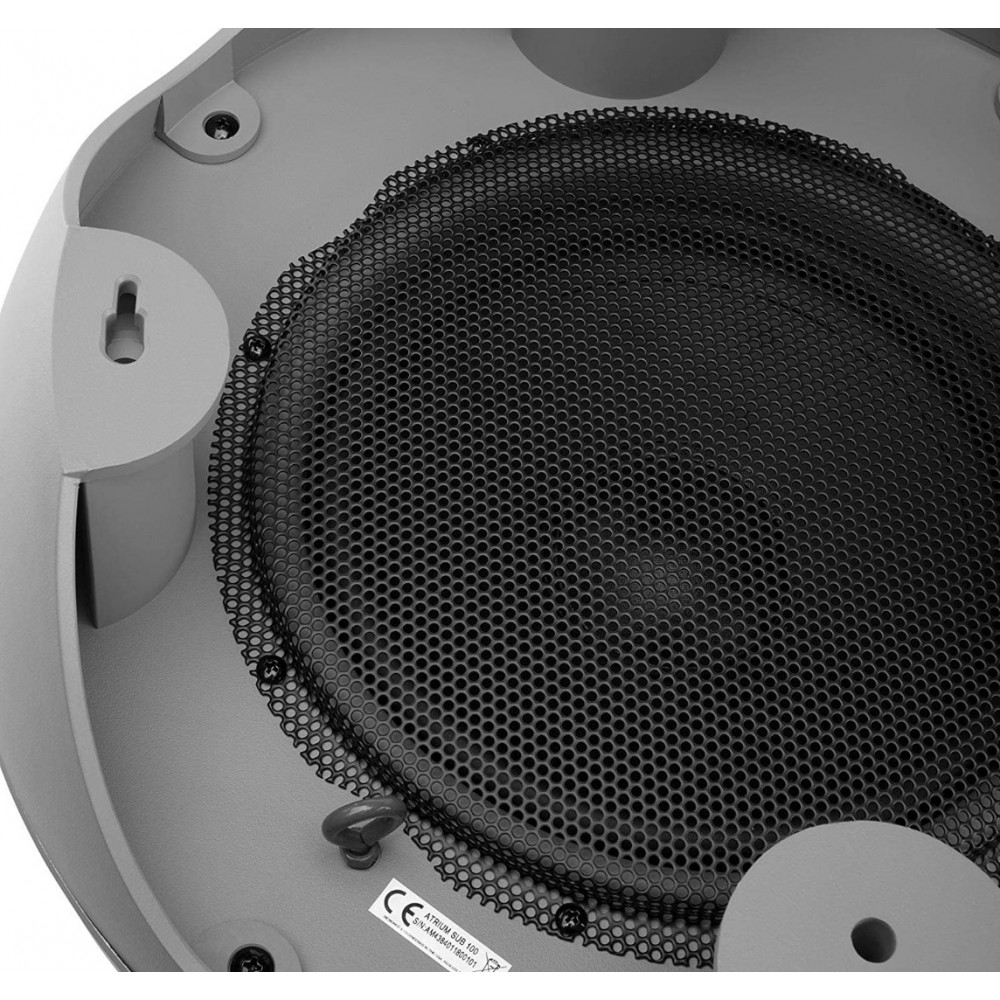

Aluminum
Grille
The
included grille protects the woofer and will hold up in the outdoor
environment.

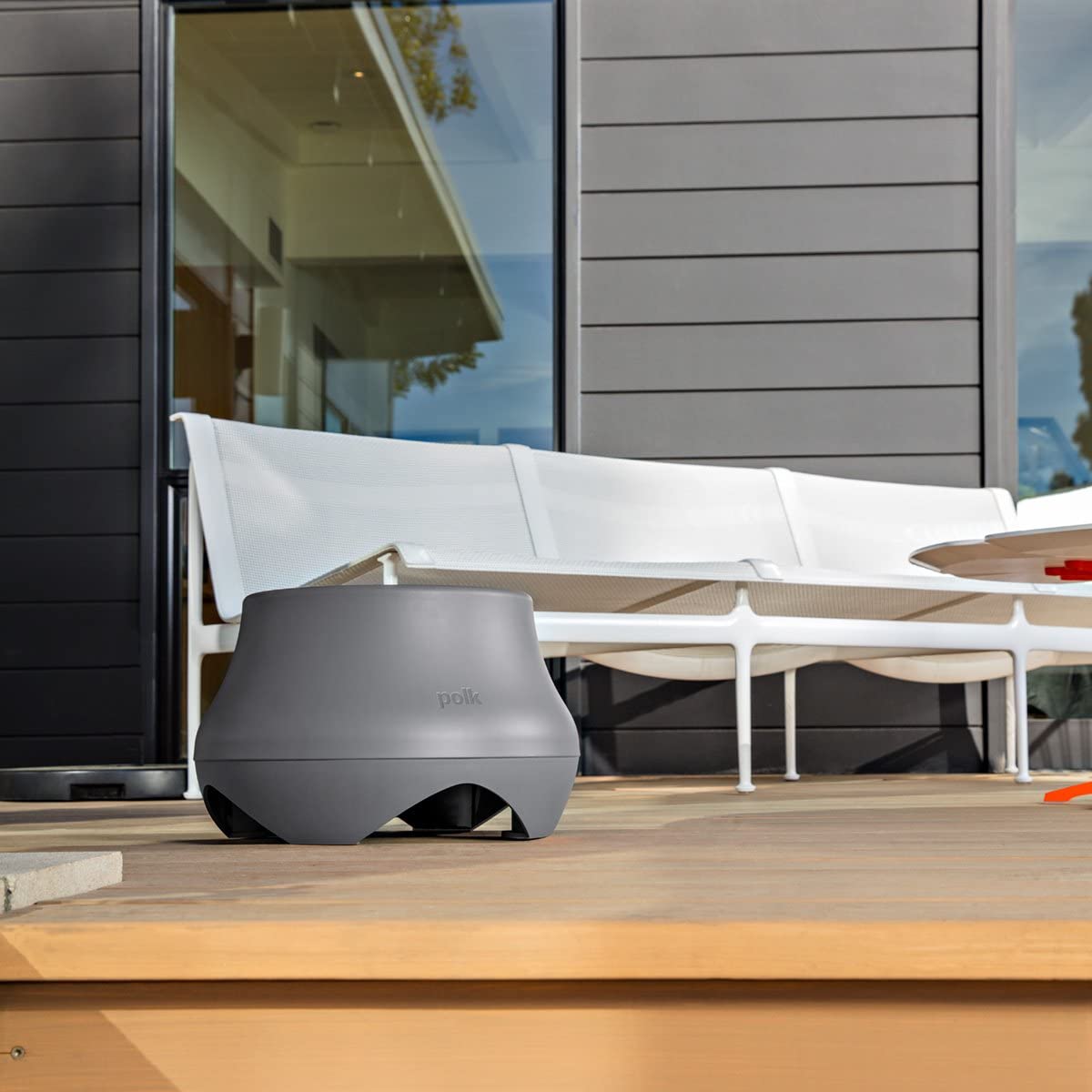

Designed to
Blend In
Sub100's
enclosure may be painted to match your landscape design, the color-impregnated
resin will never fade and naturally blends in with your outdoor seating — even
use it as a plant stand or pedestal table.
Safety and
Security
Includes 1
meter Cl3 rated 4 conductor direct burial pigtail cable. No exposed wiring gets
in the way of the weed whacker.
- Eye-bolt
security anchor and screw-down points for added stability and security.
Maximum
wiring flexibility with built-in high-performance crossover technology. The
dual-voice-coil Sub100, with built-in low-pass filters, can be connected
directly to its own amplifier channels for independent volume control
___________________________________________________________________________________________________________________________________________________________________________________________________________________________
ACCESSORIES
-
- Included Accessories
-
- (1) Weatherproof Aluminum Grille
- (1) Waterproof IP68 Rated Junction box
- (4) Wire Nuts
- (1) Owner’s ManualFlexibility
SHIPPING CARTONS
-
- Carton 1
- 14.75" (37.47 cm) h x 20.75" (52.71 cm) w x 20.25" (51.44 cm) d - 20.25 lbs (9.19 kg)
-
- Total Pieces
- 1
-
- Subwoofer Array Driver Enclosure Type
- Acoustic Suspension with Color-Impregnated Resin Shell
-
- Subwoofer Array Driver Complement
-
- (1) 10" (25.4 cm) d (Round) Long-throw Dynamic Balance composite cone driver with dual voice coils and butyl rubber surround - Subwoofer - Voice Coil 2" (5.08 cm) d
-
- Height
- 11" (27.94 cm)
-
- Width
- 16.9" (42.93 cm)
-
- Depth
- 16.9" (42.93 cm)
-
- Weight
- 16.75 lbs (7.6 kg)
AUDIO QUALITY
-
- Nominal Impedance
- 8 ohms
-
- Sensitivity (1 watt @ 1 meter)
- 88 dB
-
- Lower and Upper -3dB Limits
- 50 Hz → 110 Hz
EXTERNAL AMPLIFIER
-
- Recommended Amplifier Power Per Channel
- 10 watts → 200 watts
CROSSOVER
-
- Peak Power Handling
- 200 watts
-
- Midrange/Woofer Crossover Frequency
- 150 Hz
-
- Power Handling (per channel)
- 10 watts → 200 watts
GARDEN PLACEMENT MOUNT
-
- Mounting Type
- Security eyebolt
-
- Available Orientations
- Horizontal
LOCK DOWN ON A DECK MOUNT
-
- Mounting Type
- Keyhole Slots
-
- Available Orientations
- Horizontal
