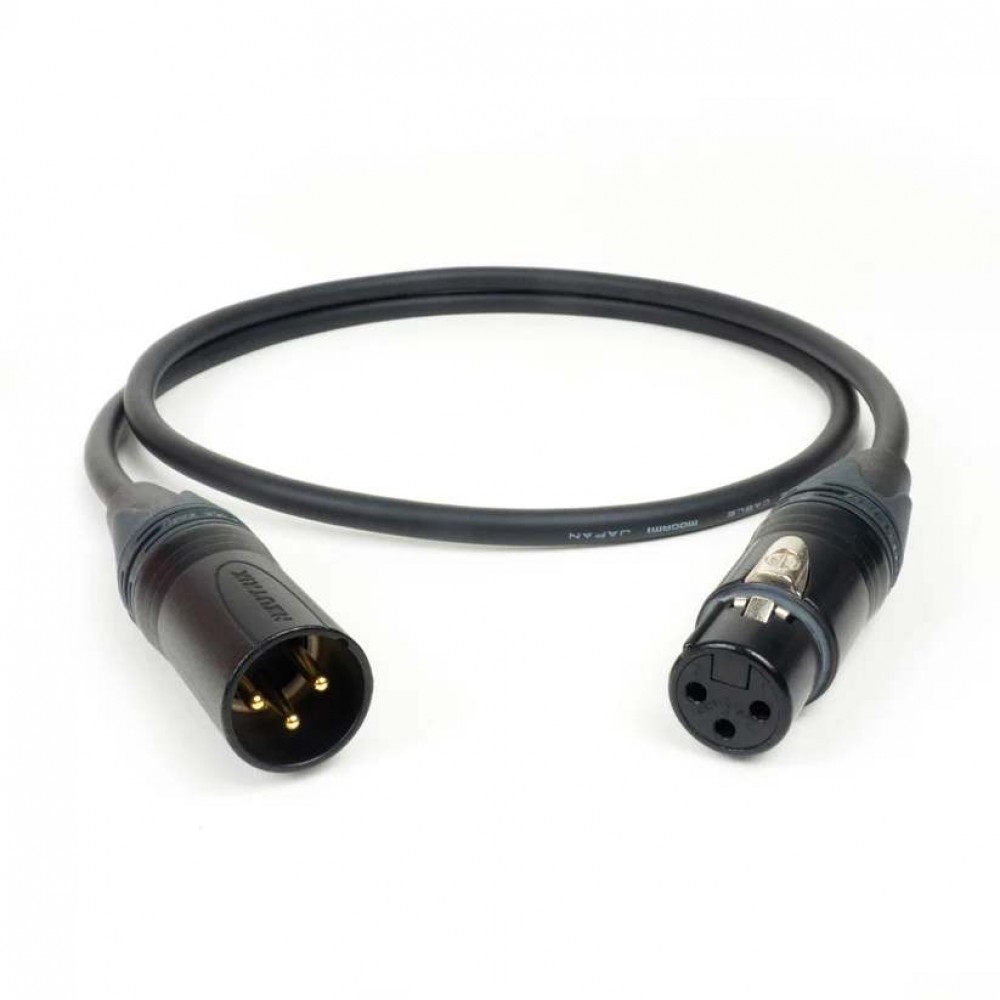

MOGAMI FM 2500 2534 2.5m
MOGAMI FM 2500 2534 2.5m
Κατασκευαστής: Mogami
Διαθεσιμότητα: Άμεσα Διαθέσιμο
€80,00

MOGAMI FM 1000 2534


Reference
Standard NEGLEX Quad High Definition Mic. Cable NEGLEX
No.2534 has become popular around the world as the standard
for high quality digital and analog recording. The cable has also become
popular for use with unbalanced equipment, such as high quality pre-amp, amp inputs and tape
decks.

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription


SPECIFICATIONS

Part No.

  • 2534

No. of Conductor

  • 4

Conductor

Details

  • 20/0.12 OFC

Size(mm2 )

  • 0.226mm2(#24AWG)

Insulation

Ov. Dia.(mm)

  • 1.6φ(0.063")

Material

  • XLPE( Cross-Linked Polyethylene )

Colors

  • Blue/Clear(Quad)

Served Shield

  • Approx. 72/0.12A

Jacket

Ov. Dia.(mm)

  • 6.0φ(0.236")

Material

  • Flexible PVC

Colors

  • 10 colors available

Roll Sizes

  • 50 m (164Ft)
  • 100m (328Ft)
  • 200m (656Ft)

Weight per 200m Roll

  • 11 kg


_________________________________________________________________________________________________________________________

ELECTRICAL & MECHANICAL CHARACTERISTICS

Part No.

  • 2534

DC Resistance

Inner Cond.

  • 0.083Ω/m(0.025Ω/Ft)

Shield

  • 0.012Ω/m(0.0037Ω/Ft)

Capacitance at 1kHz, 20℃ ( Partial C. Value )

K0

  • 65pF/m(20 pF/Ft)

K1

  • 13pF/m(4 pF/Ft)

K2

  • 4pF/m(1.2 pF/Ft)

Balanced Quad Connection

Cond.-Cond.

  • 97pF/m(29.6 pF/Ft)

Cond.-Shield.

  • 110pF/m(33.6 pF/Ft)

Inductance betweenn conductors 1kHz,20℃

  • 0.4μH/m (0.12μH/Ft)

Electrostatic Noise

  • 50 mV Max.

Electromagnetic Noise

  • 0.15 mV Max.

Microphonics at 50kΩ Load

  • 30 mV Max

Voltage Breakdown

  • Must withstand at DC 500V/15 sec.

Insulation Resistance

  • 10_5MΩ・m Min. at DC 125 V, 20℃

Flex Life

  • 11,000 cycles

Tensile Strength

  • 686 N

Emigration

  • Non-Emigrant to ABS

Applicable Temperature

  • -20℃~ + 70℃ (-4゜F~ + 158゜F)
