Key Features

Peerless Performance

Immersive spaciousness, warm and rich tone, and lifelike dynamics are legendary hallmarks of Marantz sound.

Leading Technology

CINEMA 70s comes replete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

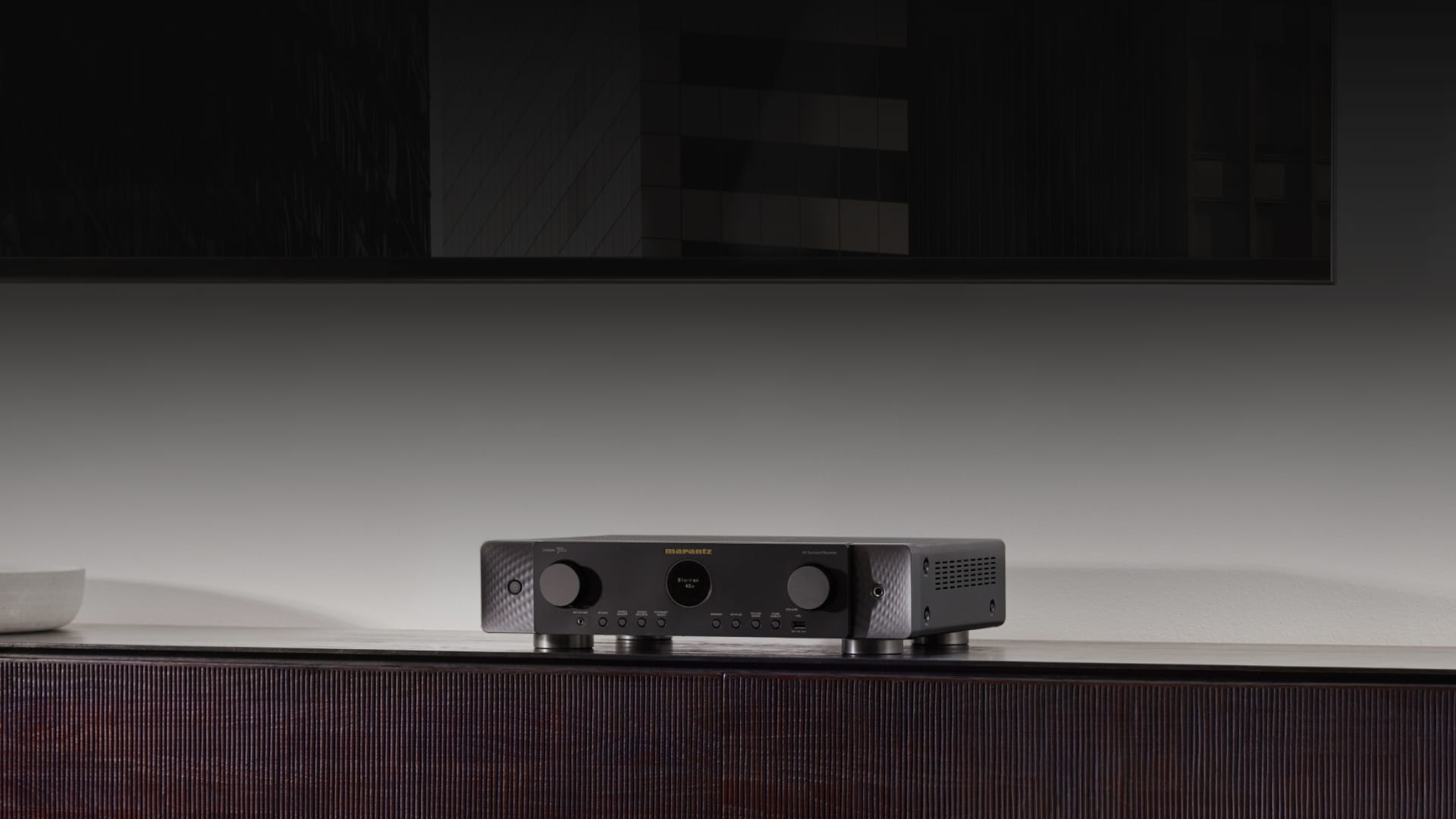

Exquisite Slimline Design

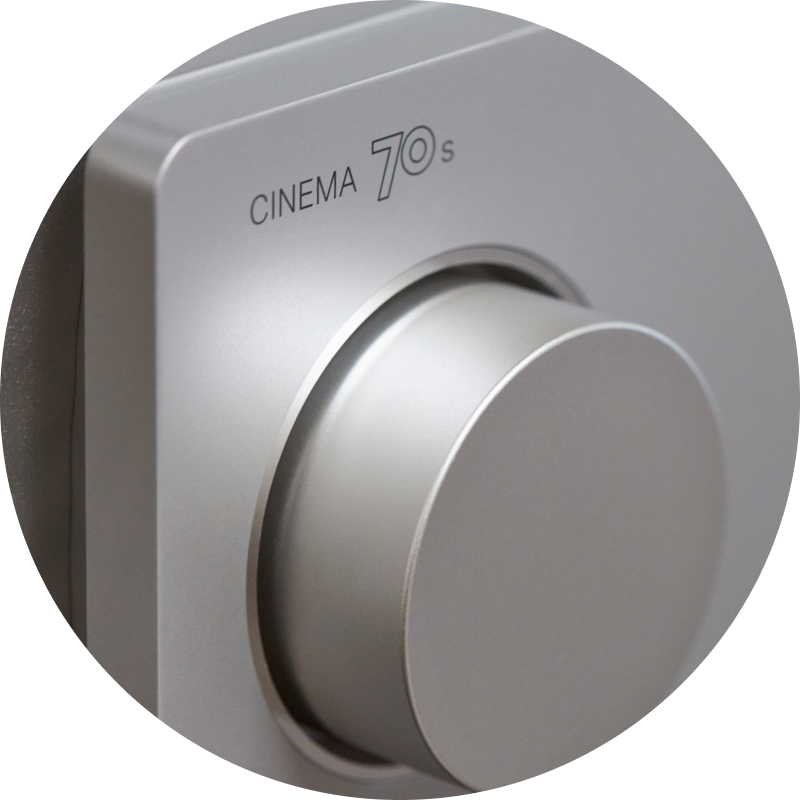

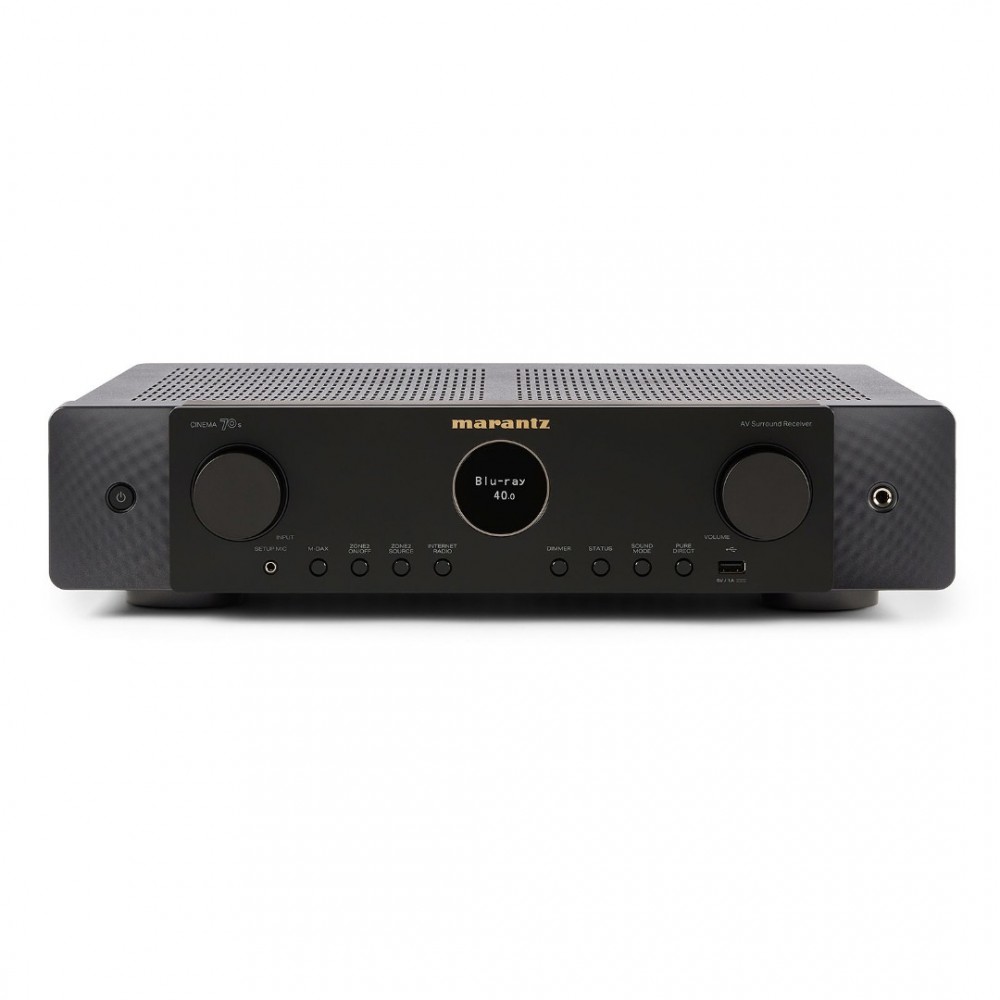

A modern expression of timeless design principles, CINEMA 70s features a highly compact slimline design, the iconic Marantz porthole, and symmetrical design.

Believe in Quality

Performance: The Marantz Sound Master meticulously tuned CINEMA 70s for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Style: Excellence is heard and seen. CINEMA 70s slimline design is less than half the height of many receivers, but the design remains luxurious with every element carefully considered.

Customizability: Thoughtfully selected connectivity options and fine-tuning ability allow you to make CINEMA 70s your own.

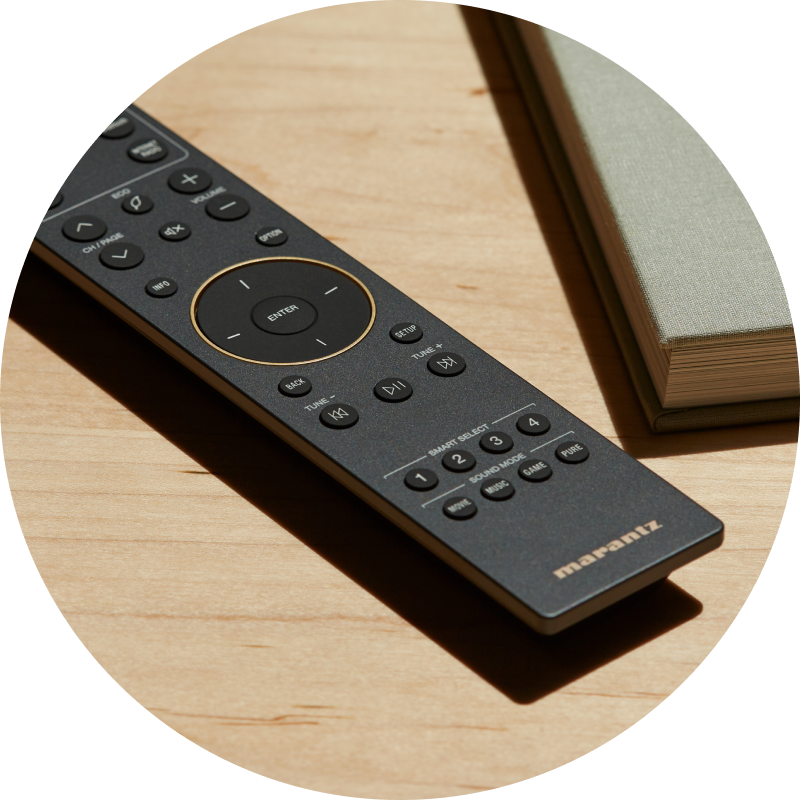

Effortless: Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

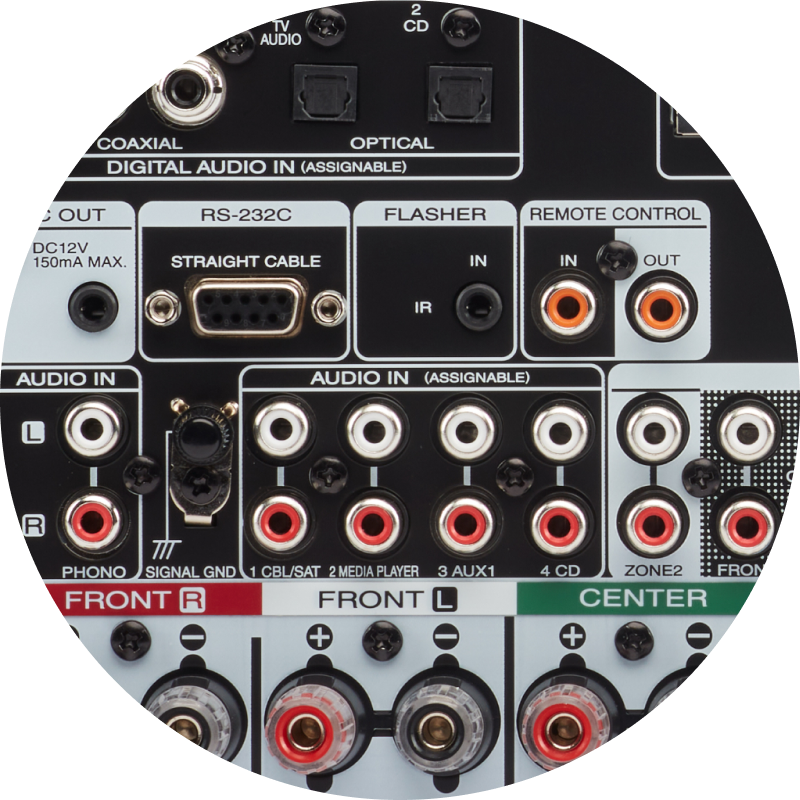

Compatibility: Six HDMI inputs, plus digital, analogue and phono inputs plus loudspeaker and preamp outputs ensure connectivity to virtually any other components you may have.

Upgradeability: Extensive input and output options plus a powerful software ecosystem make CINEMA 70s easy to upgrade as your home theatre grows.

• Number of Powered Channels 7
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 50 W
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 70 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 100 W
• 70% Guarantee Yes
• Discrete Power Amplifier Yes
• Amplifier Topology Class A/B
• Current Feedback Topology No
• Bi-Amp Drive assignable

Multichannel Surround Technologies

• DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Max Number of Processing (Preamp) Channels 7.2

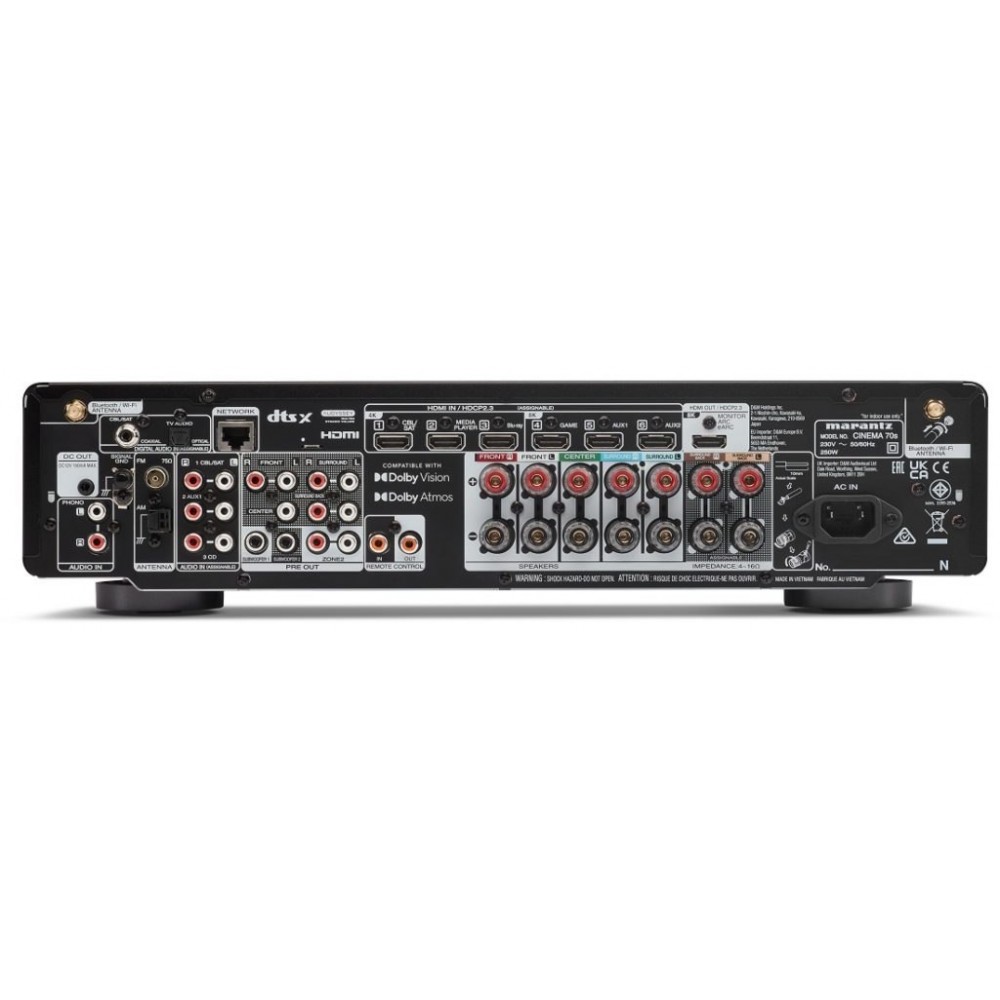

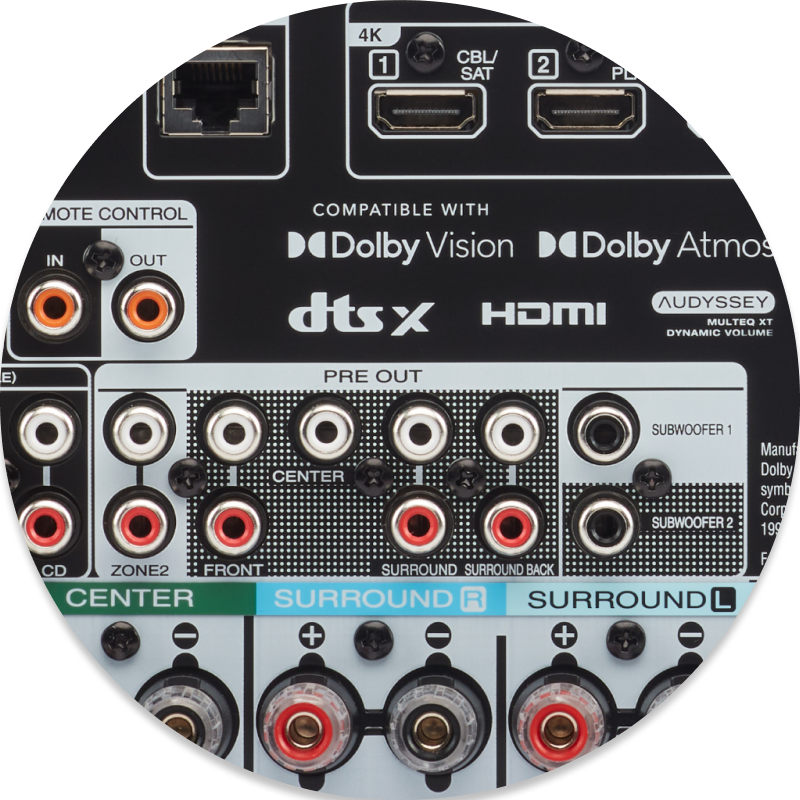

Inputs/Outputs

• Composite In / Out 0 / 0
• Component In / Out 0 / 0
• HDMI In / Out 6 / 1
• Multi-Room Video Out via HDMI 0 / 0
• Analog In / Fixed Level Out 3 in / 0 out
• Phono (MM) In Yes
• Digital In: Optical / Coaxial 1 / 1
• Multi-Room Out: analog / digital 1 / 0
• Multichannel Preamp Out 7.2
• Subwoofer Out 2
• 7.1 multichannel input No
• Number of Speaker Terminals 7
• Speaker A / B assignable
• Multi-Room Speaker Terminal assignable
• Front Inputs USB-A
• USB Audio Yes / No / No
• FM Tuner with RDS Yes
• DAB+ Tuner No

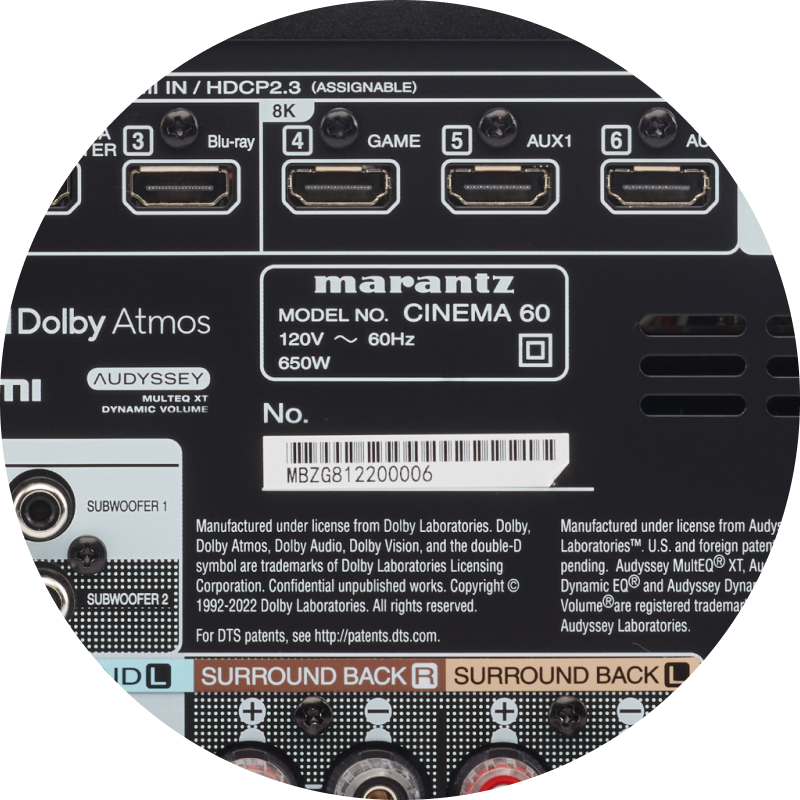

HDMI

• Total HDMI Inputs / No. Support 8K 6 / 3
• HDCP2.3 support Yes
• HDMI Outputs: Main / Zone 1 / 0
• Analog to HDMI Video Conversion No
• HDMI Upscaling 1080P/4K to 8K
• Max resolution @ framerate
• Audio Return Channel eARC
• Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
• ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
• Variable Refresh Rate / Quick Frame Transport Yes / Yes / No
• HDMI Pass-Through in Standby Mode Yes
• CEC Yes
• DSD Audio over HDMI No
• Auto LipSync Yes

Acoustic / Room Correction

• Audyssey MultEQ
• Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
• Audyssey LFC No
• Dirac Live Support No
• Variable Cross Over Yes
• Optimized Bass Redirection Yes
• Bass Sync No

Music File Support

• Lossy Formats MP3 / WMA / AAC
• Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
• DSD Audio 2.8 MHz / 5.6 MHz
• Gapless Playback FLAC, WAV ,ALAC ,DSD
• Compressed Audio Enhancer: MDAX2 Yes
• Network Audio Sharing Yes

Streaming Services

• HEOS Multi-room and Streaming Yes
• AirPlay Audio Streaming AirPlay2
• Internet Radio TuneIn
• Spotify* Spotify Connect
• Pandora Yes
• SiriusXM Yes
• Other Streaming Services * Amazon Music HD/
• Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
• Roon tested Yes

Network Connectivity

• Ethernet Ports Yes
• Wi-Fi (include version / band) Yes
• Bluetooth (Include version) Yes
• Bluetooth Re-transmit for Bluetooth headphones Yes

Smart Home Integration And Control

• Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
• App for Smart Phones & Tablets (iOS & Android) Marantz AVR App
• HEOS Multi-Room Integrated Yes
• HEOS Link Compatibility: IR/ IP Yes /Yes
• Multi-Room zones 2
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
• Zone Audio Output: Speaker / Preout Yes / Yes
• Zone HDMI Output from HDMI Source No
• Control Connectivity IP Control / Web Control / App Control
• IR Flasher In Yes
• Marantz Remote Bus Yes
• DC Trigger Output 1
• HDMI Diagnostics Yes

Others

• Front Display port hole OLED
• Primary Display Size (diagonal in/mm)
• Secondary Display Size (diagonal in/mm)
• GUI Languages 9
• Setup Assistant Yes
• Smart Select on Remote Yes
• Firmware Update by Network / USB Yes / Yes
• ECO Mode Yes
• Auto Power off: Yes
• Sleep Timer: Yes

General

• Available Colors Black/Silver-Gold
• Metal Front Panel No
• System Remote Control RC-050SR
• Power Consumption in W 250
• Power Consumption No-Sound (ECO on/off) in W 30 W / 40 W
• Standby Consumption in W 0.2
• CEC Standby Consumption in W 0.5
• Network Standby Consumption in W Less than 2.0

Maximum Dimensions

• Antenna:Horizontal:(W x D x H) in mm
• Antenna:Vertical :(W x D x H) in mm
• W/o Antenna:(W x D x H) in mm 442 x 384 x 109 , ( 442 x 384 x 178 ), 【 442 x 372 x 109 】
• Weight in kg 8.7
• What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
