KORG MICROAUDIO 22 2X2 USB AUDIO INTERFACE
KORG MICROAUDIO 22 2X2 USB AUDIO INTERFACE
KORG MICROAUDIO 22 2X2 USB AUDIO INTERFACE
KORG MICROAUDIO 22 2X2 USB AUDIO INTERFACE
KORG MICROAUDIO 22 2X2 USB AUDIO INTERFACE
Κατασκευαστής: KORG
Διαθεσιμότητα: Παραλαβή 1 εως 3 ημέρες
€192,20

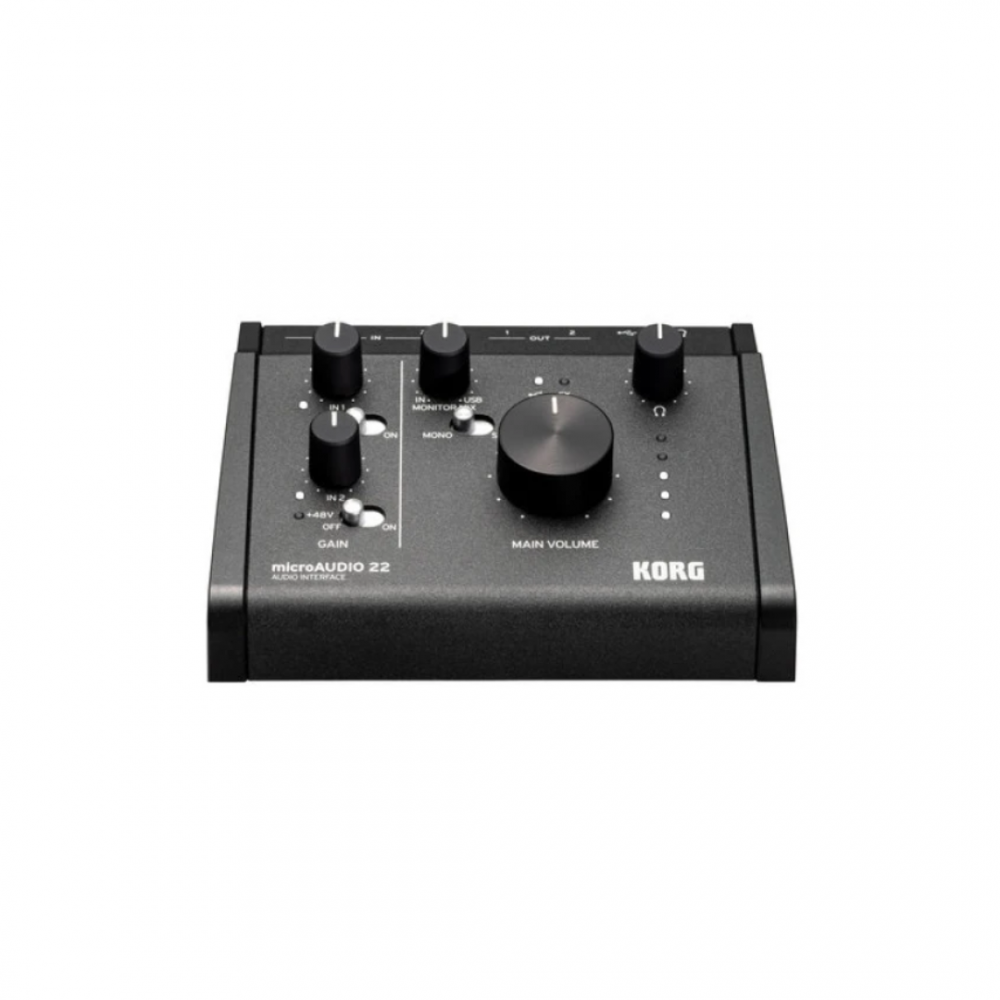

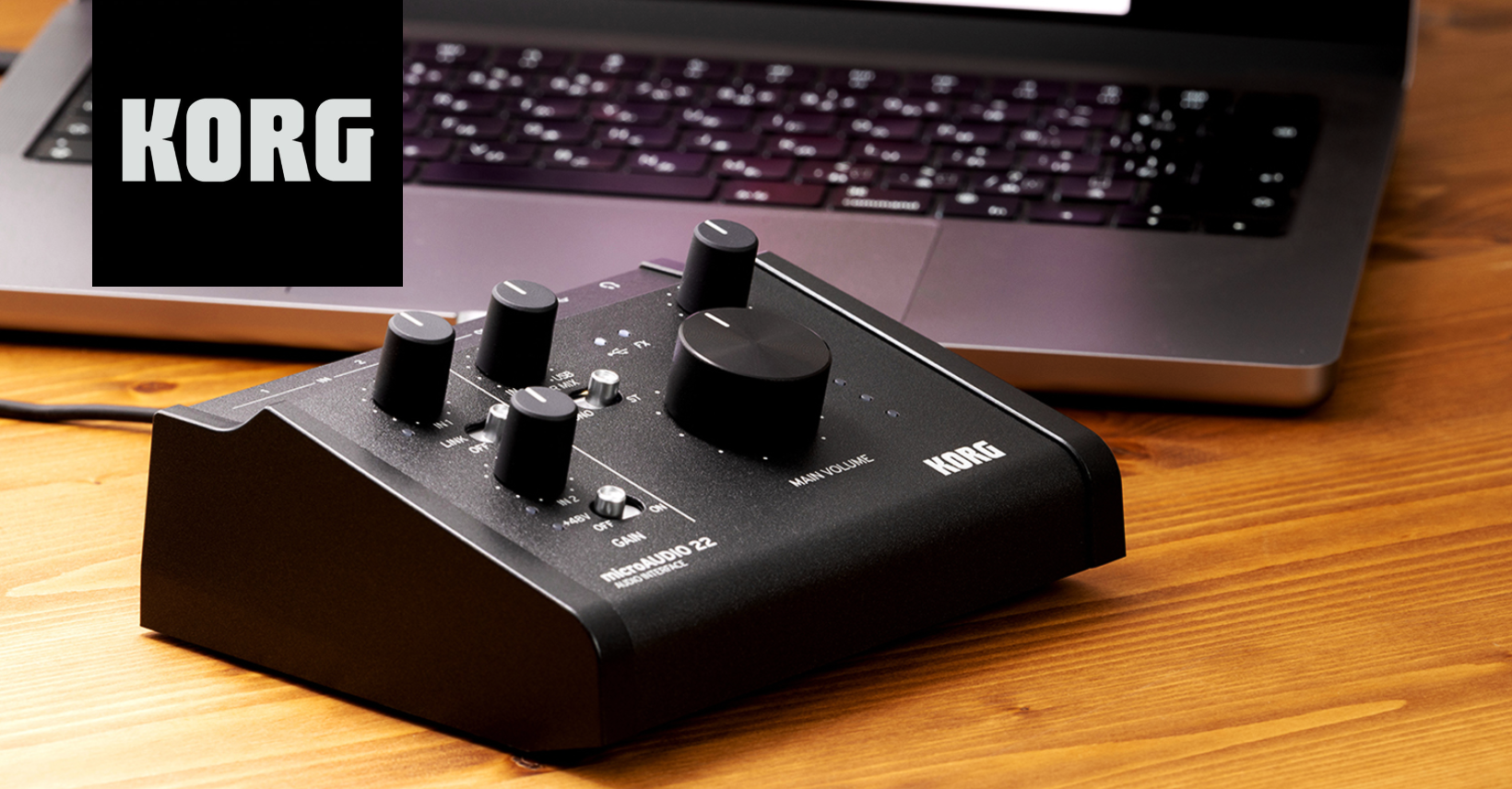

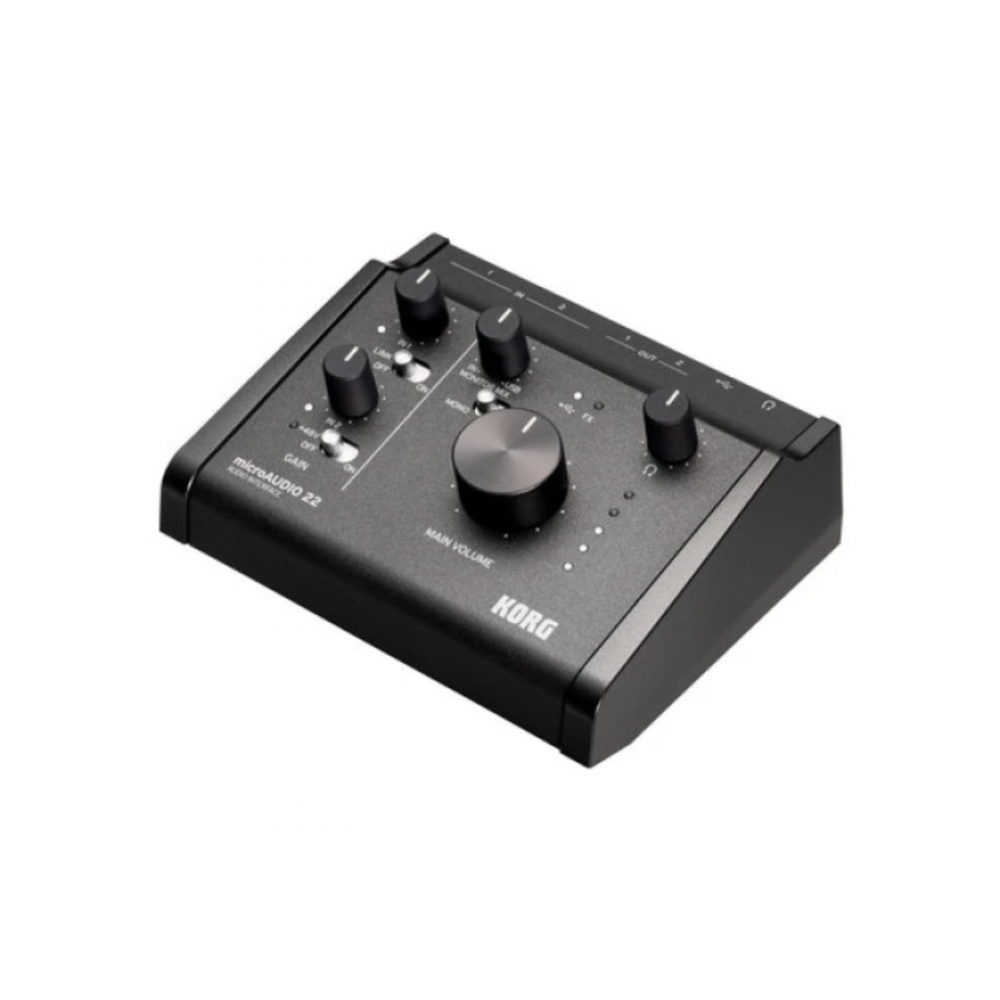

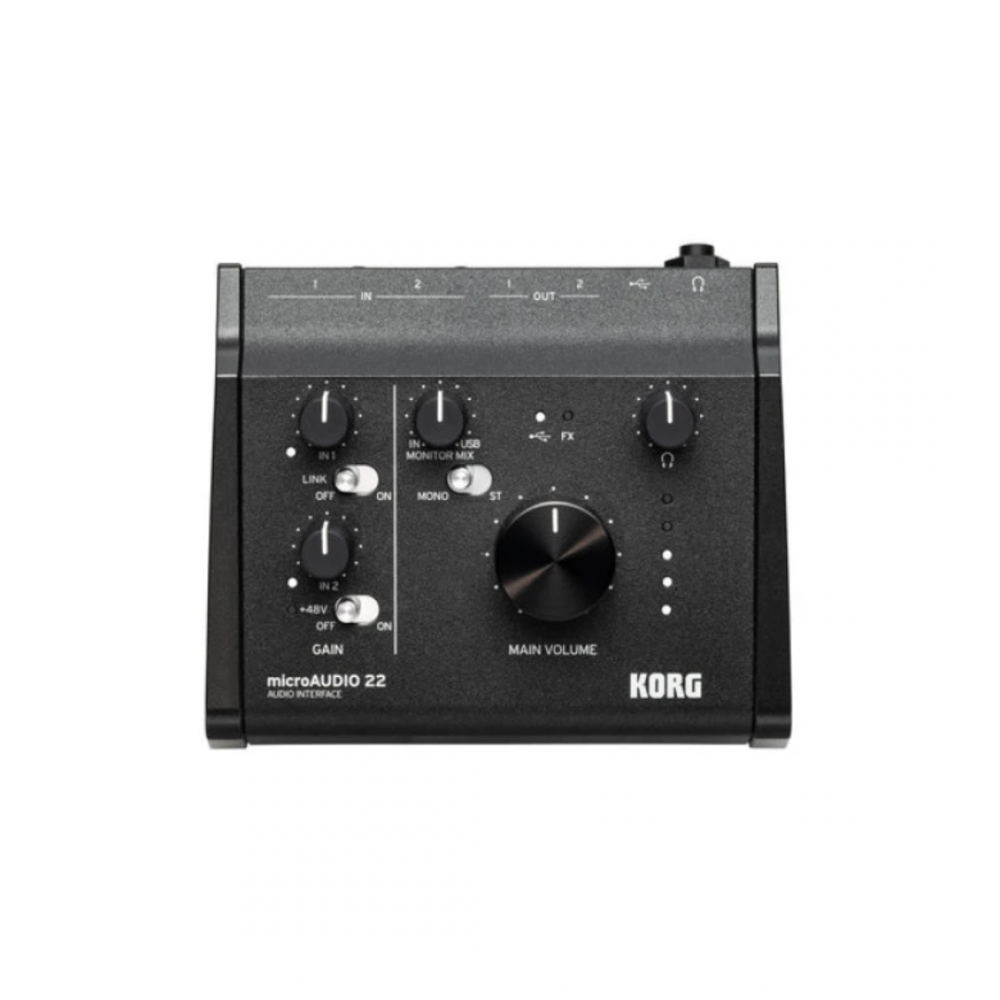

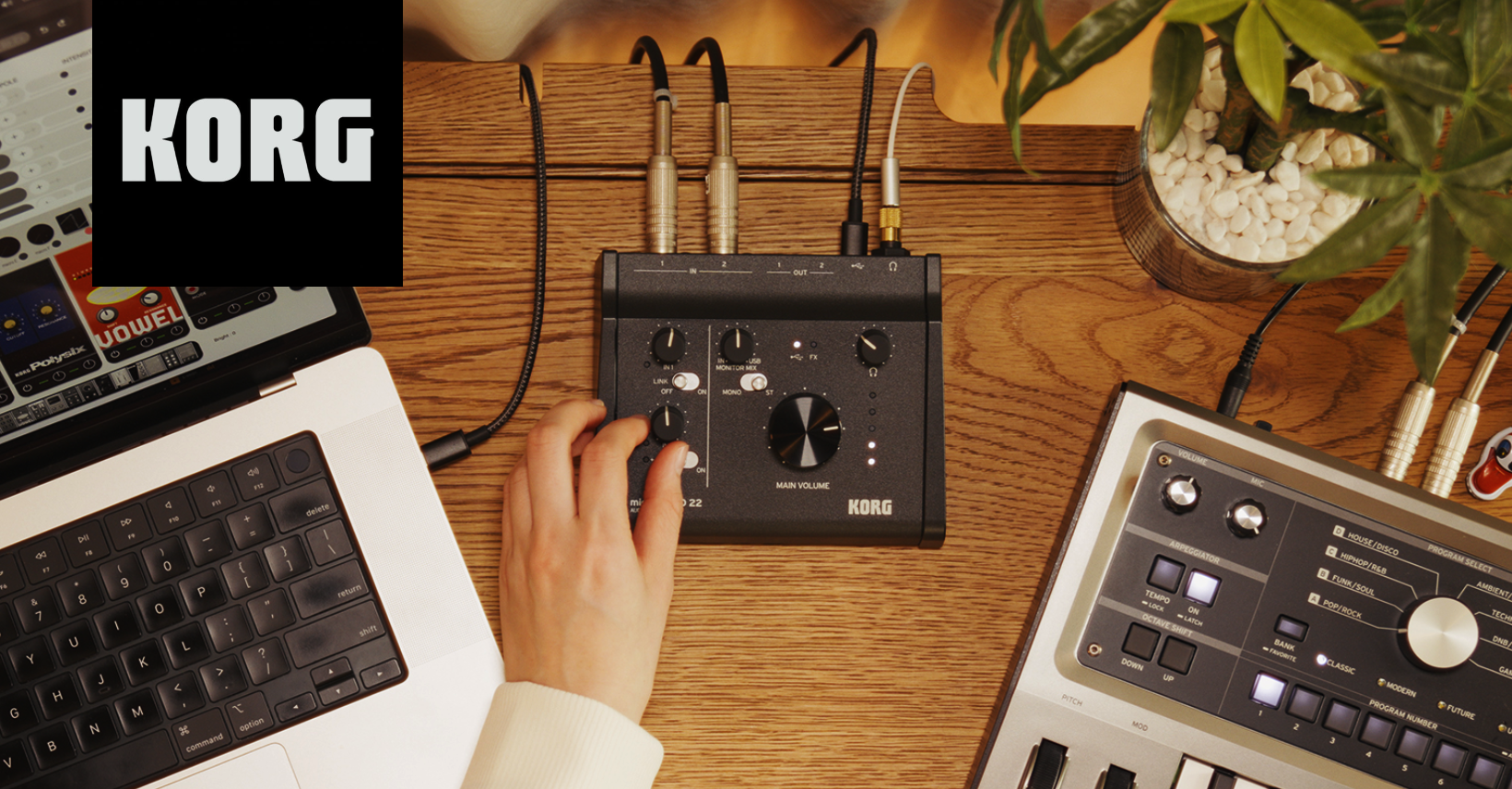

KORG MICROAUDIO 22
Compact Form. Premium Sound


USB Audio interface 24bit/192kHz. Διαθέτει 2 inputs/2 Outputs, έξοδο ακουστικών, Loopback, μηδενικό Latency, Stereo link στις εισόδους και τροφοδοσία μέσω USB.

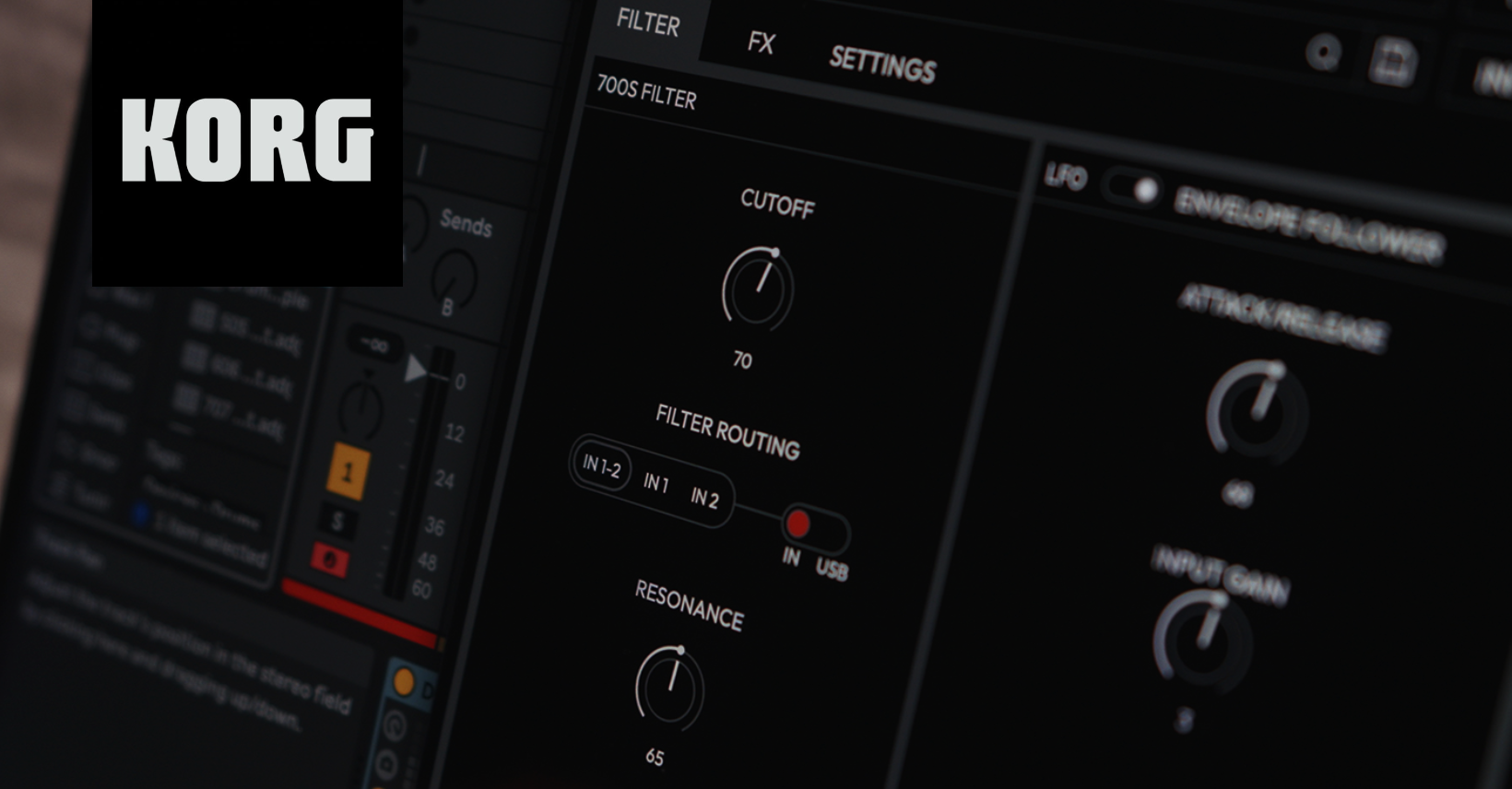

  • Περιλαμβάνονται μαζί το Ableton Live Lite, Izotope Ozone Elements και Korg Filter Ark. Χρώμα μαύρο. Βάρος 407gr.




Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription




________________________________________________________________________________________________________________________________________________________________

Audio format

  • Sampling rate: 44.1 kHz/48 kHz/88.2 kHz/96 kHz/176.4 kHz/192 kHz
  • Bit rate: 24-bit

Mic input

  • Dynamic range: 109.5 dB (A characteristic)
  • THD+N: less than 0.015% (minimum gain, -1 dBFS input)
  • Maximum input level: -2 dBu (minimum gain)
  • Gain range: 56 dB Impedance: 1.5 kΩ

Line input

  • Dynamic range: 109.5 dB (A characteristic)
  • THD+N: less than 0.004% (minimum gain, -1 dBFS input, 22 Hz/22 kHz bandpass filter)
  • Maximum input level: 13 dBu/18 dBu (SE/ DIF) (minimum gain)
  • Gain range: 56 dB
  • Impedance: 1 MΩ/2 MΩ (SE/DIF)

Line output

  • Dynamic range: 109.5 dB (A characteristic)
  • THD+N: less than 0.0015% (minimum gain, -1 dBFS input)
  • Maximum output level: 10 dBu/16 dBu (minimum gain)
  • Impedance: 330 Ω/660 Ω (SE/DIF)

Headphone output

  • Dynamic range: 107 dB (A characteristic)
  • THD+N: less than 0.0015% (minimum gain, -1 dBFS input, 22 Hz/22 kHz bandpass filter)
  • Maximum output level: 10 dBu (minimum gain)
  • Impedance: 20 Ω

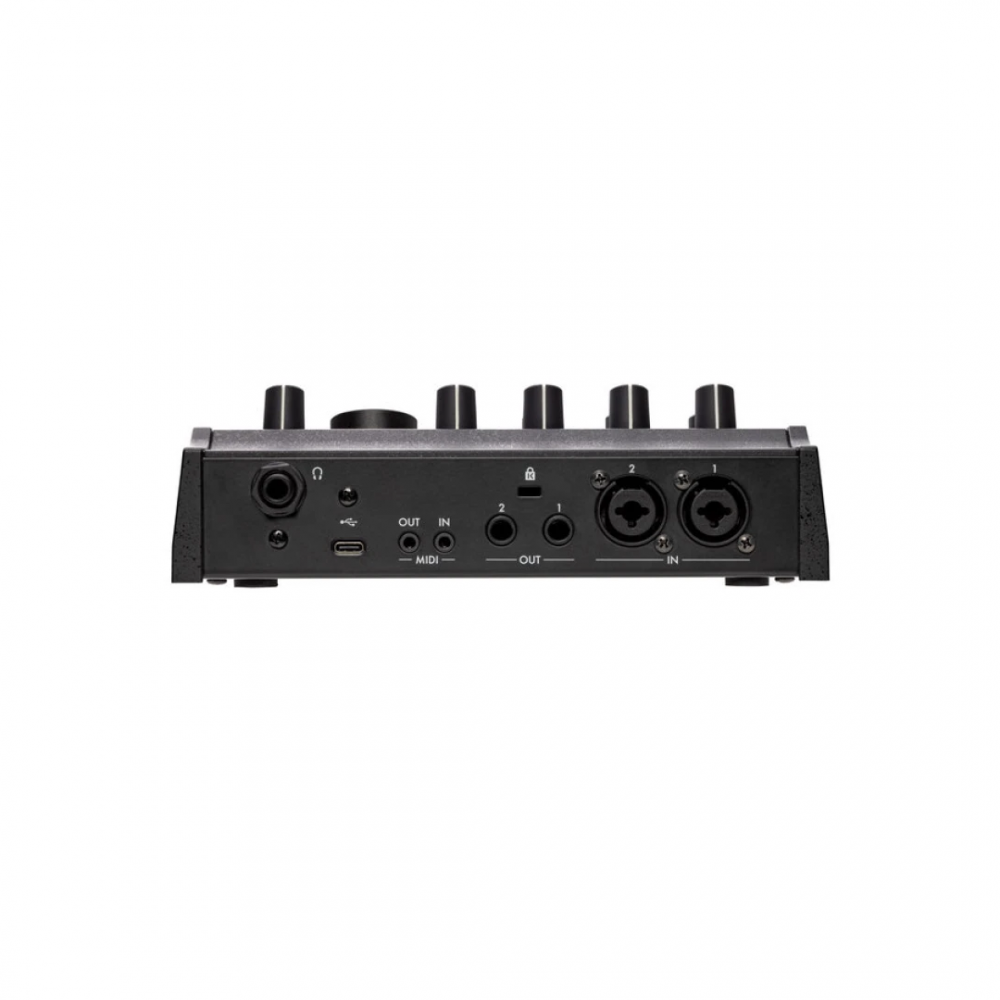

Jacks and ports

  • microAUDIO 22: IN 1, 2 jacks (XLR/6.3 mm TRS monaural phone jack), OUT 1, 2 jacks (6.3 mm TRS monaural phone jacks), (USB) port (Type-C), (headphones) jack (6.3 mm stereo phone jack)
  • microAUDIO 722: IN 1, 2 jacks (XLR/6.3 mm TRS monaural phone jack), OUT 1, 2 jacks (6.3 mm TRS monaural phone jacks), MIDI IN jack, MIDI OUT jack (3.5 mm TRS phone jack), (USB) port (Type-C), (headphones) jack (6.3 mm stereo phone jack)

Power supply

  • USB bus power

Current consumption

  • 800 mA or less

Dimensions

  • microAUDIO 22: 150 mm (W) x 128 mm (D) x 68 mm (H)/5.91˝ x 5.04˝ x 2.68˝
  • microAUDIO 722: 207 mm (W) x 128 mm (D) x 68 mm (H)/8.15˝ x 5.04˝ x 2.68˝

Weight

  • microAUDIO 22: 407 g/0.90 lb
  • microAUDIO 722: 553 g/1.22 lb

Included items

  • microAUDIO 22: USB cable, Quick Start Guide

  • microAUDIO 722: USB cable, MIDI TRS-DIN adapter cables, Quick Start Guide
