The WyreStorm EXP-CON-DAC-D is a Digital to analogue audio converter capable of taking up S/PDIF audio encoded as Dolby Digital 5.1 from a compatible coaxial or TOSLINK audio source and downmixing to analogue stereo. Additionally the switchable digital output allows the signal to be output in its original form or downmixed like the stereo RCA output.

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription
Inputs1x Coaxial In: S/PDIF Coaxial Digital | 1x Optical In: TOSLINK (Digital Optical)

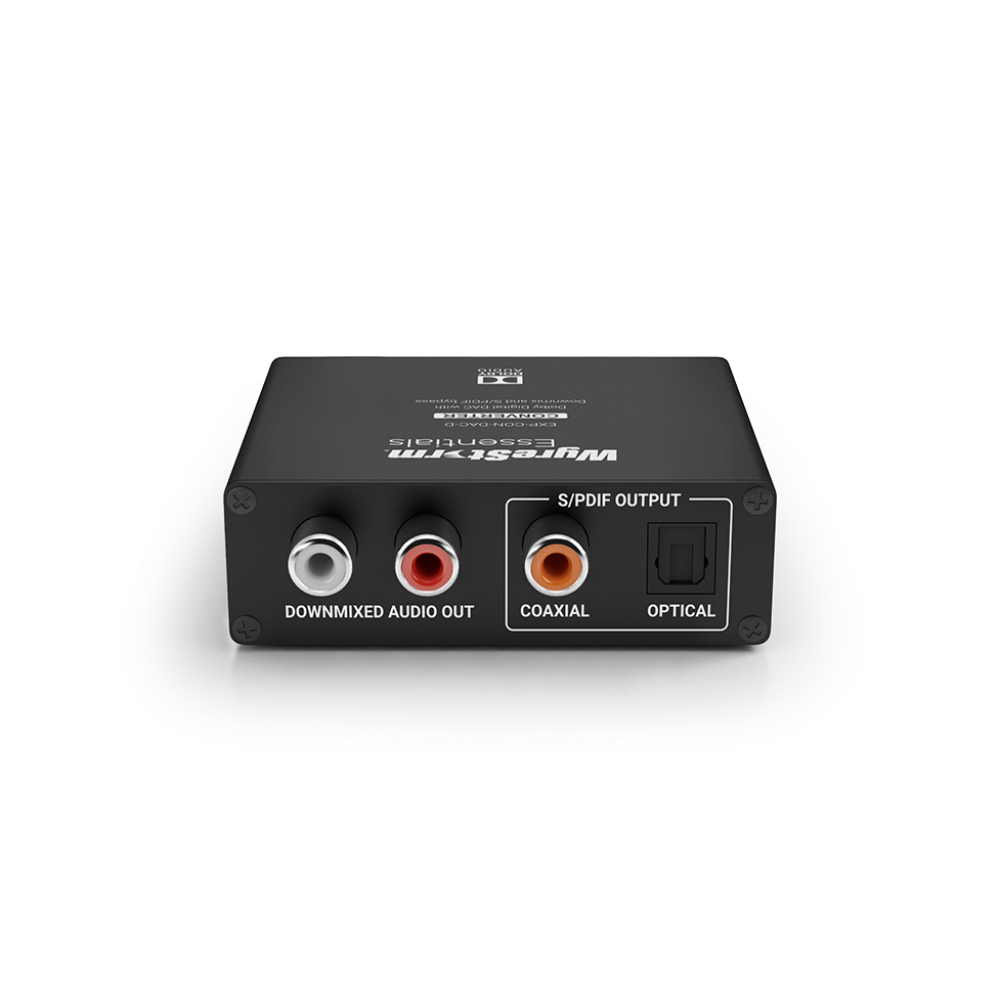

Outputs1x L/R Audio: RCA Stereo | 1x Coaxial: S/PDIF Digital Coaxial | 1x Optical: TOSLINK Digital Optical
Audio Formats2ch PCM (24bit/96kHz max) | Dolby Digital 5.1
Output Impedance552Ω
Output Voltage2.0V RMS @ Max Input (0dBFS)
Frequency Response20Hz~20kHz <+/-0.5dB
Signal to Noise Ratio> 93dB (20Hz~ 20kHz)
THD + Noise (floor)0.006%~0.042% (1kHz at 2V RMS)

POWER

Power Supply5V DC 1A
Max Power Consumption0.475W

ENVIRONMENTAL

Operating Temperature32°F ~ 113°F (0°C ~ 45°C)10% ~ 90%, non-condensing
StorageTemperature-4°F to ~ 158°F (-20°C ~ +70°C)10% ~ 90%, non-condensing
Maximum BTU1.6 BTU/hr

DIMENSIONS & WEIGHT

Rack Units/Wall Box<1U
Height24mm/0.94in
Width80mm/3.15in
Depth76mm/2.99in
Weight107g

REGULATORY

Safety and EmissionCE | FCC | RoHS

ACCESSORIES

What’s included?1 x WyreStorm EXP-CON-DAC-D Analog audio converter
1 x Universal 5V DC/1A power supply


Wyrestorm Converter & Adapter EXP-CON-DAC-D (4)

AUDIO CONVERSION MADE EASY

If quick, reliable and cost-effective conversion of digital audio to analog is a requirement for your project, the EXP-CON-DAC-D is the perfect solution. Converting LPCM or Bitstream audio to stereo analogue for connection to legacy stereo audio systems or 2ch amplifiers.

Wyrestorm Converter & Adapter EXP-CON-DAC-D (4)

DOLBY DOWN-MIXING

Licensed by Dolby Laboratories to convert 5.1 compressed bitstream from a surround sound source device such as Blu-Ray players, cable & satellite receivers or media devices, the EXP-CON-DAC-D properly downmixes the 6 channel audio stream to the stereo RCA outputs.

Wyrestorm Converter & Adapter EXP-CON-DAC-D (8)

MULTIPLE I/O OPTIONS

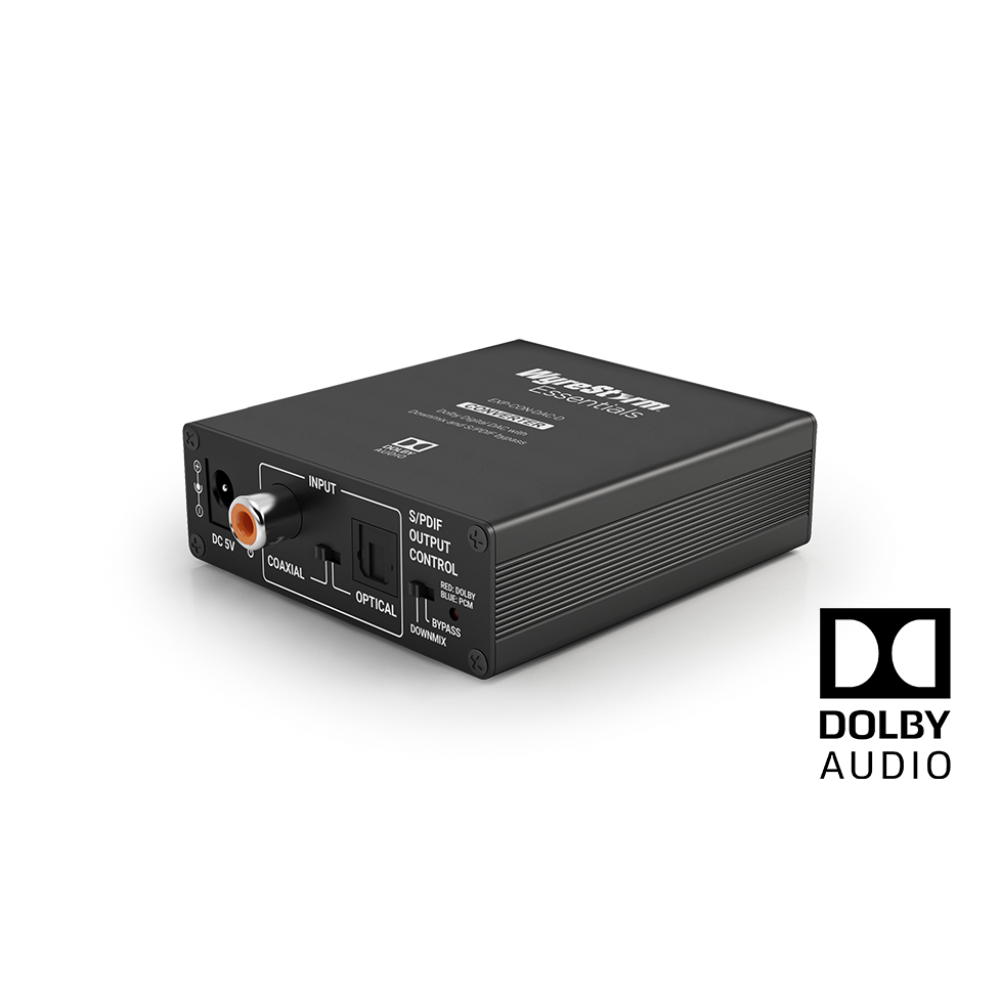

The EXP-CON-DAC-D has the option to convert a digital signal from either S/PDIF coaxial or TOSLINK inputs using a simple input selection switch. Using the output selection control the unit can furthermore then output the same signal to the S/PDIF outputs as a loop-through of the original signal or as downmixed PCM stereo which can then be fed into an S/PDIF input of an audio system, mirroring the analogue stereo output.

USB POWERED

With installation flexibility in mind, the EXP-CON-DAC-D can be powered using the included 5v DC power supply (with included regional pin adaptors) or use the USB power cable to power the DAC-D from a USB power or peripheral port on a third party device, potentially saving a mains outlet
