WOOD FIBRE CONES
Using a wood fibre cone gives the in-house build woofer a light, rigid and randomly uneven membrane. Making it easy to move ensures even piston like movements and reduces the possibility of surface resonance greatly.
![]() |
3 λεπτά από τη στάση μετρό 'Δημοτικό Θέατρο' Πειραιά |
Using a wood fibre cone gives the in-house build woofer a light, rigid and randomly uneven membrane. Making it easy to move ensures even piston like movements and reduces the possibility of surface resonance greatly.
Dividing the mid-range and basse drivers into separated chambers enables us to individually tune every driver to its specific frequency range to maximise the woofer output.
The hybrid tweeter module is a DALI trademark and for the RUBICON series, it is build in Denmark. The hybrid tweeter module, combines the dome tweeter with the ribbon tweeter for an amazing rendering of the high frequencies.
With a pole piece constructed entirely from SMC, surrounded by a slitted copper cap, and enclosed within a large ferrite magnet, the effect of the SMC is focused and maximised, and reduces distortion as never heard before.

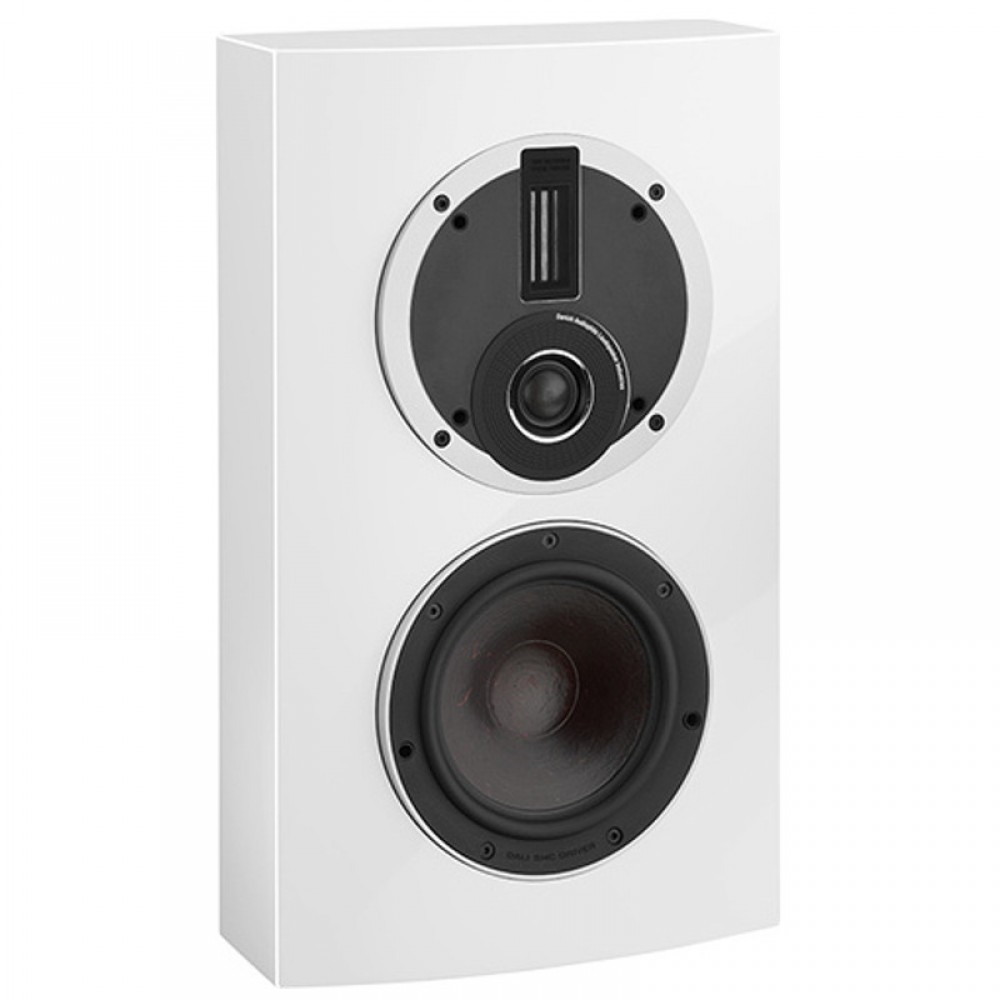

Product Series | RUBICON |
Speaker Type | Center Front On-Wall Rear Surround |
Frequency Range (+/-3 dB) [Hz] | 59 - 34.000 |
Sensitivity (2,83 V/1 m) [dB] | 89.0 |
Nominal Impedance [Ω] | 4 |
Maximum SPL [dB] | 109 |
Recommended Amplifier Power [W] | 20 - 150 |
Crossover Frequency [Hz] | 3,100/ 14,000 |
Crossover Principle | 2 + ½-way |
High Frequency Drivers | 1 x 17 x 45 mm Ribbon 1 x 29 mm Soft Textile Dome |
Low Frequency Driver | 1 x 6½" Wood Fibre Cone |
Enclosure Type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 49,0 |
Connection input(s) | Single Wire |
Magnetic Shielding | No |
Recommended Placement | Above/Below TV Screen On-Wall |
Recommended Distance From Wall [cm] | 0 - 30 |
Dimensions With Base (HxWxD) [mm] | 468 x 278 x 146 |
Weight [kg] | 8.0 |
Accessories Included | Manual Micro Fibre Cloth Rubber Bumpers |
Finish | Black High Gloss Lacquer Rosso Veneer Walnut Veneer White High Gloss Lacquer |
