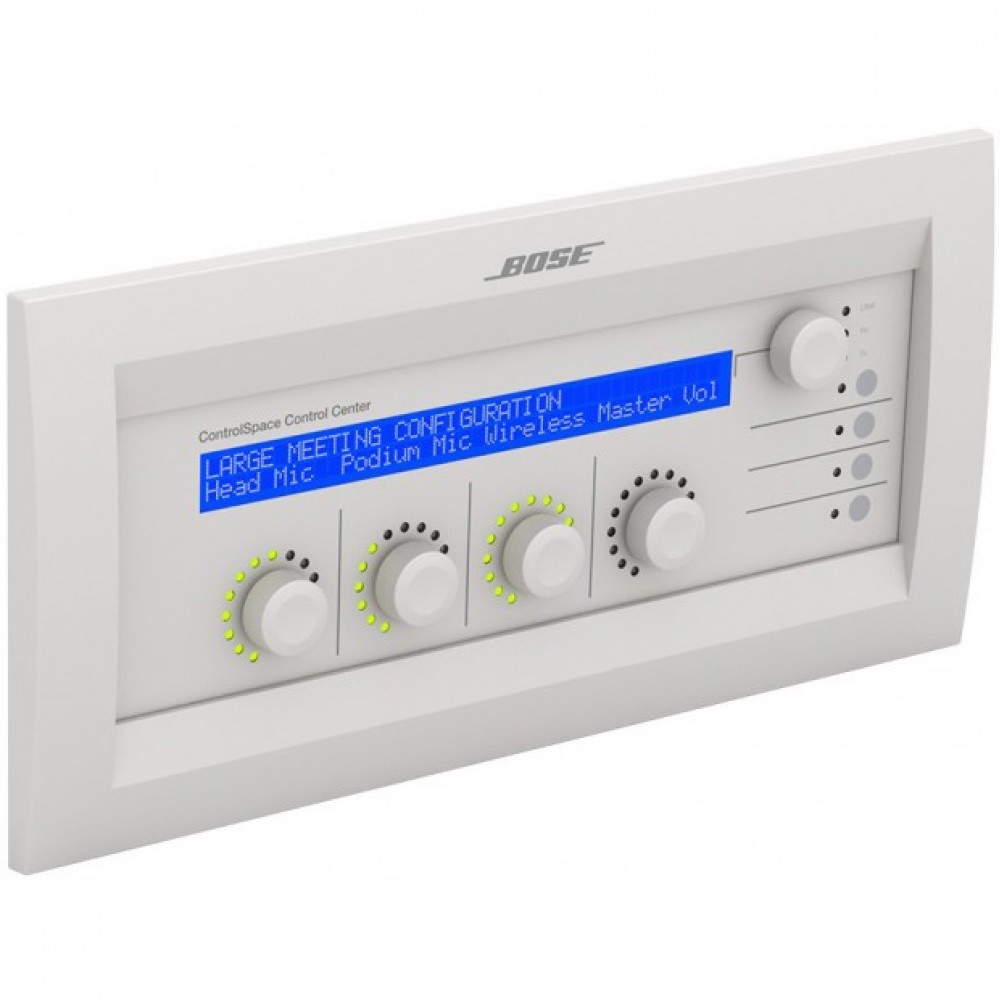

BOSE ControlSpace CC-64 Control Center
BOSE ControlSpace CC-64 Control Center
Κατασκευαστής: BOSE
Διαθεσιμότητα: Κατόπιν Παραγγελίας
€1.275,00

BOSE ControlSpace CC-64 Control Center

Wall mount Controller σε λευκό χρώμα για επεξεργαστές ControlSpace και ενισχυτές PowerMatch







Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription

Technical Specification

COMPLIANCE

  • EMC

  • ICES-003 Class B, EN55103-1, EN55103-2, FCC Part 15 Class B

ELECTRICAL

  • Connectors

  • (1) RJ-45 port / (1) Euroblock, 2 pins

  • Cable Requirements

  • Cat 5, unshielded twisted-pair (UTP)

  • Maximum Cable Length

  • 328 ft (100 m)

  • Maximum Controller Quantity

  • 16 per ControlSpace network

  • Power Range

  • 15–24 VDC, 300 mA

INDICATORS AND CONTROLS

  • Controls, Front Panel

  • (4) gain/select knobs (rotary/push), (4) bank-switch buttons, (1) master scene/preset recall knob (rotary/push)

  • Display

  • 2-line × 40-character LCD, backlit blue

  • LED Status Indicators

  • (4) volume level LED rings, (4) bank selection LEDs, (1) network LED, (1) network transmit LED, (1) network receive LED

PHYSICAL

  • Colors

  • White

  • Mounting/Rigging Provisions

  • 5-gang electrical box (North America)

  • Product Dimensions (H×W×D)

  • 5.4 in × 11.1 in × 2.0 in (137 mm × 282 mm × 51 mm)

Product codes

  • 41760
  • ControlCenter CC-64, white

Included in Packaging

  • (1) Cat 5 power adapter

  • (1) ControlSpace CC-64

  • (1) installation guide

User Documentation
Mechanical Files
Compliance Documents
