VOGELS TVM 7675 PRO 77"
VOGELS TVM 7675 PRO 77"
VOGELS TVM 7675 PRO 77"
Κατασκευαστής: Vogels
Διαθεσιμότητα: Κατόπιν Παραγγελίας
€1.240,00

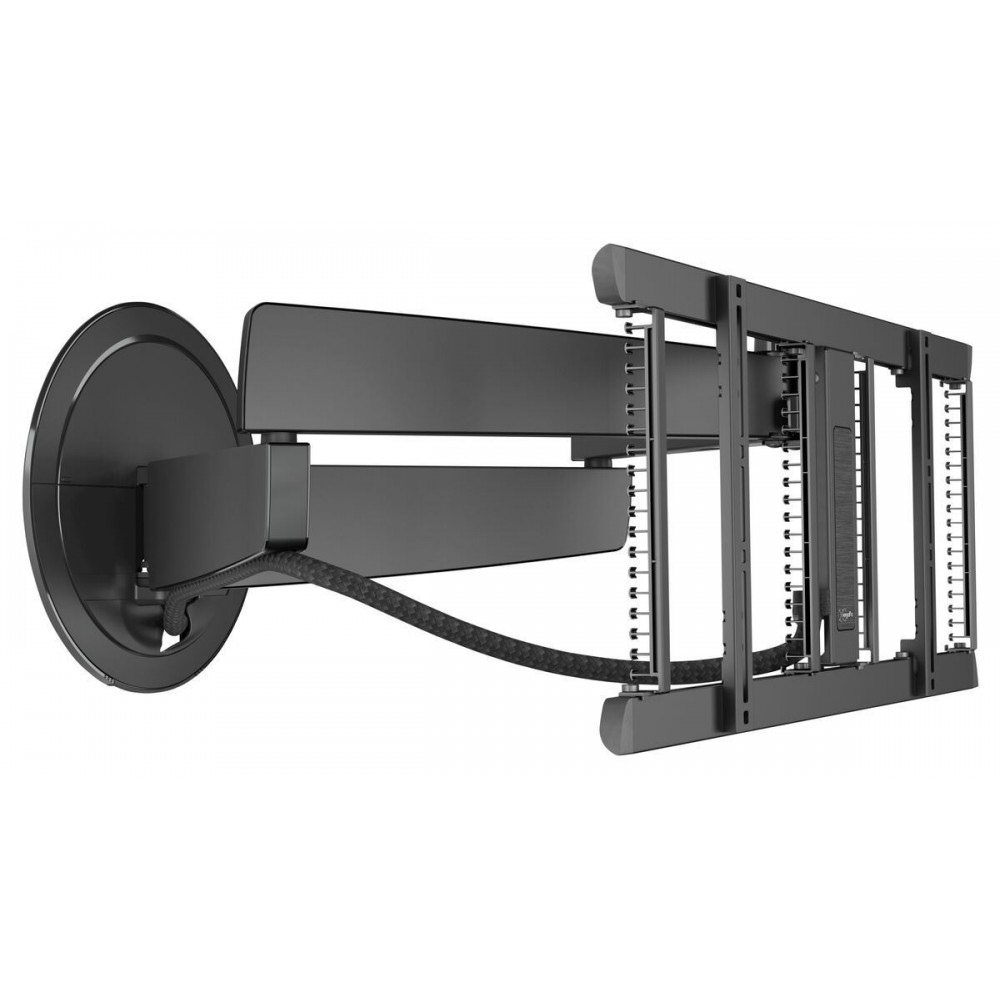

Motorized TV Wall Mount

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription
Series
SIGNATURE
Product group
Tv mount turn automatic
Certifications
  • CB
  • CE
  • TÜV
TÜV certified
Yes
Min. screen size (inch)
40
Max. screen size (inch)
77
Hole pattern (VESA)
  • 200 mm x 100 mm
  • 200 mm x 200 mm
  • 200 mm x 300 mm
  • 300 mm x 200 mm
  • 300 mm x 300 mm
  • 400 mm x 200 mm
  • 400 mm x 300 mm
  • 400 mm x 400 mm
  • 600 mm x 200 mm
  • 600 mm x 300 mm
  • 600 mm x 400 mm

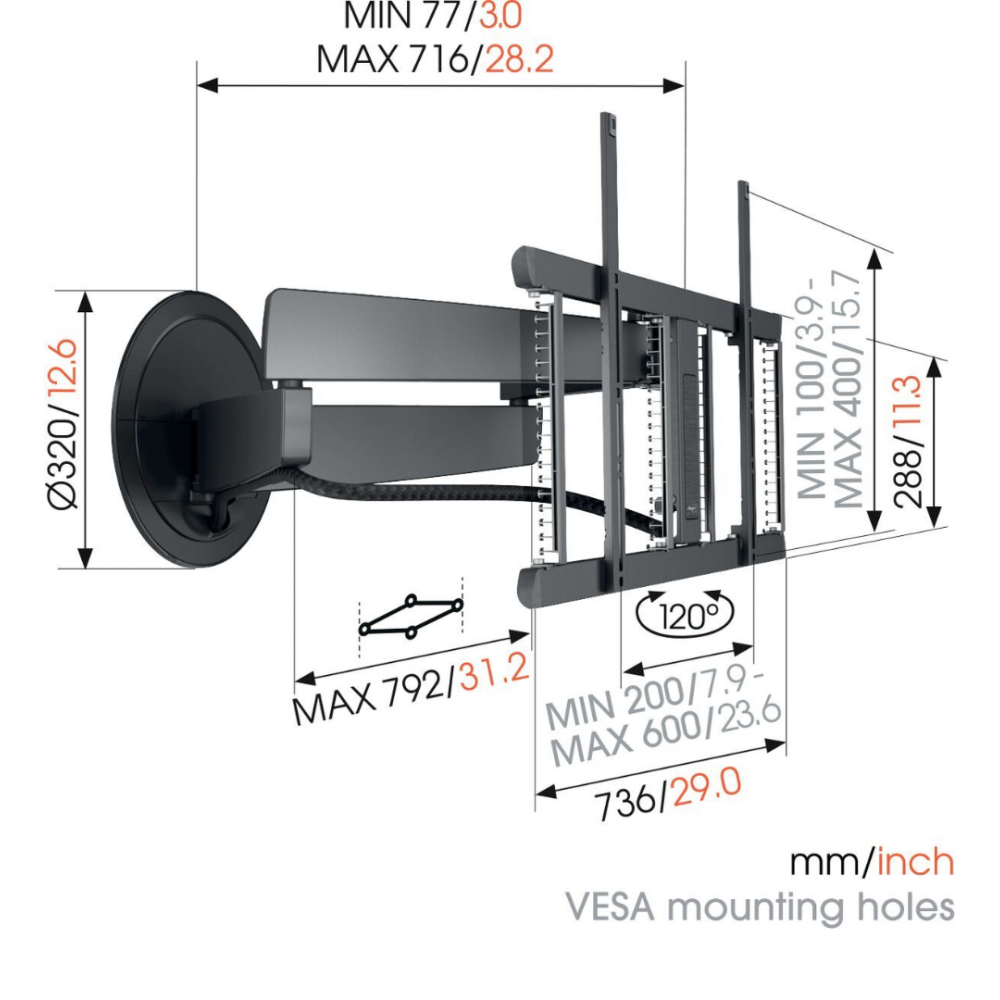

Min. distance to the wall (mm)
77
Min. distance to the wall (inch)
3.03
Max. distance to the wall (mm)
715
Max. weight load (kg)
35
Max. weight load (lbs)
77.16
Turn
Forward and turning motion (up to 120°)
Number of pivot points
4
Colour
Black
What's in the box
  • Wall mount
  • Interface
  • Wall mounting kit with fischer® Duo Power plugs
  • TV fasteners kit
  • Quick Installation Guide
  • DrillRight™ AR app
  • Drilling template
  • Allen key
  • Cable sleeve
  • Infrared remote control
  • AC power adapter
  • HDMI cable - 2M
Cable management
  • Integrated cable management
  • CIS® Cable Inlay System
  • Cable sleeve
App Controlled
Yes
Guarantee on Electrical Parts
2 years
Remote controlled
Yes
Motorized
Yes
Voltage
  • 100-240V
  • 50/60 Hz
Remote control standard
  • RS-232
Min. horizontal hole pattern (mm)
200
Max. horizontal hole pattern (mm)
600
Min. vertical hole pattern (mm)
100
Max. vertical hole pattern (mm)
400
Number of arms
3
