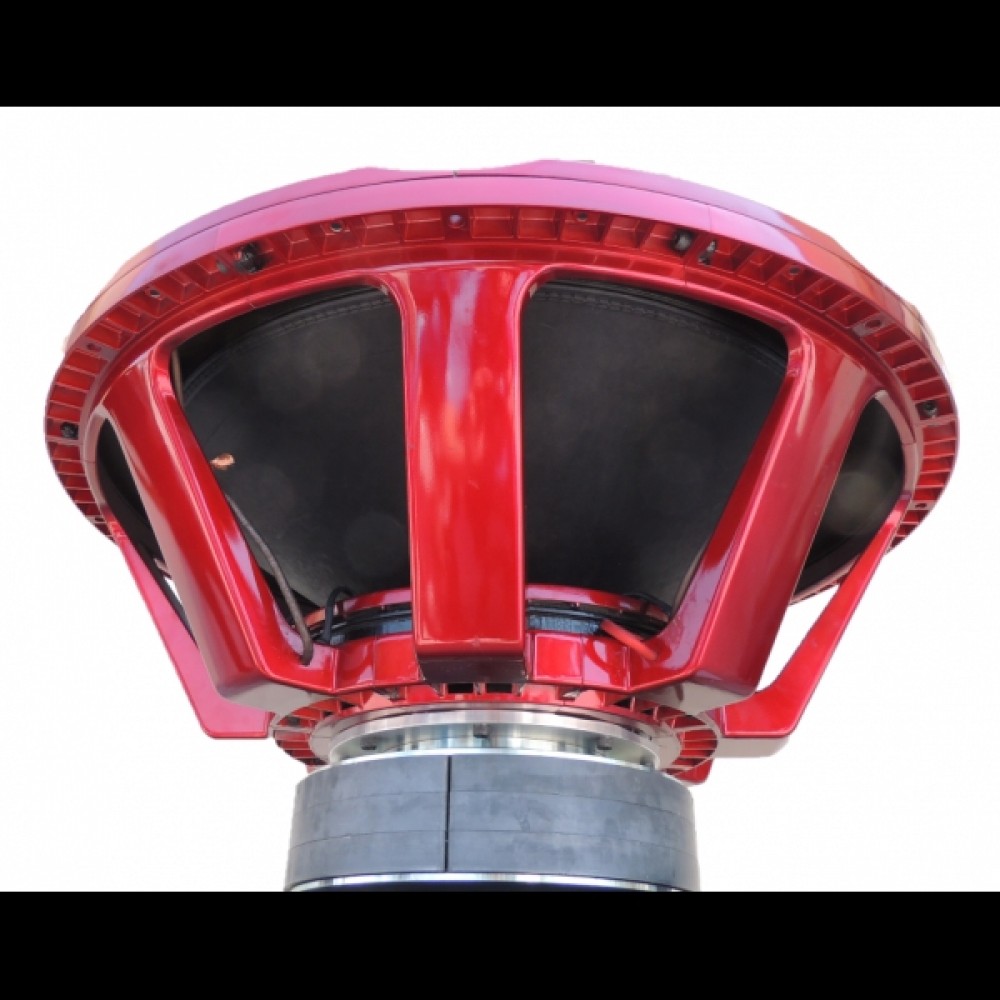

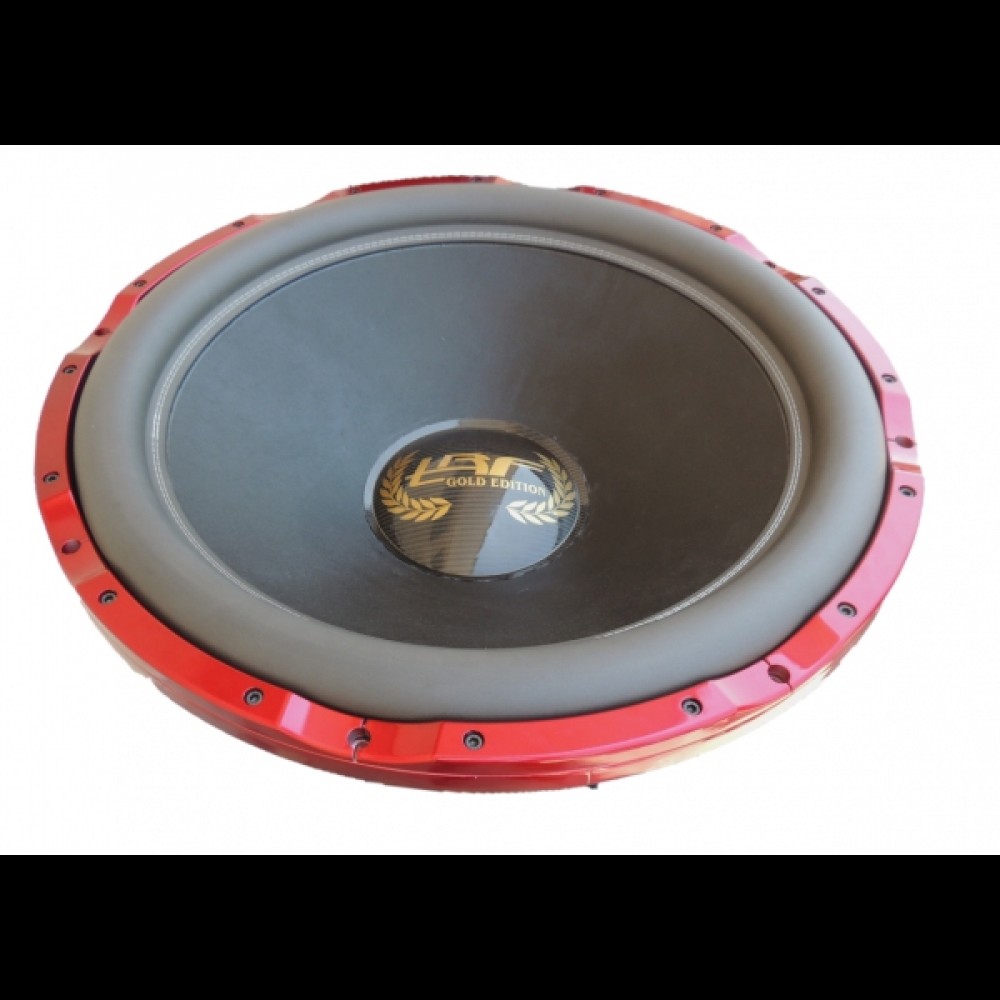

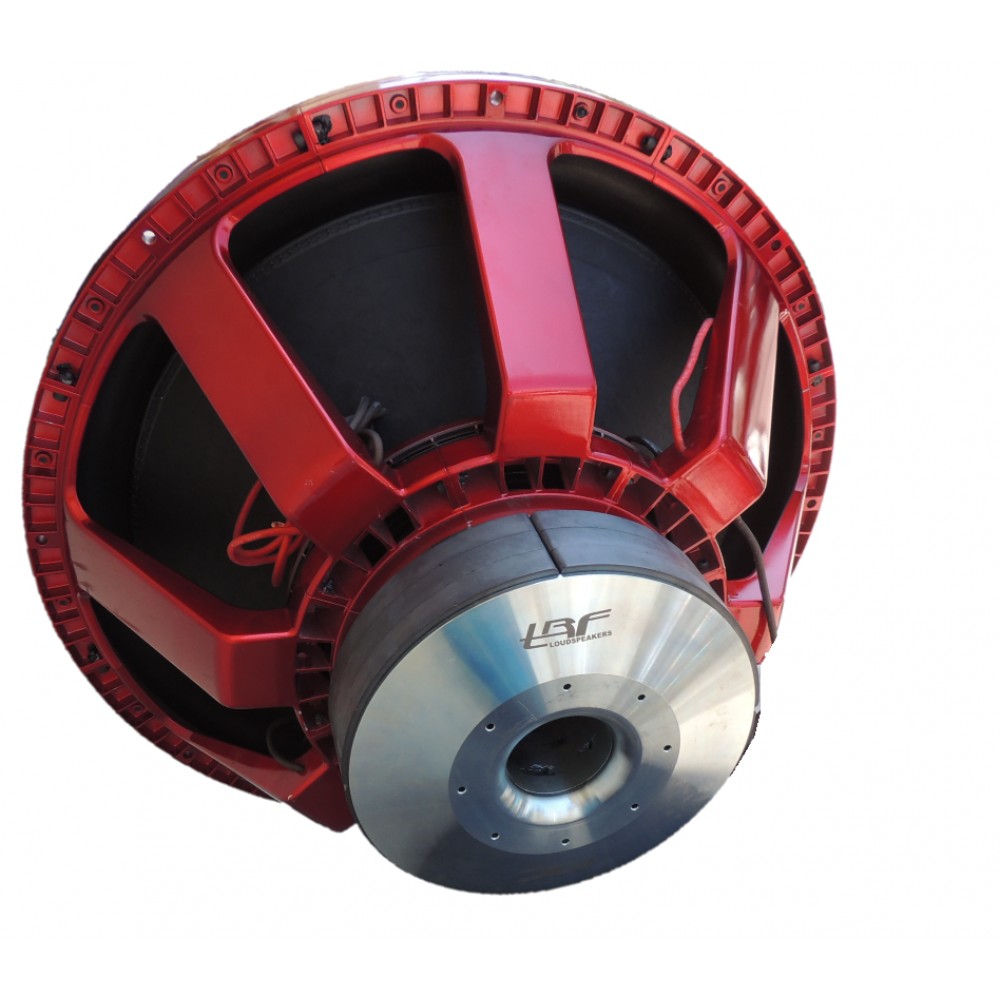

TRF SW32200PC D0.5
TRF SW32200PC D0.5
TRF SW32200PC D0.5
TRF SW32200PC D0.5
Κατασκευαστής: Trf
Διαθεσιμότητα: Παραλαβή 1 εως 3 ημέρες
€2.750,00

TRF SW32200PC D0.5

MODEL:TRF SPL SW32200PC D0.5

Size: 33nch

Cone: Competition Grade paper

Voice coil made : MADE IN USA

Voice coil dimension : 6.0inch

Voice coil layer: 8layer

Dust cap : Carbon FROM MADE IN EUROPE

Spider dimension : 6''ID / 15''OD

RMS Power: 13.000 - 20.000wrms

MAX Watt: 40.000wmax

Magnet dimension:Φ330*25mm X 3PCS

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription

SPECIFICATION:

MODEL:TRF SPL SW32200PC D0.5

Size: 33nch

Cone: Competition Grade paper

Surround material: Foam

Voice coil made : MADE IN USA

Voice coil dimension : 6.0inch

Voice coil layer: 8layer

Dust cap : Carbon FROM MADE IN EUROPE

Nominal impedance:dual 0.5ohm

Voice coil wire: aluminium

Spider dimension : 6''ID / 15''OD

Spider material : NOMEX

Spider layers : 6pcs x 2layers

RMS Power: 13.000 - 20.000wrms

MAX Watt: 40.000wmax

Sensitivity: 96dB

Vas: 650 L

Resonance frequency(fs): 20Hz

Mechanical Q factor(Qms):

Electrical Q factor(Qes):

Total Q factor:(Qts):

Xmax: 60mm

Force factor: N/A

Magnet Weight: 69kg

Net weight: 75kg

Basket: Die cast Alumium

Magnet: Ferrite

Magnet dimension:Φ330*25mm X 3PCS

1=Outer Dimension: 840mm - 33"

2=Mounting Depth: 450mm

3=Magnet Dimension: 330mm

4=Mounting Hole Dimension: 770mm
