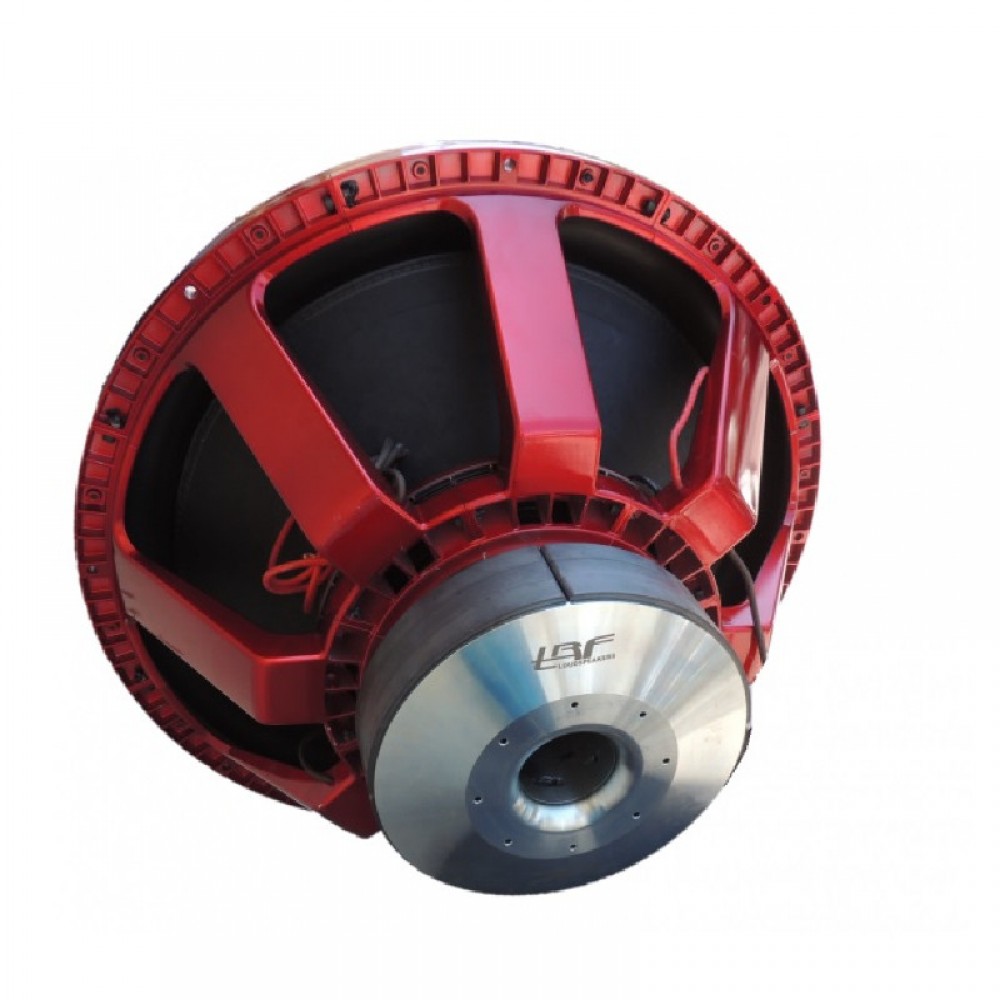

TRF SPL SW32200CC D0.5
TRF SPL SW32200CC D0.5
Κατασκευαστής: Trf
Διαθεσιμότητα: Παραλαβή 1 εως 3 ημέρες
€3.050,00

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription
  • MODEL:TRF SPL SW33200CC D0.5
  • Size: 33nch
  • Cone: Carbon FROM MADE IN EUROPE
  • Surround material: Foam
  • Voice coil made : MADE IN USA
  • Voice coil dimension : 6.0inch
  • Voice coil layer: 8layer
  • Dust cap : Carbon FROM MADE IN EUROPE
  • Nominal impedance:dual 0.5ohm
  • Voice coil wire:aluminium
  • Spider dimension : 6''ID / 15''OD
  • Spider material : NOMEX
  • Spider layers :6pcs x 2layers
  • RMS Power: 13.000 - 20.000wrms
  • RMS Program: 48.000wrms
  • MAX Watt: 40.000wmax
  • Sensitivity: 96dB
  • Vas: 650 L
  • Resonance frequency(fs): 20Hz
  • Mechanical Q factor(Qms):
  • Electrical Q factor(Qes):
  • Total Q factor:(Qts):
  • Xmax: 60mm
  • Force factor: N/A
  • Magnet Weight: 69kg
  • Net weight: 75kg
  • Basket:Die cast Alumium
  • Magnet: Ferrite
  • Magnet dimension:Φ330*25mm X 3PCS
  • 1=Outer Dimension: 840mm - 33"
  • 2=Mounting Depth: 450mm
  • 3=Magnet Dimension: 330mm
  • 4=Mounting Hole Dimension:770mm
