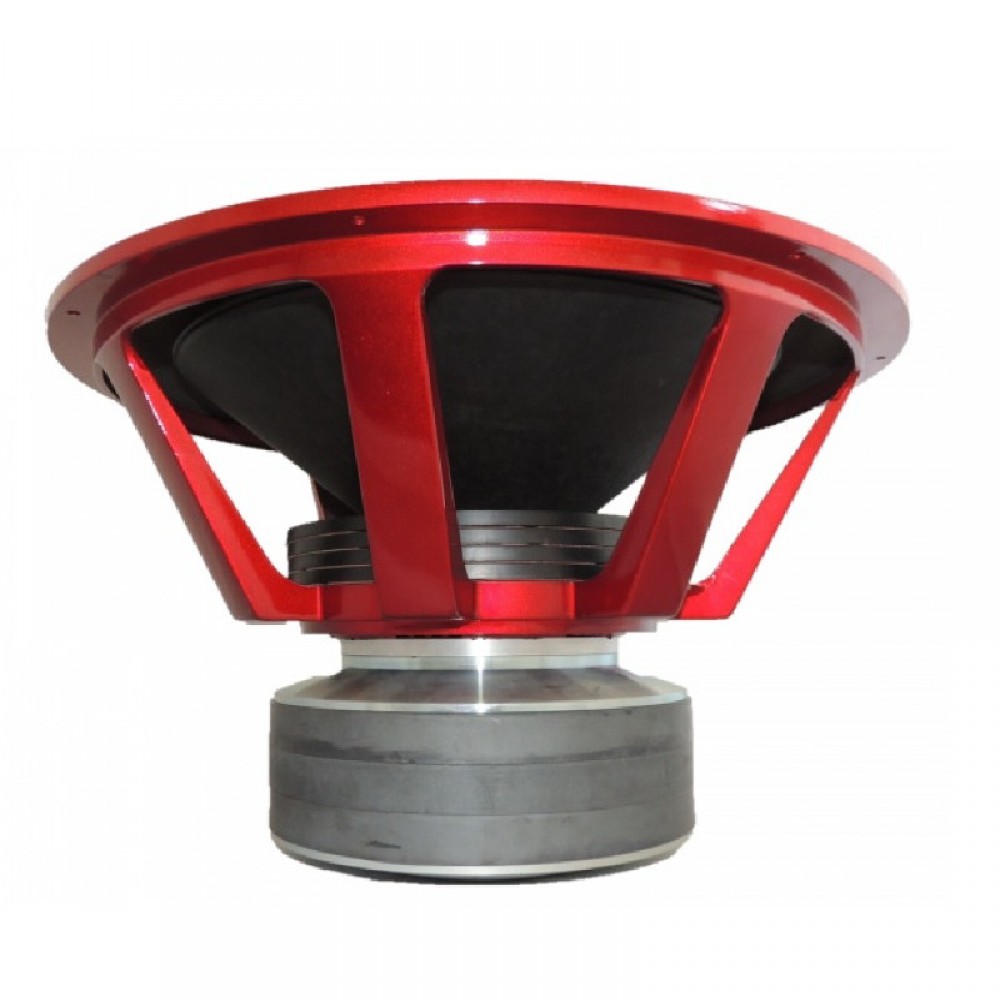

TRF SPL SW2165CC D0.7
TRF SPL SW2165CC D0.7
Κατασκευαστής: Trf
Διαθεσιμότητα: Παραλαβή 1 εως 3 ημέρες
€1.700,00

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription

SPECIFICATION:

  • MODEL:TRF SPL SW2165CC D0.7
  • Size: 21nch
  • Cone: Carbon FROM MADE IN EUROPE
  • Surround material: Foam
  • Voice coil made : MADE IN USA or MADE IN GREECE
  • Voice coil dimension : 4.0inch
  • Voice coil layer: 8layer
  • Dust cap : Carbon FROM MADE IN EUROPE
  • Nominal impedance:dual 0.7ohm
  • Voice coil wire:aluminium
  • Spider dimension : 4''ID / 10''OD
  • Spider material : NOMEX
  • Spider layers :5pcs x 2layers
  • RMS Power: 6.500wrms
  • RMS Program: 18.000wrms
  • MAX Watt: 12.000wmax
  • Sensitivity: 94.5dB
  • Vas: 250 L
  • Resonance frequency(fs): 35Hz
  • Frequency range:35-100Hz
  • Mechanical Q factor(Qms):
  • Electrical Q factor(Qes):
  • Total Q factor:(Qts):
  • Xmax: 40mm
  • Force factor: N/A
  • Net weight: 46kg
  • Basket:Die cast Alumium
  • Magnet: Ferrite
  • Magnet:Ferrite ''high performance magnet''
  • Magnet dimension:Φ280*25mm X 3PCS
  • 1=Outer Dimension: 550mm
  • 2=Mounting Depth: 330mm
  • 3=Magnet Dimension: 280mm
  • 4=Mounting Hole Dimension:500mm
