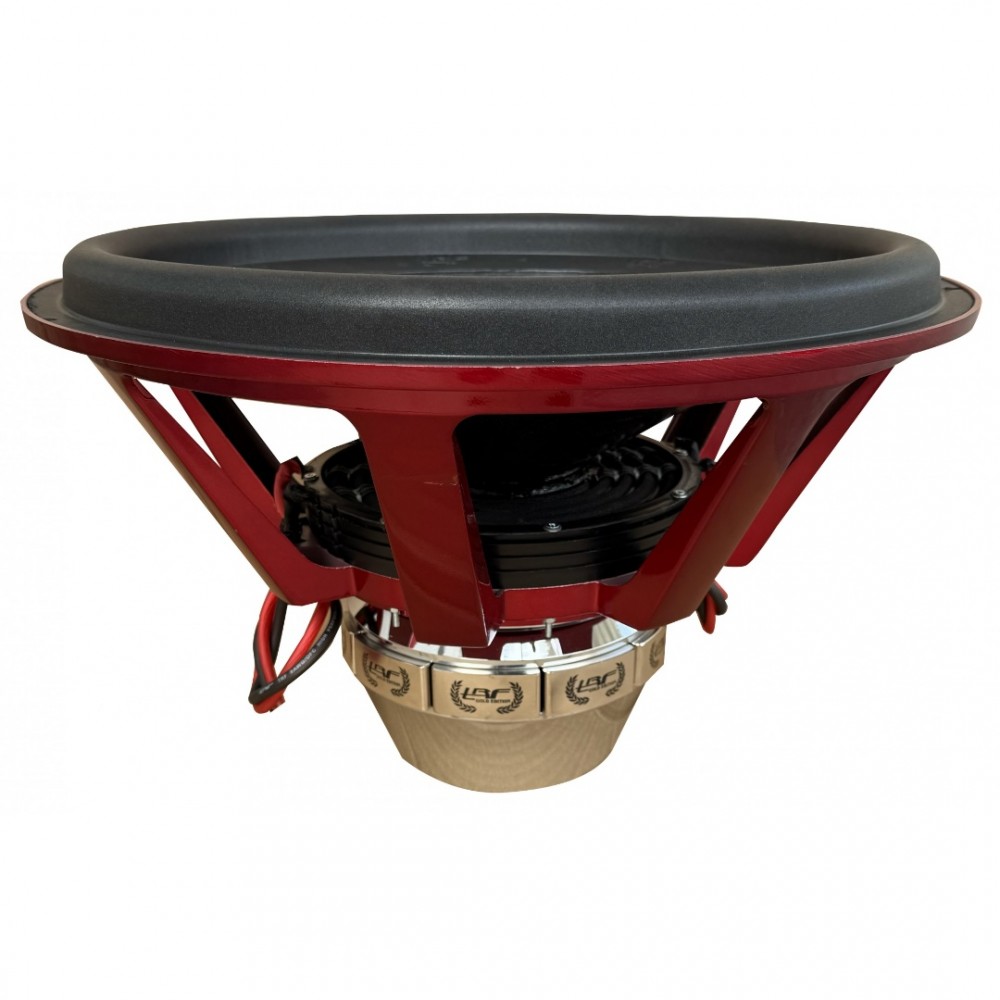

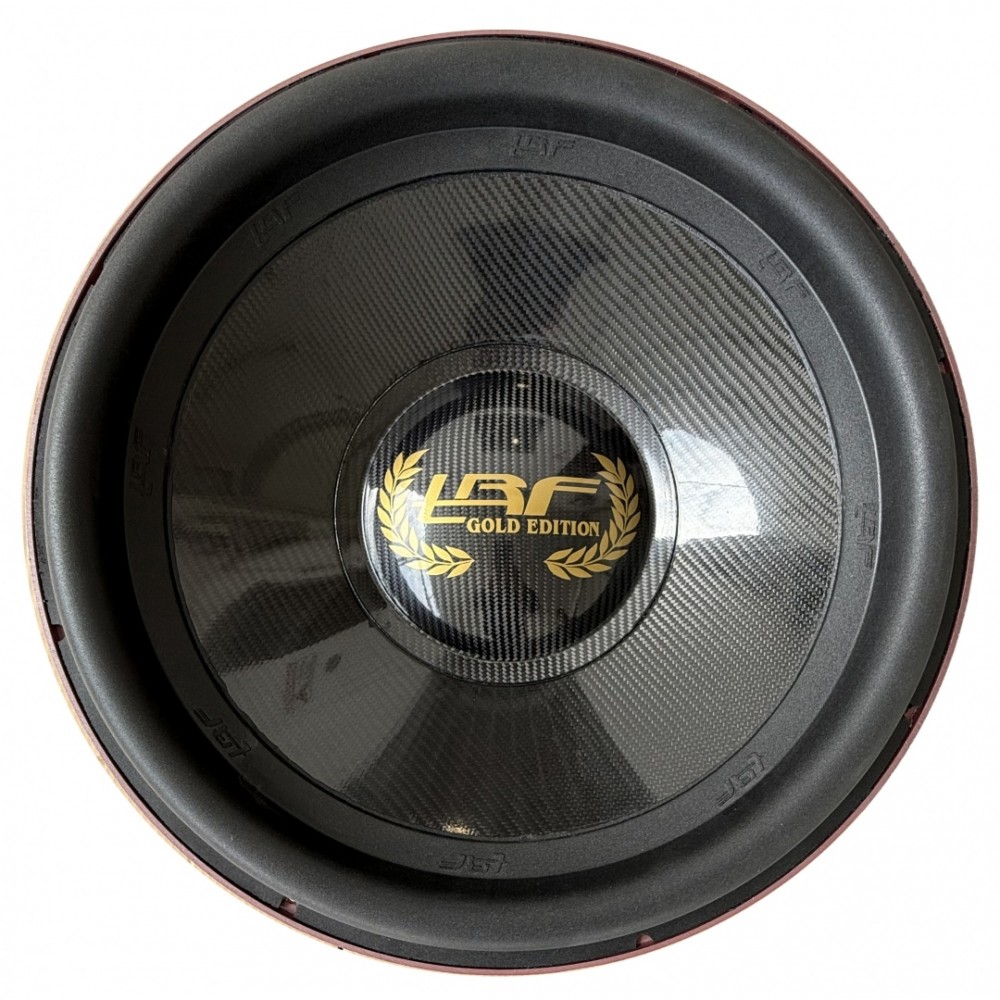

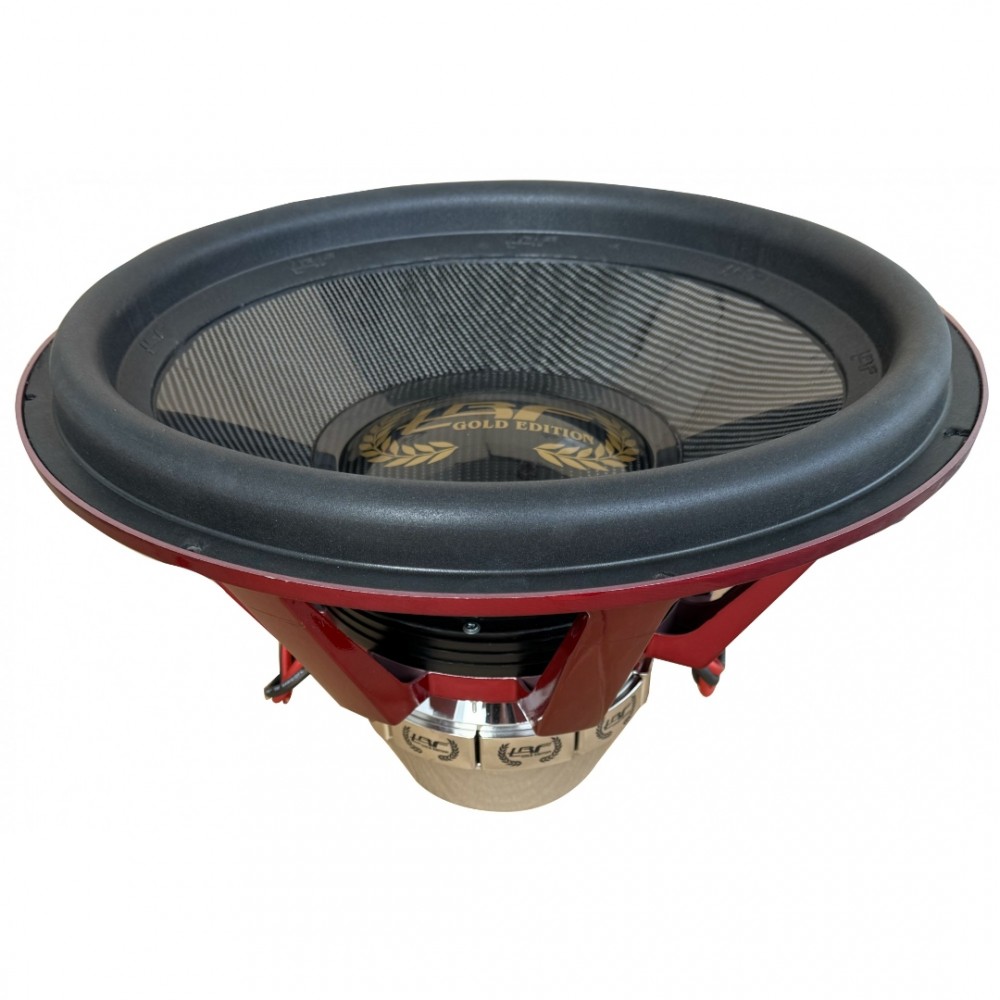

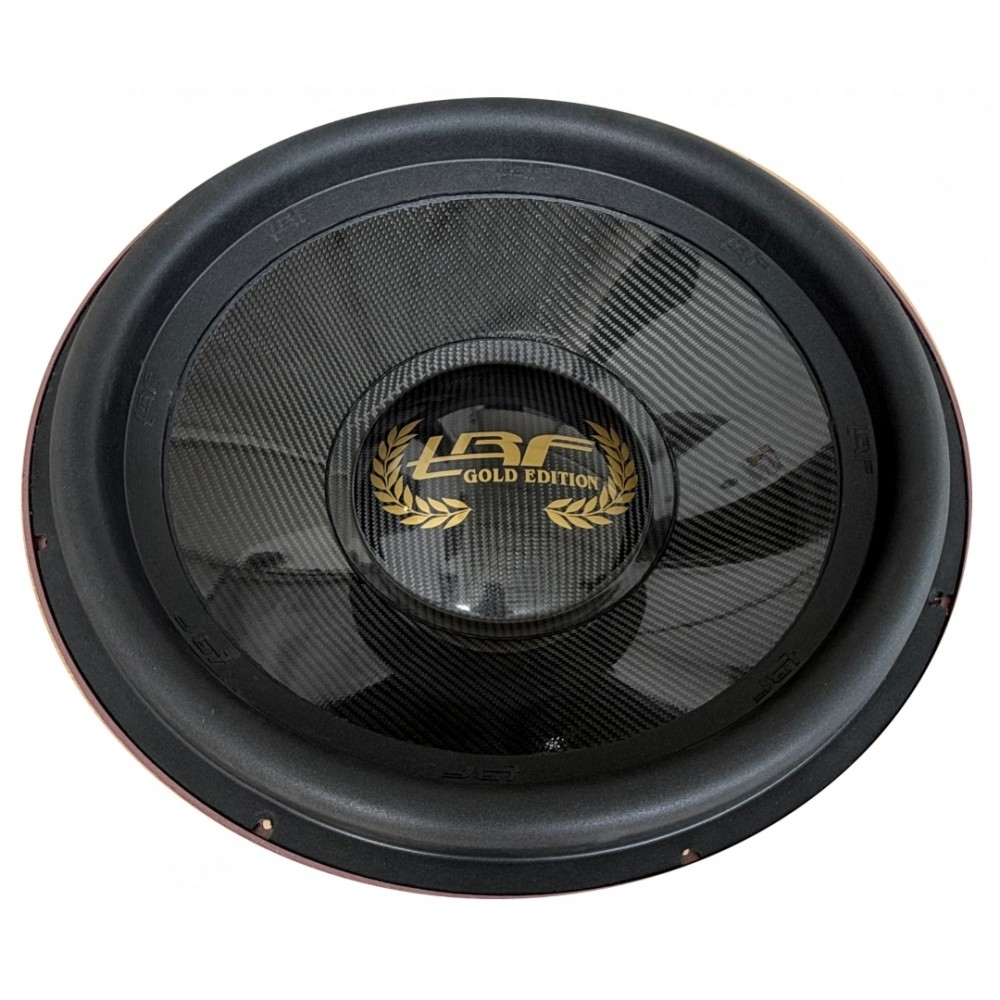

TRF SPL SW2140NDGE D0.5
TRF SPL SW2140NDGE D0.5
TRF SPL SW2140NDGE D0.5
TRF SPL SW2140NDGE D0.5
TRF SPL SW2140NDGE D0.5
Κατασκευαστής: Trf
Διαθεσιμότητα: Παραλαβή 1 εως 3 ημέρες
€3.150,00

MODEL:TRF
SPL SW2140ND D0.5



  • Size: 21nch
  • Cone:
    Carbon FROM MADE IN EUROPE
  • Surround
    material:     Foam
  • Voice coil
    made :     MADE IN USA or MADE IN GREECE
  • Voice coil dimension : 3.0inch
  • Voice coil
    layer:     8layer
  • Dust cap :
    Carbon FROM MADE IN EUROPE
  • Nominal
    impedance:     dual 0.5ohm
  • RMS Power:
    4.000wrms
  • RMS
    Program:     12.000wrms
  • MAX Watt:
    8.000wmax


  •













































    Sensitivity: 96dB

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription

SPECIFICATION:



  • MODEL: TRF SPL SW2140NDGE D0.5
  • Size: 21nch
  • Cone: Carbon FROM MADE IN EUROPE
  • Surround material: Foam
  • Voice coil made : MADE IN USA or MADE IN GREECE
  • Voice coil dimension : 3.0inch
  • Voice coil layer: 8layer
  • Dust cap : Carbon FROM MADE IN EUROPE
  • Nominal impedance: dual 0.5ohm
  • Voice coil wire: aluminium
  • Spider dimension : 3''ID / 10''OD
  • Spider material : NOMEX
  • Spider layers : 5pcs x 2layers
  • RMS Power: 4.000wrms
  • RMS Program: 12.000wrms
  • MAX Watt: 8.000wmax
  • Sensitivity: 96dB
  • Vas: 250 L
  • Resonance frequency(fs): 31Hz
  • Frequency range: 31-100Hz
  • Mechanical Q factor(Qms):
  • Electrical Q factor(Qes):
  • Total Q factor:(Qts):
  • Xmax: 40mm
  • Force factor: N/A
  • Net weight: 46kg
  • Basket: Die cast Alumium
  • Magnet: NEODYMIUM
  • Magnet: NEODYMIUM ''high performance magnet''
  • Magnet dimension: Φ260*30mm X 1SET
  • 1=Outer Dimension: 550mm
  • 2=Mounting Depth: 330mm
  • 3=Magnet Dimension: 260mm
  • 4=Mounting Hole Dimension: B500mm
