TRF SMD 35000.1D
TRF SMD 35000.1D
TRF SMD 35000.1D
TRF SMD 35000.1D
TRF SMD 35000.1D
Κατασκευαστής: Trf
Διαθεσιμότητα: Παραλαβή 1 εως 3 ημέρες
€2.400,00

TRF SMD 35000.1D

TRF SMD 35000.1D

RMS 1X12000 4ohm
RMS 1X22000 2ohm
RMS 1X38000 1ohm
TEST VOLTAGE % THD:14.4V-10%THD

RMS 1X9000 4ohm
RMS 1X18000 2ohm
RMS 1X32000 1ohm
TEST VOLTAGE & THD:12.6V-10%THD

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription

TRF SMD 35000.1D

RMS 1X12000 4ohm
RMS 1X22000 2ohm
RMS 1X38000 1ohm
TEST VOLTAGE % THD:14.4V-10%THD

RMS 1X9000 4ohm
RMS 1X18000 2ohm
RMS 1X32000 1ohm
TEST VOLTAGE & THD:12.6V-10%THD




Freguncy response: 10Hz-20KHz
Signal to Noise : 100dB <
Damping Factor : 800 <
Working impedance : 1ohm mono
Input Sensitivity : 0.2V to6V
Crossover : 18db oct/ slope
Bandpass Filter:
hi Pass Filter : 15Hz to 80KHz
low Pass Filter : 80Hz to 20KHz
BASS BOOST: 0 to 12 db
BAST BOOST FREQ: 35Hz to 70Hz

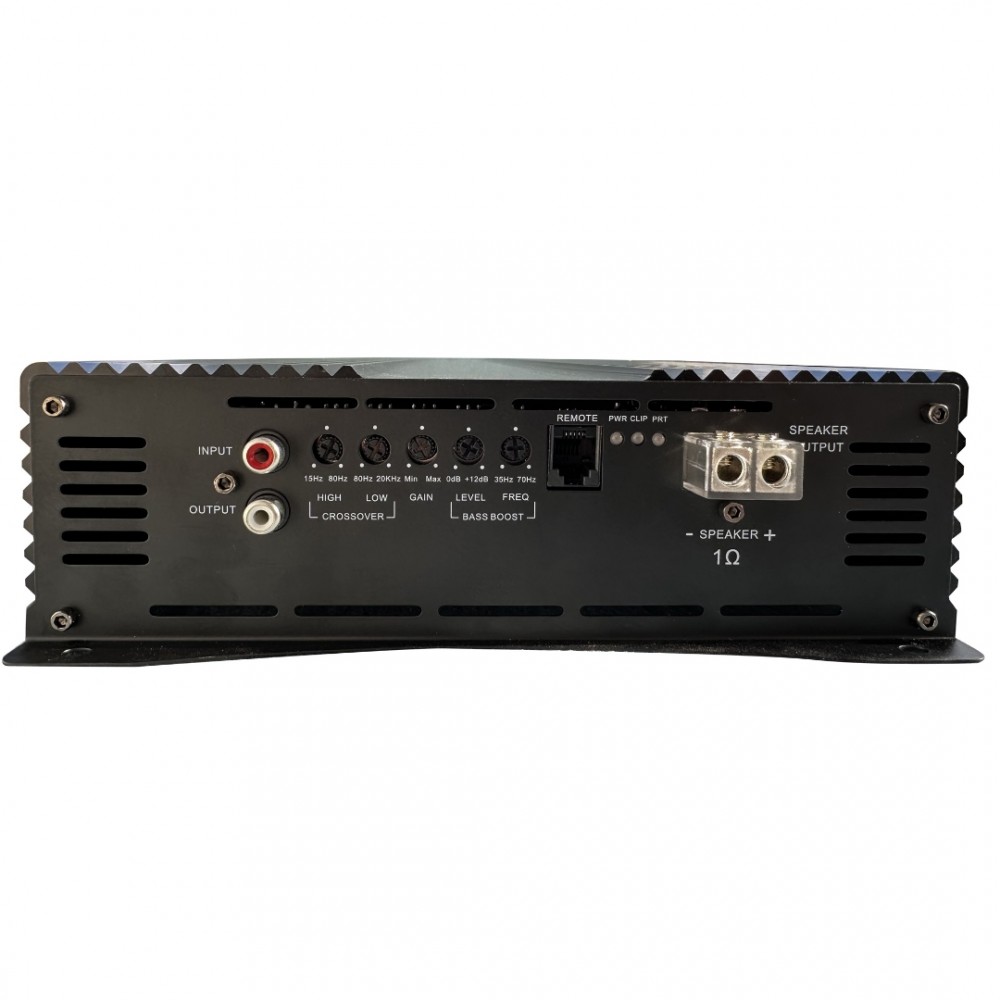

Remote controller CHECK:
VOLTAGE/TEMP - PWR,PRT,CLIP .
1X0 gauge power & speaker terminals

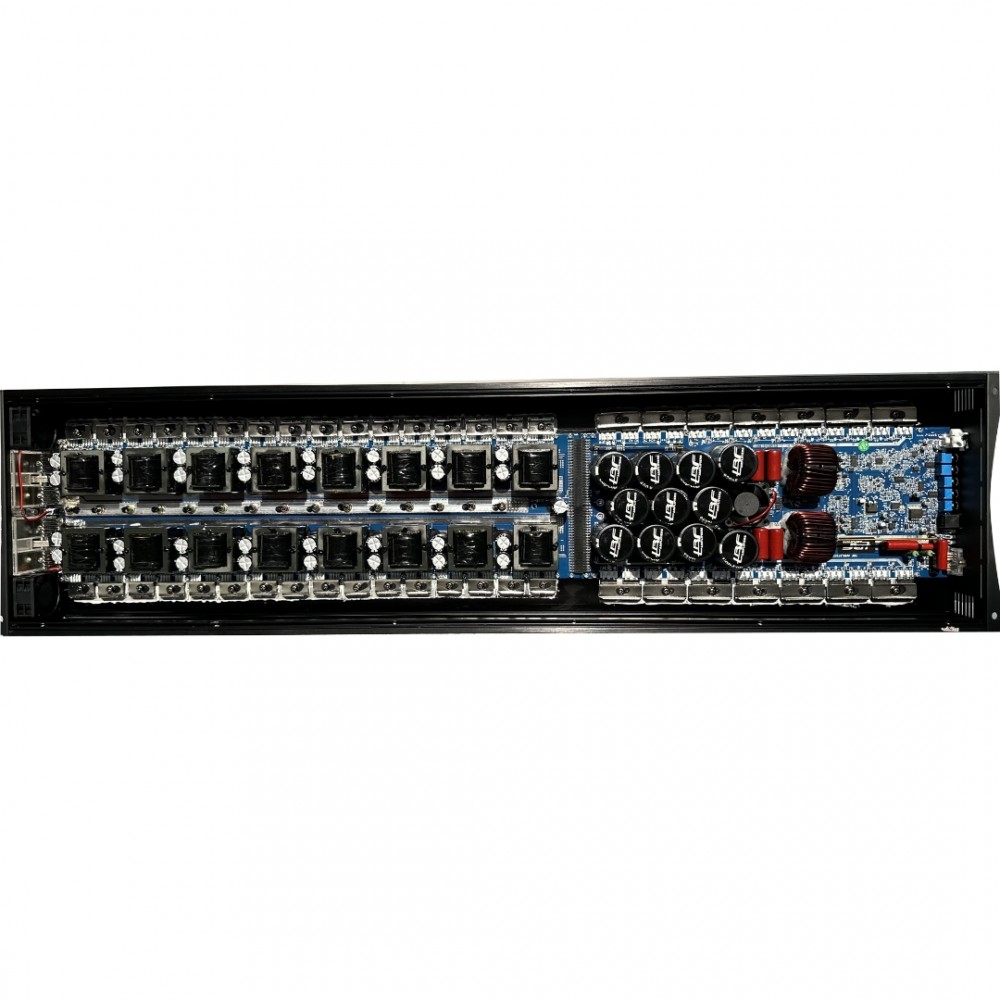

4 oz copper printed circuit board
Heavy-duty heatsink
3way protection : DC offset , Thermal , speaker shot .
BURRBROWN OP AMP IC
4 HAND-WOUND POWER TRANSFORMERS.
Tested Voltage & THD : 14.4V & Less than 1% THD
Working voltage : 8.5V to16V
FUSE RATING : 3300AMPER
Height: 66mm
Width: 225mm
Lenght: 925mm
