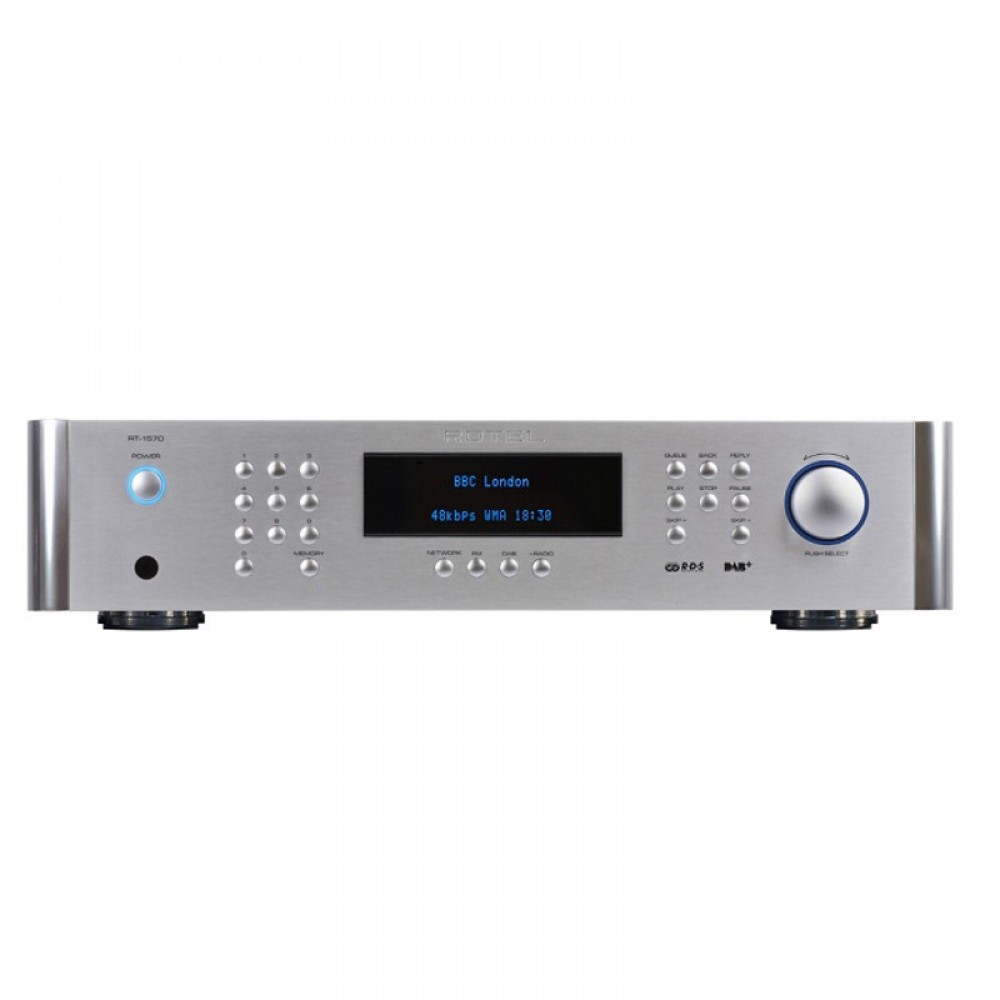

ROTEL RT-1570 SILVER
ROTEL RT-1570 SILVER
ROTEL RT-1570 SILVER
Κατασκευαστής: Rotel
Διαθεσιμότητα: Παράδοση σε 4 - 10 ημέρες
Για καλύτερη τιμή καλέστε στο 2104222000
 €1.200,00
Τηλεχειριζόμενο ραδιόφωνο FM, DAB+, internet radio
DAC 24bit/192kHz, Θύρα RS-232, Wi-Fi antenna, 12V trigger, iOS Control App
ΕίσοδοιEthernet
ΈξοδοιCoaxial, RCA
Διαστάσεις (Πλάτος x Ύψος x Βάθος)430 × 99 × 310 mm
Ύψος πρόσοψης88.1 mm
Απαιτήσεις ισχύος230 V, 50 Hz
Κατανάλωση ενέργειας16 W
Καθαρό βάρος6.33 kg
ΧρώμαSilver/Μαύρο

Υπολογισμός δόσεων

Ποσότητα

Στα Αγαπημένα
Credit module TBI Bank RO 1.0.11
adescription

RT 1570

With features such as a high quality Wolfson DAC, a Rotel custom wound toroidal transformer with independent power supplies for the digital and analog sections, and premium Slit Foil capacitors, the RT-1570 delivers superb audio performance from DAB+, FM, and internet radio broadcasts, as well as music files stored on a local media server.

Silver

DAB+DAB+ tuningICWolfson premium 24-bit/192kHz Digital to Analogue ConverterRDSRDS (Radio Data System) capability for FM broadcasts

iPodiPhone and iPad Remote app availableRemote ControlIncludes remote control



Product Description

The RT-1570 not only offers conventional radio reception for FM and DAB stations (including DAB+ where available), but features internet radio streaming and audio playback from a media server.

Internally the RT-1570 features one of Rotel’s renowned toroid transformers with separate windings for four independent power supplies; two for the DAC circuits and a third for the filter and output stages. The filter/output circuits also include ‘Slit-Foil’ capacitors specifically developed for this model. The fourth power supply supports subsidiary circuits including the CPU and display. All of these circuits feature independent regulation and filtering as befits an audiophile product. The Wolfson DAC offers the advantage of differential outputs to maximise performance, in conjunction with selected components for the signal path, filter circuits and output stages.

As well as receiving FM and DAB (DAB+) stations, the RT-1570 will accept a range of audio codecs (most notably mp3, FLAC and AIFF), with resolution and sampling rates up to 24-bit/96kHz. This versatility means that most internet radio services and very high-resolution audio files (normally stored on a local media server) will be reproduced in their native format and resolution.

The RT-1570 can easily be incorporated into multi room systems via RS232 and controlled with the likes of Crestron or AMX. The ‘Rotel Link’ is a straight forward ‘plug and play’ method of controlling compatible ‘Rotel Link’ products including amplifiers and CD players. The RT-1570 also includes a 12V trigger for simple system on-off control.

Engineered with care.

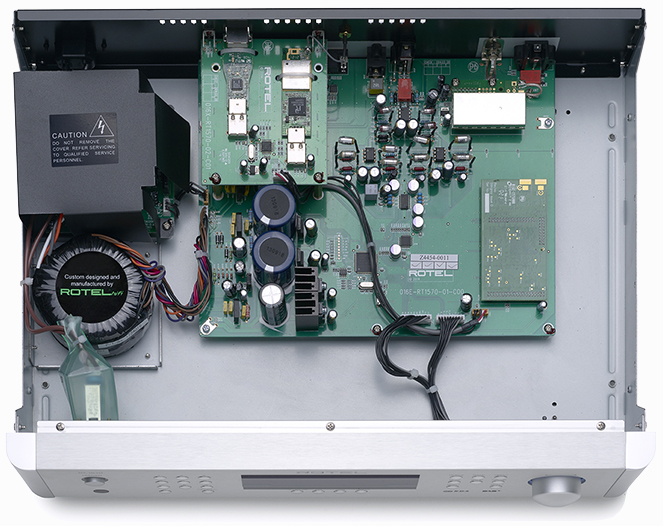

RT-1570 Internal View

Components

Dimensions (W × H × D)
430 × 99 × 310mm
17" × 4" × 12.25"
Front Panel Height
2U / 88.1mm (3.5")
Power Requirements
230V, 50Hz
Power Consumption
16W
Standby Power Consumption
0.5W
Net Weight
6.33kg (14lbs.)
BTU Rating
55 BTU/h
DAB Sensitivity
-80dBm
DAB Tuning Range
Band III (174-240MHz)
DAB Audio Date Rate
224Kbps Max
DAB Frequency Response
20Hz - 20kHz ±0.2dB
DAB Analog Output
2.3V at 0dBfs
DAB Antenna Input
75Ω F Connector
FM Usable Sensitivity
22.2dBf
FM 50dB Quieting Sensitivity
27.2dBf (Mono)
FM Signal to Noise Ratio (at 65dBf)
65dBf (Mono)
60dBf (Stereo)
FM Harmonic Distortion (at 65dBf)
0.2% (Mono)
0.3% (Stereo)
FM Frequency Response
10Hz - 15kHz ±3dB
FM Stereo Separation (100Hz/1kHz)
40dB/30dB
FM Output Level
Line Level: 1V
Digital: 0.7V
FM Antenna Input
75Ω Belling Lee connector
Network Connection
802.11b/g/n
Security
WEP, WPA1 (TKIP), WPA2 (TKIP)
File Formats (UPnP Music Server)
AAC, MP3, WMA, WAV, AIFF, FLAC, ALAC
